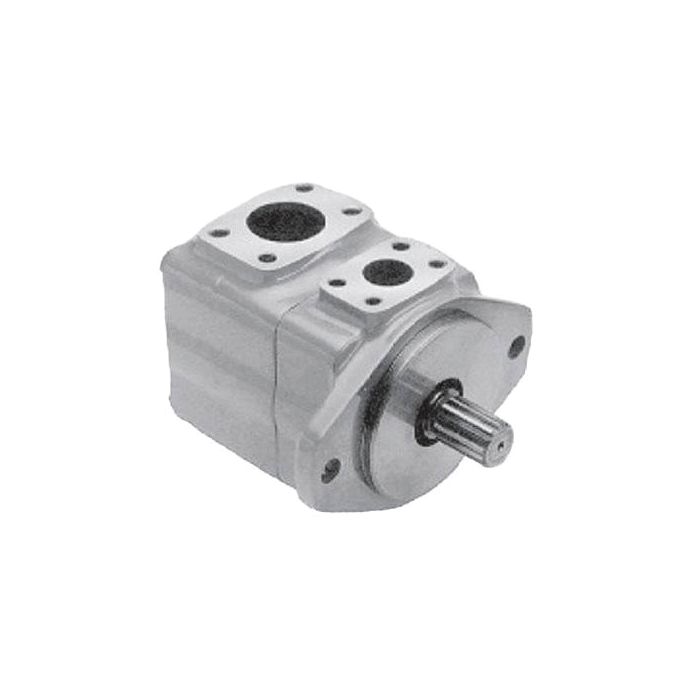

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet in-Line with Outlet, CW Rotation

Description & Features

This 30VQ Series Vane Pump from Eaton Vickers features a 28 ring size and a 13 Tooth SAE B Splined Shaft. Designed for power steering and industrial applications such as small units and presses, this single vane pump delivers outstanding volumetric efficiency and a long operating life.

This Eaton Vickers VQ(H) Series Vane Pump is designed for high-pressure, high-speed applications with a maximum pressure of 2000 PSI and a rated speed of 2000 RPM. It features clockwise rotation and an in-line outlet port location.

SKU: 421492-3

Supplier Part Number (MPN): 421492-3

Alternate Part Numbers: 30VQ28A11C20, C1EN38

Specifications

Brand Vickers by Danfoss	Cartridge Type Industry-First Intra-Vane	Design Code 20	Dimensions 11.115 in L x 8.38 in W x 6.155 in H	Displacement io 5.50	Drive Shaft Type 13 Tooth SAE B Splined	Housing Material Iron	Inlet Type Flanged	Model 30VQ	Mounting Type Flanged	Outlet Type Flanged	Port Location In-Line with Outlet	Rotation Direction Clockwise	Seal Material Nitrile	Series 30VQ Series	Vane Type Fixed Displacement

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
30VQ24A-1B20 30VQ Series Vane Pump	418616-2	7/8 Straight Keyed	4.72	24	36.78	90° CW from Outlet	CW	2000	2000 RPM
30VQ24A-1C20 30VQ Series Vane Pump	418616-3	7/8 Straight Keyed	4.72	24	36.78	in-Line with Outlet	CW	2000	2000 RPM
30VQ24A-1D20 30VQ Series Vane Pump	418616-4	7/8 Straight Keyed	4.72	24	36.78	90° CCW from Outlet	CW	2000	2000 RPM
30VQ24A-1A20-L 30VQ Series Vane Pump	418616-5	7/8 Straight Keyed	4.72	24	36.78	Opposite Outlet	CCW	2000	2000 RPM
30VQ24A-1C20-L 30VQ Series Vane Pump	418616-7	7/8 Straight Keyed	4.72	24	36.78	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-1B20 30VQ Series Vane Pump	421490-2	7/8 Straight Keyed	5.5	28	42.85	90° CW from Outlet	CW	2000	2000 RPM
30VQ28A-1C20 30VQ Series Vane Pump	421490-3	7/8 Straight Keyed	5.5	28	42.85	in-Line with Outlet	CW	2000	2000 RPM
30VQ28A-1D20 30VQ Series Vane Pump	421490-4	7/8 Straight Keyed	5.5	28	42.85	90° CCW from Outlet	CW	2000	2000 RPM
30VQ28A-1A20-L 30VQ Series Vane Pump	421490-5	7/8 Straight Keyed	5.5	28	42.85	Opposite Outlet	CCW	2000	2000 RPM
30VQ28A-1C20-L 30VQ Series Vane Pump	421490-7	7/8 Straight Keyed	5.5	28	42.85	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-1D20-L 30VQ Series Vane Pump	421490-8	7/8 Straight Keyed	5.5	28	42.85	90° CCW from Outlet	CCW	2000	2000 RPM
30VQ28A-11B20 30VQ Series Vane Pump	421492-2	13 Tooth SAE B Splined	5.5	28	42.85	90° CW from Outlet	CW	2000	2000 RPM
30VQ28A-11D20 30VQ Series Vane Pump	421492-4	13 Tooth SAE B Splined	5.5	28	42.85	90° CCW from Outlet	CW	2000	2000 RPM
30VQ28A-11A20-L 30VQ Series Vane Pump	421492-5	13 Tooth SAE B Splined	5.5	28	42.85	Opposite Outlet	CCW	2000	2000 RPM
30VQ28A-11C20-L 30VQ Series Vane Pump	421492-7	13 Tooth SAE B Splined	5.5	28	42.85	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-11D20-L 30VQ Series Vane Pump	421492-8	13 Tooth SAE B Splined	5.5	28	42.85	90° CCW from Outlet	CCW	2000	2000 RPM
30VQ24A-1A20 30VQ Series Vane Pump	418616-1	7/8 Straight Keyed	4.72	24	36.78	Opposite Outlet	CW	2000	2000 RPM
30VQ28A-1A20 30VQ Series Vane Pump	421490-1	7/8 Straight Keyed	5.5	28	42.85	Opposite Outlet	CW	2000	2000 RPM
30VQ28A-11A20 30VQ Series Vane Pump	421492-1	13 Tooth SAE B Splined	5.5	28	42.85	Opposite Outlet	CW	2000	2000 RPM
