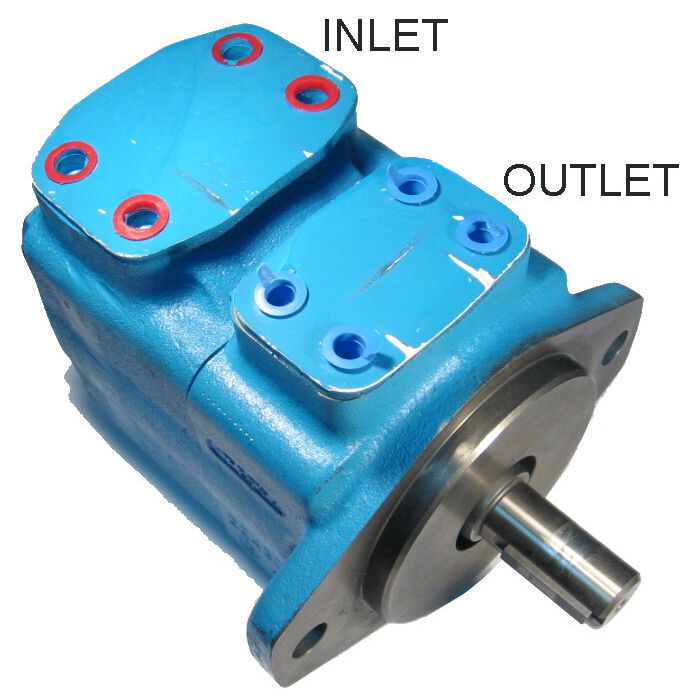

30VQ Series Vane Pump, 28 Ring Size, 13 Tooth SAE B Splined Shaft, Outlet Opposite Outlet, CCW Rotation

Description & Features

Engineered for high-performance hydraulic systems, the Eaton Vickers 30VQ Series Vane Pump is a robust and reliable choice for demanding industrial applications. Featuring a 28 ring size and a 13 tooth SAE B splined shaft, this pump offers precise fluid displacement with a rated flow of 42.85 GPM. Its counter-clockwise (CCW) rotation and outlet opposite to the inlet enhance versatility and integration into existing setups.

With a speed rating of 2000 RPM and a maximum pressure of 2000 PSI, this vane pump is designed to handle intense pressure conditions efficiently. The Eaton Vickers 30VQ Series is synonymous with durability and efficiency in hydraulic components, making it ideal for rigorous industrial environments. As part of the Danfoss Power Solutions, it benefits from innovative engineering and high-quality standards.

SKU: 421492-5

Supplier Part Number (MPN): 421492-5

Specifications

Displacement 5.50	Displacement 5.5	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Maximum Pressure 2000	Maximum Pressure 2000	Port Location Opposite Outlet	Rated Flow 42.85	Rated Flow 42.85	Ring Size 28	Ring Size 28	Rotation CCW	Shaft 13 Tooth SAE B Splined	Shaft 13 Tooth SAE B Splined	Speed Rating 2000 RPM	Speed Rating 2000 Rpm	Supplier Part Number 421492-5	Alternate Part Numbers Alternate Part Number MINO-00900X78785	Product Weight 34.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
30VQ24A-1B20 30VQ Series Vane Pump	418616-2	7/8 Straight Keyed	4.72	24	36.78	90° CW from Outlet	CW	2000	2000 RPM
30VQ24A-1C20 30VQ Series Vane Pump	418616-3	7/8 Straight Keyed	4.72	24	36.78	in-Line with Outlet	CW	2000	2000 RPM
30VQ24A-1D20 30VQ Series Vane Pump	418616-4	7/8 Straight Keyed	4.72	24	36.78	90° CCW from Outlet	CW	2000	2000 RPM
30VQ24A-1A20-L 30VQ Series Vane Pump	418616-5	7/8 Straight Keyed	4.72	24	36.78	Opposite Outlet	CCW	2000	2000 RPM
30VQ24A-1C20-L 30VQ Series Vane Pump	418616-7	7/8 Straight Keyed	4.72	24	36.78	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-1B20 30VQ Series Vane Pump	421490-2	7/8 Straight Keyed	5.5	28	42.85	90° CW from Outlet	CW	2000	2000 RPM
30VQ28A-1C20 30VQ Series Vane Pump	421490-3	7/8 Straight Keyed	5.5	28	42.85	in-Line with Outlet	CW	2000	2000 RPM
30VQ28A-1D20 30VQ Series Vane Pump	421490-4	7/8 Straight Keyed	5.5	28	42.85	90° CCW from Outlet	CW	2000	2000 RPM
30VQ28A-1A20-L 30VQ Series Vane Pump	421490-5	7/8 Straight Keyed	5.5	28	42.85	Opposite Outlet	CCW	2000	2000 RPM
30VQ28A-1C20-L 30VQ Series Vane Pump	421490-7	7/8 Straight Keyed	5.5	28	42.85	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-1D20-L 30VQ Series Vane Pump	421490-8	7/8 Straight Keyed	5.5	28	42.85	90° CCW from Outlet	CCW	2000	2000 RPM
30VQ28A-11B20 30VQ Series Vane Pump	421492-2	13 Tooth SAE B Splined	5.5	28	42.85	90° CW from Outlet	CW	2000	2000 RPM
30VQ28A-11C20 30VQ Series Vane Pump	421492-3	13 Tooth SAE B Splined	5.5	28	42.85	in-Line with Outlet	CW	2000	2000 RPM
30VQ28A-11D20 30VQ Series Vane Pump	421492-4	13 Tooth SAE B Splined	5.5	28	42.85	90° CCW from Outlet	CW	2000	2000 RPM
30VQ28A-11A20-L 30VQ Series Vane Pump	421492-5	13 Tooth SAE B Splined	5.5	28	42.85	Opposite Outlet	CCW	2000	2000 RPM
30VQ28A-11C20-L 30VQ Series Vane Pump	421492-7	13 Tooth SAE B Splined	5.5	28	42.85	in-Line with Outlet	CCW	2000	2000 RPM
30VQ28A-11D20-L 30VQ Series Vane Pump	421492-8	13 Tooth SAE B Splined	5.5	28	42.85	90° CCW from Outlet	CCW	2000	2000 RPM
30VQ24A-1A20 30VQ Series Vane Pump	418616-1	7/8 Straight Keyed	4.72	24	36.78	Opposite Outlet	CW	2000	2000 RPM
30VQ28A-1A20 30VQ Series Vane Pump	421490-1	7/8 Straight Keyed	5.5	28	42.85	Opposite Outlet	CW	2000	2000 RPM
30VQ28A-11A20 30VQ Series Vane Pump	421492-1	13 Tooth SAE B Splined	5.5	28	42.85	Opposite Outlet	CW	2000	2000 RPM

Product Questions & Answers (2)

Question by: Jimmy W on Feb 8, 2026, 5:52 PM

got a pump tagged 30VQ28A-11A20-L. is this the same one yall are selling?

Answer by: Customer Support on Feb 10, 2026, 6:29 AM

Match-up is by the model number. This pump is Eaton Vickers model 30VQ28A-11A20-L, also shown as Vickers 30VQ28A 11A20 LH, with a 28 ring size and a 13 tooth SAE B splined shaft.

Question by: Duane F on Aug 20, 2025, 11:24 AM

Is this the right pump if my old one says 30VQ28A on it?

Answer by: Customer Support on Aug 21, 2025, 1:48 PM

This 30VQ Series vane pump has a 28 ring size, which lines up with the 30VQ28A part number you mentioned. Double-check that the shaft (13 Tooth SAE B Splined) and rotation (CCW) also match your requirements.
