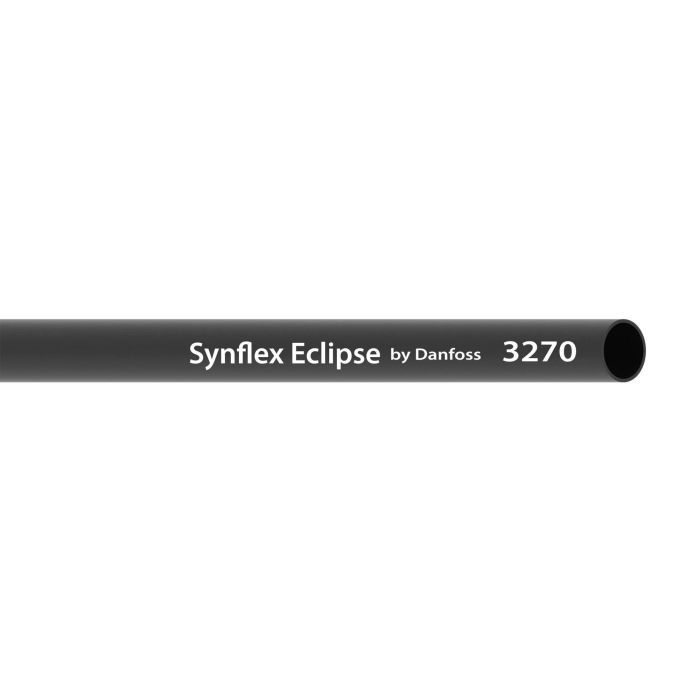

Danfoss / Eaton 3270 Eclipse Air Brake Tubing

Description & Features

Designed for truck and trailer air brake systems, the Danfoss / Eaton 3270 Eclipse Air Brake Tubing is built to perform reliably under the demanding conditions of commercial vehicle brake harness assemblies, including both formed tube and straight configurations. The tubing meets SAE J844, SAE J2494-2, and SAE J1131 standards and complies with DOT FMVSS 106, making it a compliant choice for regulated air brake applications.

Constructed with a polyamide tube and synthetic fiber multi-braid reinforcement, the -6 dash size tubing features a green polyester cover rated for a minimum working temperature of -40°F. The non-conductive construction is compatible with QCAB and push-to-connect fittings, and an impulse cycle life of 125,000 cycles reflects its durability in high-demand service. Proprietary blended nylon materials contribute to a lightweight profile without sacrificing resistance to abrasion or harsh operating conditions.

SKU: 3270-06154

Supplier Part Number (MPN): 3270-06154

Alternate Part Numbers: MI-08754219, MINO-00803X87663

Specifications

Brand
Synflex® by Danfoss
Color
Green
Conductive
Non-Conductive
Cover Material
Polyester
Dash Size
06
Impulse Cycle Life
125000
Inside Diameter
1/4 in
Material
Polymer
Material Construction
Polyamide
nmfc
70
Nominal Size
3/8 in
Reinforcement
Multi-Braided Synthetic Fiber
Resistance
Abrasion
Resistance Properties
Abrasion
Series
3270 Series
Tube Material
Polyamide
