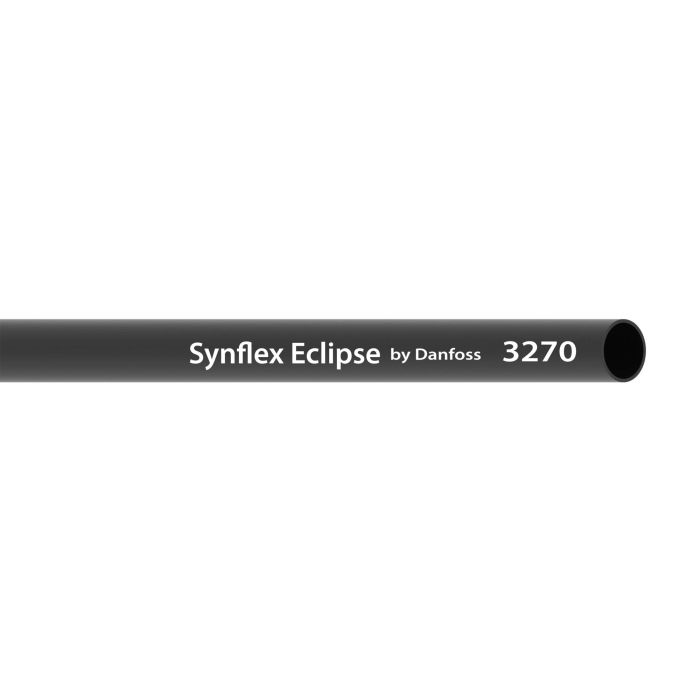

AEROQUIP ECLIPSE 5/8 BLK 100

Description & Features

Eaton Aeroquip Eclipse 3270 series airbrake hose features a multi-braid construction with a synthetic fiber reinforcement and a durable polyester cover material for premium abrasion resistance. Suitable for truck and trailer air brake systems, auxiliary air systems, and formed air brake harness assemblies, this non-conductive black hose complies with DOT FMVSS 106 and SAE J2494-2, SAE J844, and SAE J1131 certifications.

The AEROQUIP ECLIPSE 5/8 BLK 100 boasts light weight for improved flexibility and is engineered for maximum durability in demanding conditions. It utilizes high-quality proprietary blended nylon materials and offers an impulse cycle life of 125,000 cycles. With a -10 dash size, it maintains a minimum bend radius of 2.5 inches and can operate in temperatures as low as -40 degrees.

SKU: 3270-1010-0100

Supplier Part Number (MPN): 3270-1010-0100

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MINO-00015X05613	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.	Certifications SAE J2494-2\|SAE J844\|SAE J1131	Color Black	Compliances DOT FMVSS 106	Conductivity 13552	Construction Multi Braid	Cover Material Polyester	Dash Size -10	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Impulse Cycle Life 125000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 2.50	Minimum Bend Radius 2.5	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.63	Reinforcement Material Synthetic fiber	Sub Brand Synflex	Supplier Part Number 3270-1010-0100	Tube Material Nylon	Product Weight 0.22 lbs

Product Questions & Answers (2)

Question by: Debbie C on Jun 22, 2025, 7:42 AM

got a tight spot on a trailer, how sharp can i bend this 5/8 eclipse hose without kinkin it

Answer by: Customer Support on Jun 23, 2025, 7:59 PM

For tight routing, the published minimum bend radius is 2.5 inches. Keeping your bend at or above that radius helps it hold its shape and avoid kinking.

Question by: Lee O on Jan 4, 2026, 12:15 PM

does this hose hold up to the cold? running air brake lines on a rig that sees some pretty rough winters and the last stuff I used got stiff and cracked on me

Answer by: Customer Support on Jan 5, 2026, 4:51 PM

Cold weather performance is built into this hose. It's rated down to negative 40 degrees, so freezing temps alone shouldn't cause the stiffness or cracking you've dealt with before. The nylon tube material and polyester cover hold up well in those conditions, and the multi-braid construction helps it stay flexible rather than going brittle when the mercury drops.
