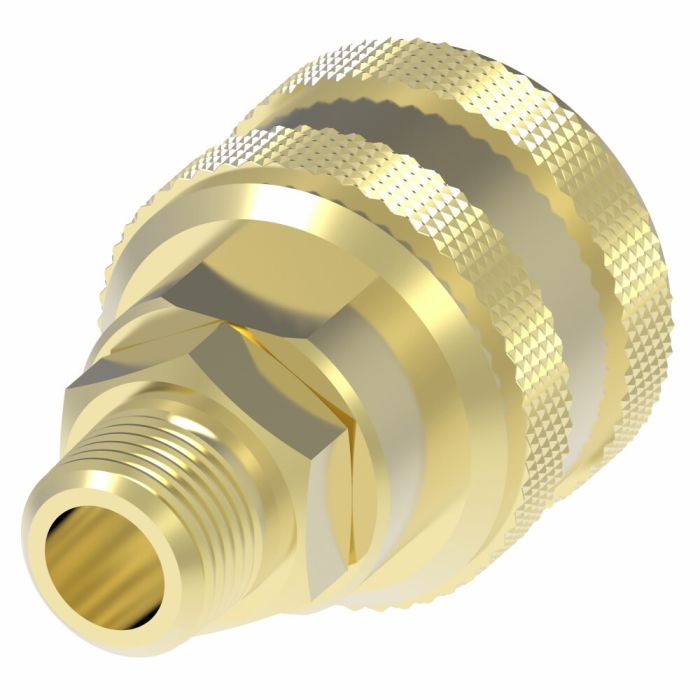

Designed for industrial fluid transfer and general pneumatic applications, this brass quick disconnect coupling socket connects and disconnects without special tools, making it well suited for maintenance and repair environments where efficiency matters. The Danfoss / Eaton Straight Through Socket is a female half fitting with a ball lock mechanism, 3/8 in. port size, and a Push to Connect end on one side with a 3/8 in. NPTF thread on the other.
Buna-N seals provide reliable performance across a working temperature range starting at -40°F, while the two-way valve design supports controlled flow in demanding service conditions. Compliant with US Industrial Interchange, ISO 6150 Series B, and A-A-59439 standards, this fitting integrates with existing Hansen 3000 Series quick disconnect configurations. Flow capacity reaches up to 180 gallons per minute, and the coupling exceeds ISO 16028 operating pressure requirements.
SKU: 3300E
Supplier Part Number (MPN): 3300E
|
Alternate Part Numbers
MINO-00015X05674
|
Application
Industrial Breathing Air, General Pneumatics, Maintenance & Repair, Fluid Transfer
|
Compliances
US Industrial Interchange, ISO 6150 Series B, A-A-59439
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
180 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
Brass
|
Product Width
1.19
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
3300E
|
Valve Type
2 way
|
Product Weight
0.30 lbs
|
