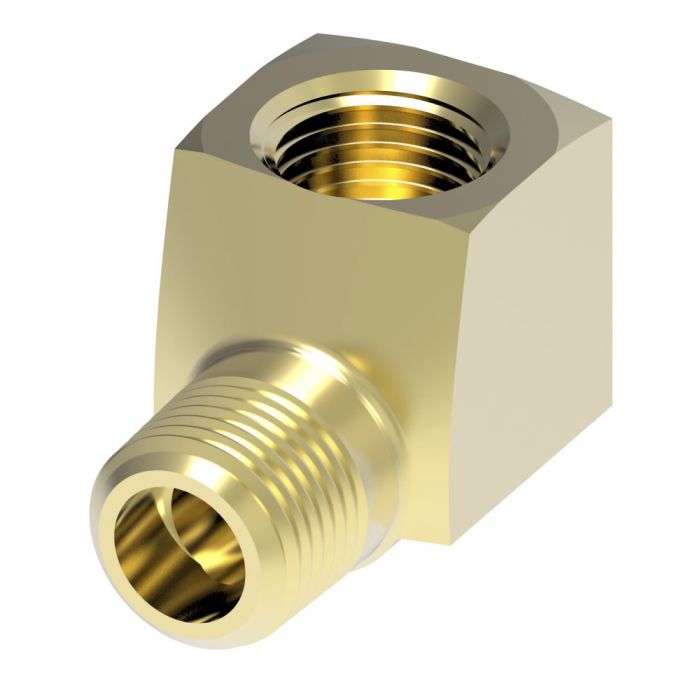

Constructed from brass with Eaton Aeroquip's Dura-Kote plating for corrosion resistance, this NPTF Male x NPTF Female 90° Street Elbow is designed for use in hydraulic, instrumentation, grease, and refrigeration systems. The male end is 1/8 in. NPTF and the female end is 1/4 in. NPTF, making it well suited for directional changes in tight installations where a standard elbow would require additional fittings.
Certified to SAE 130239 and Asme standards, this adapter is rated for operating pressures above standard SAE requirements. Eaton Aeroquip's broad range of compatible adapter styles supports flexible system configurations across a wide variety of industrial applications.
SKU: 3400X4X2
Supplier Part Number (MPN): 3400X4X2
Alternate Part Numbers: JBT-118-2671-002
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberJBT-118-2671-002, Alternate Part Number MINO-00015X05811
Application
Grease, refrigeration,
instrumentation and hydraulic
systems. Fuel, LP and
natural gas available on
special order.
instrumentation and hydraulic
systems.
Certifications
SAE 130239|ASME
Drop Dimension
0.78
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.13
End Size 2
0.25
End Type 1
NPTF
End Type 2
NPTF
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
ICC
Elbow Adapters
Item Type
NPTF Male/NPTF Female 90° Elbow Adapter
Language
English
Minimum Working Temperature
-65
Net Pack Quantity Units
EA
NMFC
60
Product Material
Brass
Product Width
0.69
Sub Brand
None
Supplier Part Number
3400X4X2
Product Weight
0.07 lbs
Product Questions & Answers (3)
Question by: Gene F on Sep 29, 2025, 11:23 AM
trying to swap out an elbow on a small line, what size threads are on each end of this 3400X4X2?
Answer by: Customer Support on Oct 1, 2025, 6:44 AM
On this street elbow, one end is a 1/8 NPTF male and the other end is a 1/4 NPTF female.
Question by: Denise P on Jun 26, 2025, 3:45 PM
brass fitting rated for hydraulic use, or is this more of a hydraulic connections part?
Answer by: Customer Support on Jun 28, 2025, 6:07 AM
Hydraulic systems are a listed application for this fitting, right alongside instrumentation and refrigeration lines. It's made from brass and carries both SAE 130239 and ASME certifications, so it meets recognized industry standards rather than being a basic hydraulic connections-grade piece. The Dura-Kote plating also gives it better corrosion resistance than a standard brass fitting off a hardware shelf.
Question by: Merle W on May 21, 2025, 1:20 PM
What kind of stuff is this elbow fitting good for?
Answer by: Customer Support on May 22, 2025, 3:43 PM
Typically, this 90° street elbow is used for grease, refrigeration, instrumentation, and hydraulic systems. It's also available for fuel, LP, and natural gas, but that's on a special order basis.
