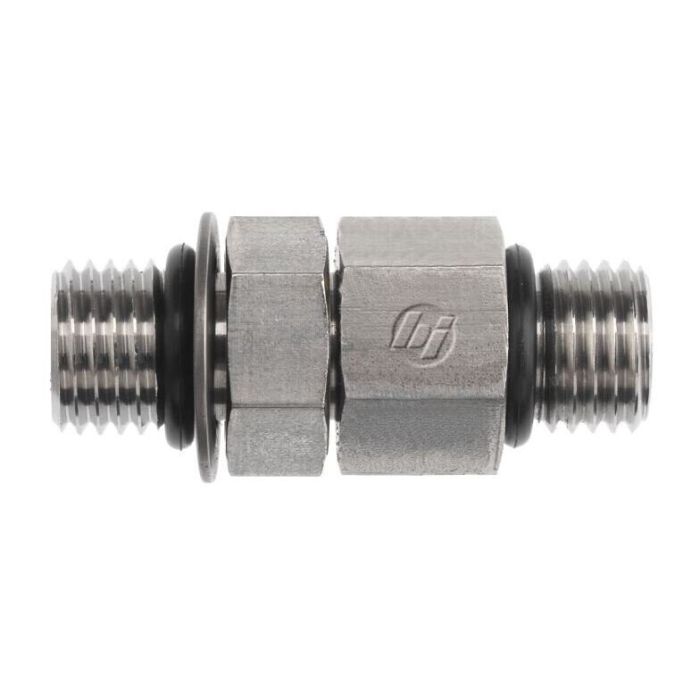

06MORB-04MORB STRAIGHT

Description & Features

Crafted from high-quality straight steel, the 06MORB-04MORB STRAIGHT is designed for robust hydraulic applications requiring reliable connections. This fitting features a Male SAE Adjustable O-Ring Boss thread on one end and a Male SAE O-Ring Boss thread on the other, both conforming to SAE J514 specifications. The use of NBR for the O-ring seal ensures optimal performance and durability in hydraulic systems.

With a compact overall length of 1.540 mm and a Brennan C Hex size of 0.688 mm, this fitting is engineered to fit seamlessly into your existing setup. The threads, sized at 9/16-18 and 7/16-20, provide secure and efficient connections, minimizing potential leakage. Brennan Industries, known for precision and quality, supplies this component under series 3474-NWO, ensuring compatibility with a range of hydraulic systems.

SKU: 3474-06-04-NWO

Supplier Part Number (MPN): 3474-06-04-NWO

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Male ORB, Male SAE ORB	Connection Type 1 Male SAE ORB	Connection Type 2 Male ORB	Dimension Standards SAE J1926, SAE J514	Dimensions 1.38 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 11/16 in	l Dimensions 1.54 in	Material Steel	Material Construction 12L14/C1045 Steel	Maximum Operating Pressure 6000 psi	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series 3474-NWO Series	Thread 2 Drill Dimensions 0.172 in	Thread B1 Drill Dimensions 0.297 in	Thread Size 9/16-18, 7/16-20

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size	Hex Size
3474-24-24-NWO Steel Male ORB To ORB Adapter	1-1/2 in	1-1/2 in	1-7/8-12	2-1/8 in
3474-08-08-NWO Steel Male ORB To ORB Adapter	1/2 in	1/2 in	3/4-16	7/8 in
3474-12-12-NWO Steel Male ORB To ORB Adapter	3/4 in	3/4 in	1-1/16-12	1-1/4
3474-06-06-NWO Steel Male ORB To ORB Adapter	3/8 in	3/8 in	9/16-18	11/16 in
3474-16-16-NWO Steel Male ORB To ORB Adapter	1 in	1 in	1-5/16-12	1-1/2 in
3474-04-04-NWO	1/4 in	1/4 in	7/16-20	0.563 in
3474-08-06-NWO	1/2 in	3/8 in	3/4-16, 9/16-18	7/8 in
3474-10-10-NWO	5/8 in	5/8 in	7/8-14	1 x 1 in
3474-16-12-NWO	1 in	3/4 in	1-5/16-12 x 1-1/16-12	1-3/8 x 1-1/2 in
3474-20-20-NWO	1-1/4 in	1-1/4 in	1-5/8-12	1-7/8 in
