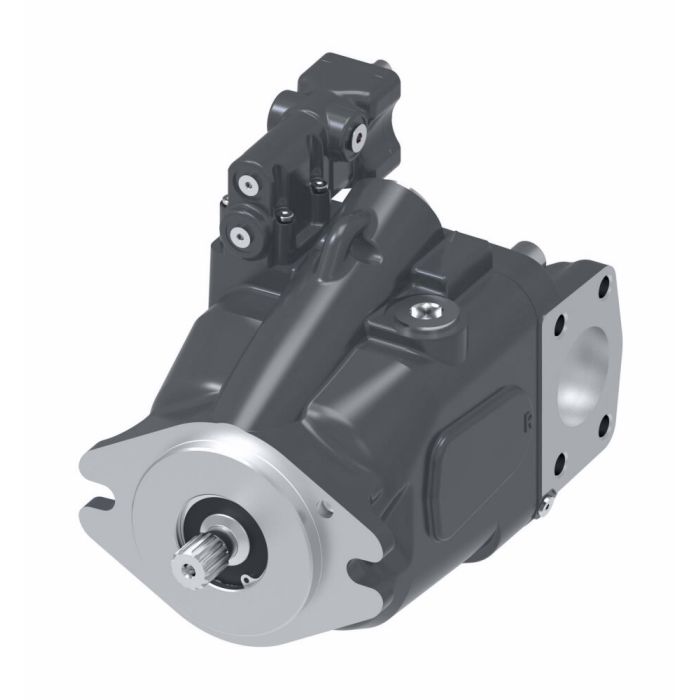

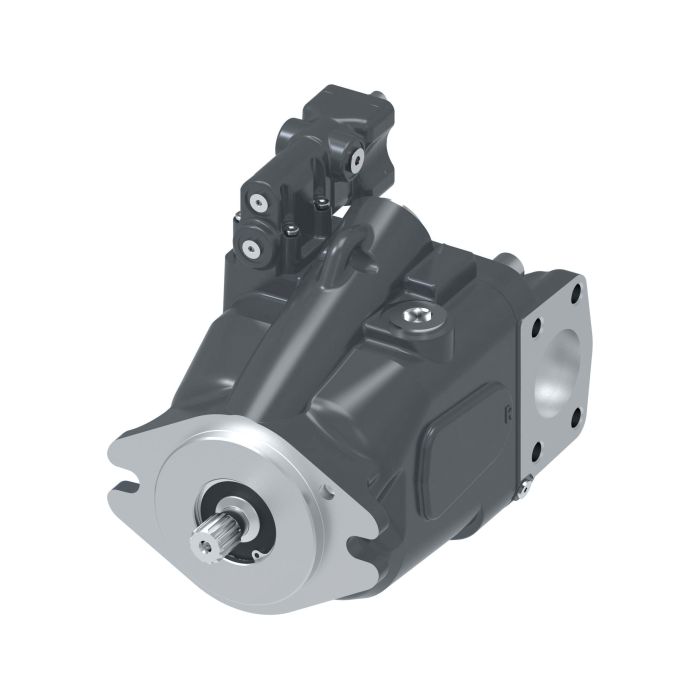

main product photo

Danfoss / Eaton-DUAL Servo ControlLED

Ask A Question

Description & Features

Designed for variable displacement closed circuit hydraulic systems, the Danfoss / Eaton Dual Servo Controlled pump control is built for demanding mobile equipment environments. Compatible with displacements ranging from 20cc to 49cc (1.22 to 3.00 cu in), it suits a wide range of medium-duty piston pump configurations within the 72400 Series platform.

The sealed system design supports straightforward operation and reduces maintenance complexity in field conditions. Typical applications span construction, agriculture, truck and bus, and oil and gas equipment, making it a practical choice across multiple mobile hydraulic platforms.

Flexibility across displacement ranges and application types is a key characteristic, allowing this control to be specified for varied equipment requirements without sourcing multiple part variants.

SKU: 358AK00055A

Supplier Part Number (MPN): 358AK00055A

Specifications

Brand
Danfoss
Additional Functions
0.91 in
Auxiliary Mount Features
Dual SAE J744 Flange 101-2 (2-Bolt B) Accepts 13-Tooth 16/32 Pitch Spline with 41.2 1.62 Shaft Extension (No Coupler Required)
Auxiliary Port and Bypass Valve
0.750-16 UNF-2B SAE O-ring Ports - Left (C1) and Right (C2) Sides, Right Side Plugged, Bypass Valve Front and Rear
Charge Relief Set and Routing
20.68-22.41 bar Relieved to Case
Control Assembly Front
Manual Control, Wide Band Neutral, Neutral Lockout Switch, Destroke Valve with 12 VDC Coil (Normally Open) and Deutsch Connector
Control Assembly Rear
Manual Control, Wide Band Neutral, Neutral Lockout Switch, Destroke Valve with 12 VDC Coil (Normally Open) and Deutsch Connector
Control Type
Servo
Design Code
A
Dimensions
20.94 in L x 10.98 in W x 10.45 in H
Displacement and Rotating Kit Rear
49.2 cu-cm/r, 3 cu-in/r - High-Pressure Rotating Kit
Displacement and Rotating Kit Front
49.2 cu-cm/r, 3 cu-in/r - High-Pressure Rotating Kit
Drain Port Size Location Front
1-1/16-12 UN-2B SAE O-ring Port - Left (D1) Right (D2) Housing
Drive Shaft Type
Splined
Housing Color
Black
Housing Material
Iron
Inlet Size
1-1/16-12
Inlet Type
SAE ORB
Input Shaft
15-Tooth External Spline, 16/32 Pitch, 24.981 .9835 Major Diameter, 46 1.81 Shaft Extension
Main Ports (A and B)
4x 1-1/16-12 UN-2B SAE O-ring Port, Front Ports Right, Rear Ports Left
Mounting Type
SAE B 2-Bolt Flange
Outlet Size
1-1/16-12
Outlet Type
SAE ORB
Relief Set Main Port A Front
224.1 bar, 3250 lbf/sq-in
Relief Set Main Port A Rear
224.1 bar, 3250 lbf/sq-in
Relief Set Main Port B Front
224.1 bar, 3250 lbf/sq-in
Relief Set Main Port B Rear
224.1 bar, 3250 lbf/sq-in
Rotation Direction
Counterclockwise
Series
72400 Back to Back Series
Valve Plate Front
Type 1
Valve Plate Rear
Type 1

Product Questions & Answers (2)

Question by: Danny S on Apr 17, 2025, 7:06 PM
Can this Eaton-Dual servo control be used on different brands of equipment, or is it specific to Danfoss systems?
Answer by: Customer Support on Apr 19, 2025, 1:01 PM
Designed for variable displacement closed circuit hydraulic systems, this servo control is compatible with displacements ranging from 20cc to 49cc (1.22 to 3.00 cu in), making it suitable for a range of medium-duty piston pump configurations within the 72400 Series platform.
Question by: Tammy P on Sep 9, 2025, 6:47 AM
got a 72400 series piston pump running on a skid steer loader and need to swap out the control, does this one cover the 35cc displacement range?
Answer by: Customer Support on Sep 11, 2025, 6:10 AM
The 72400 Series platform is exactly what this control is built around, and the supported displacement range runs from 20cc up to 49cc, so 35cc falls right in the middle of that window. As long as your pump is a variable displacement closed circuit unit within that series, this should line up with what you need.
