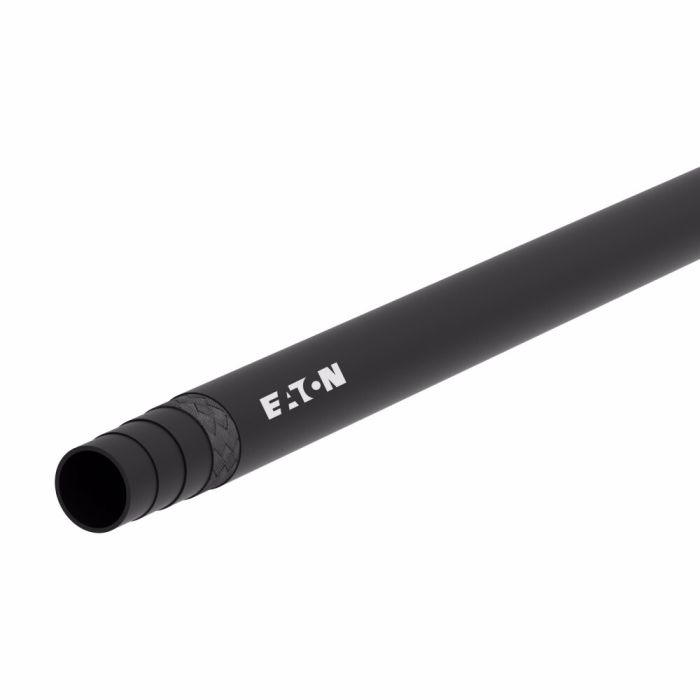

This black Synflex by Danfoss / Eaton 35FH Series Engine and Fuel Hose and Tubing is constructed with a PVC alloy cover and PVDF tube material. The 1 ply braid reinforcement is made of polyester.
Designed to handle various fuel options, the hose features a highly abrasion resistant cover and proven reliability with high temperature resistance. It meets SAE J1527B1 and SAE J30R6 certifications. With a -6 dash size, this non-conductive hose has a minimum bend radius of 1.5 inches and is designed to operate in temperatures as low as -40°F.
SKU: 35FH-60206-001
Supplier Part Number (MPN): 35FH-60206-001
|
Alternate Part Numbers
MINO-00015X05868
|
Certifications
SAE J1527B1|SAE J30R6
|
Color
Black
|
Conductivity
13552
|
Construction
1 Ply Braid
|
Cover Material
PVC Alloy
|
Dash Size
-6
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
FT
|
Features
Highly abrasion resistant cover|Small number of hoses for many fuel options|Proven reliability with high temperature resistance
|
ICC
Hoses and Flexible Tubes
|
Language
English
|
Minimum Bend Radius
1.50
|
Minimum Bend Radius
1.5
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
FT
|
NMFC
70
|
Product Width
0.63
|
Qualified Hose Fittings
4738, 4742, 4740, 4743, 4797, 4741, 4739
|
Reinforcement Material
Polyester
|
Sub Brand
Synflex
|
Supplier Part Number
35FH-60206-001
|
Tube Material
PVDF
|
Product Weight
0.14 lbs
|
