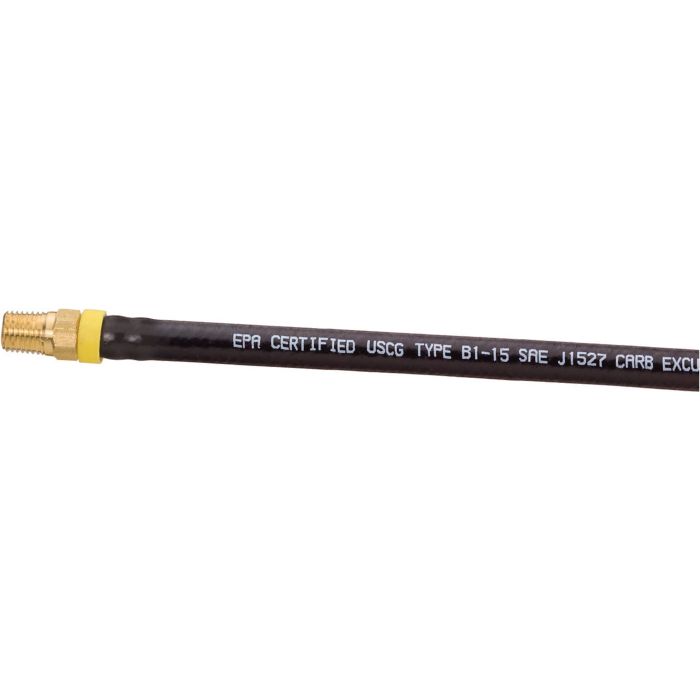

35FH Series USCG Type B1-15 SAE J1527 Fuel Hose

Description & Features

Application	Marine outboard fuel systems and small gasoline powered lawn, garden, rental and turf equipment. Designed for sustainability of our environment, with exceptionally low fuel permeation. The State of California Air Resources Board (CARB) and the U.S. EPA Clean Air Act, Section 213, mandate that fuel hoses for outboard marine, not to exceed a permeation rate of fuel vapors of 15gm/m2/day. Eaton’s 35FH significantly exceeds this regulation with tested average loss rate of <6gm/m2/day. Meets tank to engine requirements on a wide variety of marine out board fuel systems and small gasoline powered turf and lawn care equipment. Meets the requirements of the International Marine Certification institutes Recreational Craft Directive 94/25/EC. Qualified to applicable portions of SAE J1527B1, SAE J30R6, R9 and R11 specifications. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on
Construction	Polyvinylidene Fluoride (PVDF) barrier layer with polyester reinforcement and a black PVC Alloy cover.
Reusable Fittings	SOCKETLESS™
Temperature Range	-40°F to +160°F

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Burst Pressure	Reel Qty (ft)	Price	Action
35FH-60203-001 35FH Series USCG B1-15 Fuel Hose	0.37	0.63	175		300

Question by: Shane P on Oct 18, 2025, 10:38 AM

How flexible is this hose, really? I'm working in a pretty tight space.

Answer by: Customer Support on Oct 20, 2025, 6:48 AM

Construction includes a PVDF barrier with polyester reinforcement, allowing good flexibility for tight routing in marine and lawn/garden equipment.
