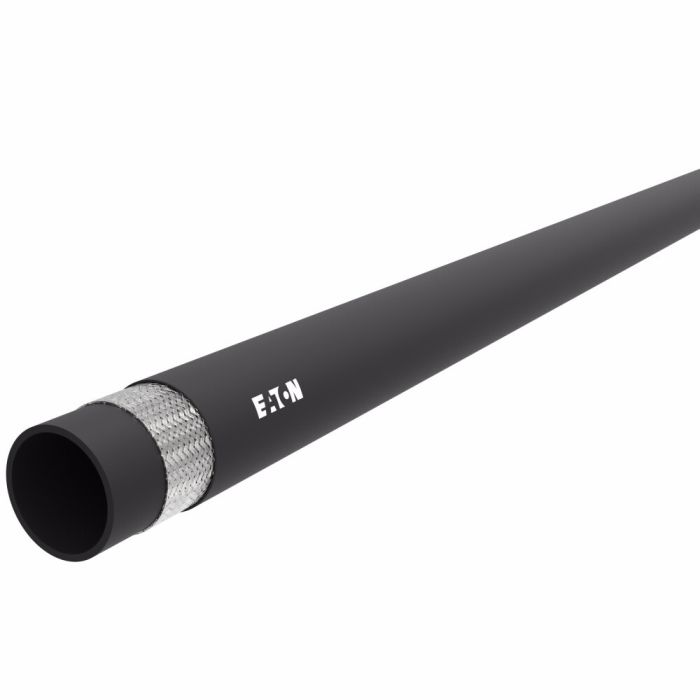

35FH Series USCG Type B1-15 SAE J1527 Fuel Hose, 0.25 Inch ID, Up To 175.00 PSI

This 35FH Series USCG Type B1-15 SAE J1527 Fuel Hose is designed for marine outboard fuel systems and small gasoline-powered lawn, garden, rental, and turf equipment. It features a Polyvinylidene Fluoride (PVDF) barrier layer with polyester reinforcement and a black PVC Alloy cover, and it meets tank to engine requirements on a wide variety of applications.

The hose has a 0.25 inch inner diameter and a 0.49 inch outer diameter, with a maximum operating pressure of 175 PSI. It is designed for sustainability with exceptionally low fuel permeation, significantly exceeding regulations with a tested average loss rate of <6gm/m2/day. This hose also meets the requirements of the International Marine Certification Institutes Recreational Craft Directive 94/25/EC and applicable portions of SAE J1527B1, SAE J30R6, R9, and R11 specifications. Its temperature range is -40°F to +160°F, and its minimum bend radius is 1.5 inches. This hose utilizes SOCKETLESS™ reusable fittings.

SKU: 35FH-40203-001

Supplier Part Number (MPN): 35FH-40203-001

Alternate Part Numbers: C1MQ91
