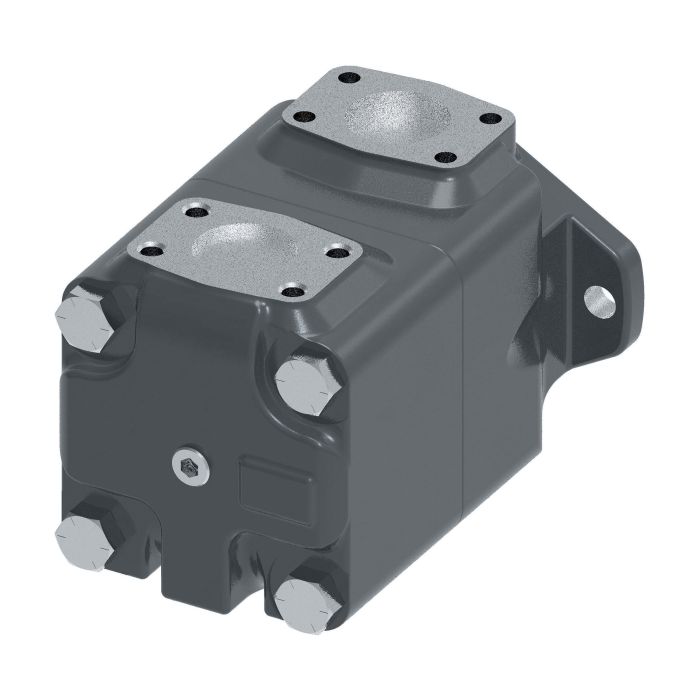

main product photo

35M Series Vane Motor, 115 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Port Connections In-line (C)

Ask A Question

Description & Features

Designed for elevator scraper drives, hydrostatic drives, and auxiliary hydraulic applications, the 35M Series Vane Motor, 115 Ring Size, 1-1/4 Straight Keyed Shaft, Outlet Port Connections In-line (C) is an Eaton Vickers unit built for reliable, low-noise performance in demanding industrial environments.

This single-configuration motor features a 2-bolt SAE C mounting flange and 1-1/2" SAE 4-bolt flange ports, with port connections oriented in-line (C) for straightforward integration into existing hydraulic circuits. A 3/8 NPT drain port is located in the rear cover. The 1-1/4 straight keyed shaft and single shaft seal with Buna-N seal material round out the key mechanical details.

Torque output is rated at 115 lb-in per 100 psi, consistent with the 115 ring size designation. Thru-drive is not available on this configuration. The catalog number for this unit is C1BL65, and the model number is 35M115A-1C20.

SKU: 312065-3

Supplier Part Number (MPN): 312065-3

Alternate Part Numbers: 35M115A1C20, C1BL65

Specifications

Color
Gray
Configuration
Single
Design Code
20
Dimensions
10.75 in L x 8.38 in W x 6.25 in H
Frame Size
35
Grp Specifications
2-Bolt SAE C Mounting Flange, 1-1/2 in SAE 4-Bolt Flange Port, 3/8 in NPT Drain Port (Rear Cover)
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Rotation Direction
Right Hand
Seal Material
Buna-N
Segment Code
A
Series
35M Series
Shaft Seal
Single
Shaft Type
Splined, Straight Keyed

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Rusty J on Nov 13, 2025, 1:38 PM
Reckon this'd be alright for a elevator scraper drive?
Answer by: Customer Support on Nov 15, 2025, 9:36 AM
This 35M series vane motor is listed as suitable for elevator scraper drives, as well as hydrostatic drives and other auxiliary applications.
Question by: Chad F on Apr 25, 2025, 3:29 PM
got an older Eaton Vickers M series vane motor on an elevator scraper drive, is this one the right style or am i lookin at the wrong thing
Answer by: Customer Support on Apr 26, 2025, 5:42 PM
For that kind of setup, you are in the right family. This is an Eaton Vickers 35M Series vane motor and the listed applications include elevator scraper drives, hydrostatic drives, and auxiliary applications. It is a single configuration motor with a 115 ring size and 7.44 displacement.
Question by: Rex F on Oct 14, 2025, 9:57 AM
torque rating on this motor, is that 115 lb-in per 100 psi across the whole operating range or just at a specific pressure point?
Answer by: Customer Support on Oct 15, 2025, 7:17 PM
That 115 lb-in per 100 psi figure is the rated torque output for this motor, and it scales with pressure. So if you're running at 200 psi, you're looking at roughly 230 lb-in of torque. It's a straightforward linear relationship for vane motors in this series, which makes it pretty easy to work backwards from your load requirements when sizing things out.
