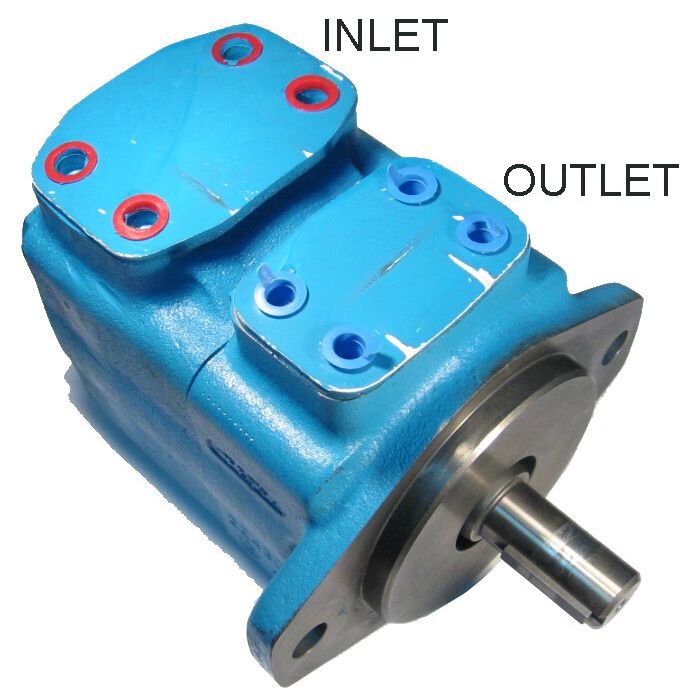

main product photo

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

Ask A Question

Description & Features

This Eaton Vickers 35VQ Series Vane Pump is designed for high-pressure, high-speed applications and features a 35 ring size. Known for its outstanding volumetric efficiency and longer operating life, this 35VQ Series Vane Pump includes a 14 Tooth SAE C splined shaft and CCW rotation.

This vane pump is well-suited for applications such as metal cutting, plastic injection molding, oil and gas, dump trucks, and wheel loaders. It features a 2-Bolt SAE C mounting flange and SAE 4-Bolt flange ports, with a 2" inlet and 1-1/4" outlet. The outlet is in-line with the inlet. It has a maximum pressure of 3000 PSI and a speed rating of 2400 RPM.

SKU: 419330-7

Supplier Part Number (MPN): 419330-7

Alternate Part Numbers: 35VQ35A11C20LH

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
6.88
Displacement
6.88
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
in-Line with Outlet
Rated Flow
53.60
Rated Flow
53.6
Ring Size
35
Ring Size
35
Rotation
CCW
Seal Material
Buna-N
Series
35VQ
Shaft
14 Tooth SAE C Splined
Shaft
14 Tooth SAE C Splined
Special Features
None
Speed Rating
2400 RPM
Speed Rating
2400 RPM
Supplier Part Number
419330-7
Alternate Part Numbers
Alternate Part Number 35VQ35A11C20LH
Product Weight
50.00 lbs
