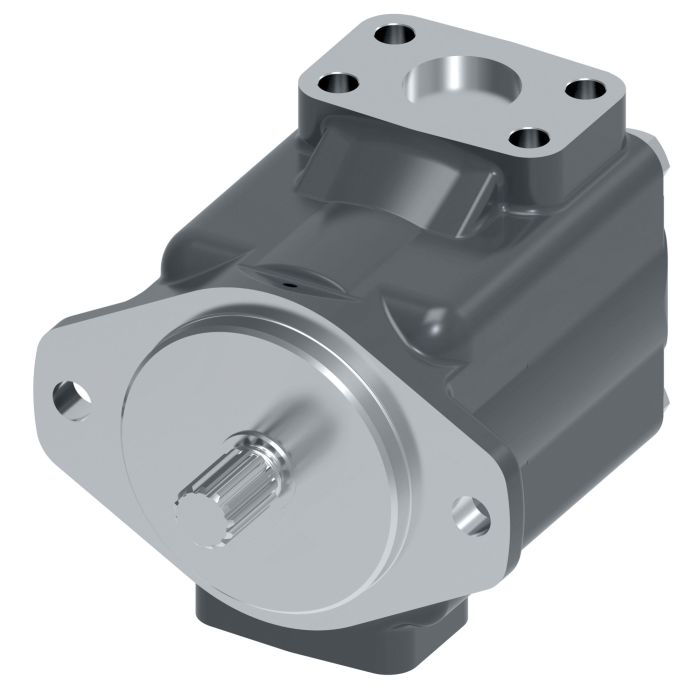

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

Description & Features

Designed for high-pressure, high-speed hydraulic circuits, the 35VQ Series Vane Pump delivers a rated flow of 31.5 GPM at 2500 RPM with a maximum pressure rating of 3000 PSI. The 21 ring size and 14-tooth SAE C splined shaft make this pump a direct fit for 2-bolt SAE C mounting configurations.

Port connections consist of a 2" SAE 4-bolt flange inlet and a 1-1/4" SAE 4-bolt flange outlet, positioned opposite the inlet for flexible circuit routing. Clockwise rotation and Buna-N seals are standard on this configuration. Suited for demanding applications including metal cutting, plastic injection molding, dump trucks, wheel loaders, and oil and gas equipment.

Engineered by Danfoss Power Solutions (formerly Eaton Vickers), the 35VQ series is built for consistent volumetric efficiency and extended service life under sustained load conditions.

SKU: 420995-1

Supplier Part Number (MPN): 420995-1

Specifications

Application Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding	Displacement 4.04	Displacement 4.04	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Longer operating life\|Oustanding volumetric efficiency\|Built for high-pressure, high-speed applications	Maximum Pressure 3000	Maximum Pressure 3000	Port Location Opposite Outlet	Rated Flow 31.50	Rated Flow 31.5	Ring Size 21	Ring Size 21	Rotation CW	Seal Material Buna-N	Series 35VQ	Shaft 14 Tooth SAE C Splined	Shaft 14 Tooth SAE C Splined	Special Features None	Speed Rating 2500 RPM	Speed Rating 2500 RPM	Supplier Part Number 420995-1	Alternate Part Numbers Alternate Part Number MINO-00900H61137	Product Weight 50.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
35VQ35A-11B20 35VQ Series Vane Pump	419330-2	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ35A-11C20 35VQ Series Vane Pump	419330-3	14 Tooth SAE C Splined	6.88	35	53.6	in-Line with Outlet	CW	3000	2400 RPM
35VQ35A-11D20 35VQ Series Vane Pump	419330-4	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ35A-11A20-L 35VQ Series Vane Pump	419330-5	14 Tooth SAE C Splined	6.88	35	53.6	Opposite Outlet	CCW	3000	2400 RPM
35VQ35A-11B20-L 35VQ Series Vane Pump	419330-6	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CW from Outlet	CCW	3000	2400 RPM
35VQ35A-11C20-L 35VQ Series Vane Pump	419330-7	14 Tooth SAE C Splined	6.88	35	53.6	in-Line with Outlet	CCW	3000	2400 RPM
35VQ35A-11D20-L 35VQ Series Vane Pump	419330-8	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CCW from Outlet	CCW	3000	2400 RPM
35VQ21A-11B20 35VQ Series Vane Pump	420995-2	14 Tooth SAE C Splined	4.04	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ21A-11C20 35VQ Series Vane Pump	420995-3	14 Tooth SAE C Splined	4.04	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ21A-11D20 35VQ Series Vane Pump	420995-4	14 Tooth SAE C Splined	4.04	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ21A-11A20-L 35VQ Series Vane Pump	420995-5	14 Tooth SAE C Splined	4.04	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ21A-11C20-L 35VQ Series Vane Pump	420995-7	14 Tooth SAE C Splined	4.04	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-11B20 35VQ Series Vane Pump	421526-2	14 Tooth SAE C Splined	5.96	30	46	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ30A-11C20 35VQ Series Vane Pump	421526-3	14 Tooth SAE C Splined	5.96	30	46	in-Line with Outlet	CW	3000	2500 RPM
35VQ30A-11D20 35VQ Series Vane Pump	421526-4	14 Tooth SAE C Splined	5.96	30	46	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ30A-11A20-L 35VQ Series Vane Pump	421526-5	14 Tooth SAE C Splined	5.96	30	46	Opposite Outlet	CCW	3000	2500 RPM
35VQ30A-11B20-L 35VQ Series Vane Pump	421526-6	14 Tooth SAE C Splined	5.96	30	46	90 deg CW from Outlet	CCW	3000	2500 RPM
35VQ30A-11C20-L 35VQ Series Vane Pump	421526-7	14 Tooth SAE C Splined	5.96	30	46	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-11D20-L 35VQ Series Vane Pump	421526-8	14 Tooth SAE C Splined	5.96	30	46	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ25A-1B20 35VQ Series Vane Pump	421527-2	1-1/4 straight Keyed	4.98	25	38.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ25A-1C20 35VQ Series Vane Pump	421527-3	1-1/4 straight Keyed	4.98	25	38.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ25A-1D20 35VQ Series Vane Pump	421527-4	1-1/4 straight Keyed	4.98	25	38.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ25A-1A20 35VQ Series Vane Pump	421527-5	1-1/4 straight Keyed	4.98	25	38.5	Opposite Outlet	CW	3000	2500 RPM
35VQ25A-1C20-L 35VQ Series Vane Pump	421527-7	1-1/4 straight Keyed	4.98	25	38.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ35A-1C20-L 35VQ Series Vane Pump	421528-3	1-1/4 straight Keyed	6.88	35	53.6	in-Line with Outlet	CCW	3000	2400 RPM
35VQ30A-1C20 35VQ Series Vane Pump	421555-3	1-1/4 straight Keyed	5.96	30	46	in-Line with Outlet	CW	3000	2500 RPM
35VQ30A-1D20 35VQ Series Vane Pump	421555-4	1-1/4 straight Keyed	5.96	30	46	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ30A-1A20-L 35VQ Series Vane Pump	421555-5	1-1/4 straight Keyed	5.96	30	46	Opposite Outlet	CCW	3000	2500 RPM
35VQ30A-1C20-L 35VQ Series Vane Pump	421555-7	1-1/4 straight Keyed	5.96	30	46	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-1D20-L 35VQ Series Vane Pump	421555-8	1-1/4 straight Keyed	5.96	30	46	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ38A-11B20 35VQ Series Vane Pump	427765-2	14 Tooth SAE C Splined	7.42	38	57	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ38A-11C20 35VQ Series Vane Pump	427765-3	14 Tooth SAE C Splined	7.42	38	57	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-11D20 35VQ Series Vane Pump	427765-4	14 Tooth SAE C Splined	7.42	38	57	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ38A-11A20-L 35VQ Series Vane Pump	427765-5	14 Tooth SAE C Splined	7.42	38	57	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-11B20-L 35VQ Series Vane Pump	427765-7	14 Tooth SAE C Splined	7.42	38	57	90 deg CW from Outlet	CCW	3000	2400 RPM
35VQ25A-11B20 35VQ Series Vane Pump	427807-2	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ25A-11C20 35VQ Series Vane Pump	427807-3	14 Tooth SAE C Splined	4.98	25	38.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ25A-11D20 35VQ Series Vane Pump	427807-4	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ25A-11A20-L 35VQ Series Vane Pump	427807-5	14 Tooth SAE C Splined	4.98	25	38.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ25A-11B20-L 35VQ Series Vane Pump	427807-6	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CW from Outlet	CCW	3000	2500 RPM
35VQ25A-11C20-L 35VQ Series Vane Pump	427807-7	14 Tooth SAE C Splined	4.98	25	38.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ25A-11D20-L 35VQ Series Vane Pump	427807-8	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ21A-1B20 35VQ Series Vane Pump	591391-2	1-1/4 straight Keyed	4.04	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ21A-1C20 35VQ Series Vane Pump	591391-3	1-1/4 straight Keyed	4.04	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ21A-1D20 35VQ Series Vane Pump	591391-4	1-1/4 straight Keyed	4.04	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ21A-1A20-L 35VQ Series Vane Pump	591391-5	1-1/4 straight Keyed	4.04	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ21A-1C20-L 35VQ Series Vane Pump	591391-7	1-1/4 straight Keyed	4.04	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ35A-1B20 35VQ Series Vane Pump	421528-2	1-1/4 straight Keyed	6.88	35	53.6	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ35A-1D20 35VQ Series Vane Pump	421528-4	1-1/4 straight Keyed	6.88	35	53.6	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ35A-1A20 35VQ Series Vane Pump	421528-5	1-1/4 straight Keyed	6.88	35	53.6	Opposite Outlet	CW	3000	2400 RPM
35VQ35A-1C20 35VQ Series Vane Pump	421528-7	1-1/4 straight Keyed	6.88	35	53.6	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-1B20 35VQ Series Vane Pump	421529-2	1-1/4 straight Keyed	7.42	38	57	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ38A-1C20 35VQ Series Vane Pump	421529-3	1-1/4 straight Keyed	7.42	38	57	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-1D20 35VQ Series Vane Pump	421529-4	1-1/4 straight Keyed	7.42	38	57	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ38A-1A20-L 35VQ Series Vane Pump	421529-5	1-1/4 straight Keyed	7.42	38	57	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-1C20-L 35VQ Series Vane Pump	421529-7	1-1/4 straight Keyed	7.42	38	57	in-Line with Outlet	CCW	3000	2400 RPM
35VQ30A-1B20 35VQ Series Vane Pump	421555-2	1-1/4 straight Keyed	5.96	30	46	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ35A-11A20 35VQ Series Vane Pump	419330-1	14 Tooth SAE C Splined	6.88	35	53.6	Opposite Outlet	CW	3000	2400 RPM
35VQ21A-11A20 35VQ Series Vane Pump	420995-1	14 Tooth SAE C Splined	4.04	21	31.5	Opposite Outlet	CW	3000	2500 RPM
35VQ30A-11A20 35VQ Series Vane Pump	421526-1	14 Tooth SAE C Splined	5.96	30	46	Opposite Outlet	CW	3000	2500 RPM
35VQ25A-1A20-L 35VQ Series Vane Pump	421527-1	1-1/4 straight Keyed	4.98	25	38.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ35A-1A20-L 35VQ Series Vane Pump	421528-1	1-1/4 straight Keyed	6.88	35	53.6	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-1A20 35VQ Series Vane Pump	421529-1	1-1/4 straight Keyed	7.42	38	57	Opposite Outlet	CW	3000	2400 RPM
35VQ30A-1A20 35VQ Series Vane Pump	421555-1	1-1/4 straight Keyed	5.96	30	46	Opposite Outlet	CW	3000	2500 RPM
35VQ38A-11A20 35VQ Series Vane Pump	427765-1	14 Tooth SAE C Splined	7.42	38	57	Opposite Outlet	CW	3000	2400 RPM
35VQ25A-11A20 35VQ Series Vane Pump	427807-1	14 Tooth SAE C Splined	4.98	25	38.5	Opposite Outlet	CW	3000	2500 RPM
35VQ21A-1A20 35VQ Series Vane Pump	591391-1	1-1/4 straight Keyed	4.04	21	31.5	Opposite Outlet	CW	3000	2500 RPM

Product Questions & Answers (2)

Question by: Pete C on Apr 29, 2025, 9:44 PM

Got a dump truck running a 2-bolt SAE C mount setup. This the right pump to drop in there?

Answer by: Customer Support on May 1, 2025, 12:01 PM

For a 2-bolt SAE C mounting configuration, yes, this pump fits that bill directly. The 14-tooth SAE C splined shaft and the 2-bolt SAE C mounting flange are both standard on this unit, so it slots right into that style of setup. Port connections are SAE 4-bolt flange style, 2-inch on the inlet and 1-1/4-inch on the outlet, with the outlet sitting opposite the inlet. Dump truck applications are specifically listed for this series, so you're in the right place.

Question by: Warren R on Jun 19, 2025, 9:47 AM

got a 2-bolt SAE C mount already on the machine. is this pump set up to bolt right on and match those ports?

Answer by: Customer Support on Jun 20, 2025, 1:09 PM

For fitment, it is built around a 2-bolt SAE C mounting flange with a 14-tooth SAE C splined shaft. Porting is SAE 4-bolt flange style with a 2 inch inlet and a 1-1/4 inch outlet, and the outlet is positioned opposite the inlet for routing.
