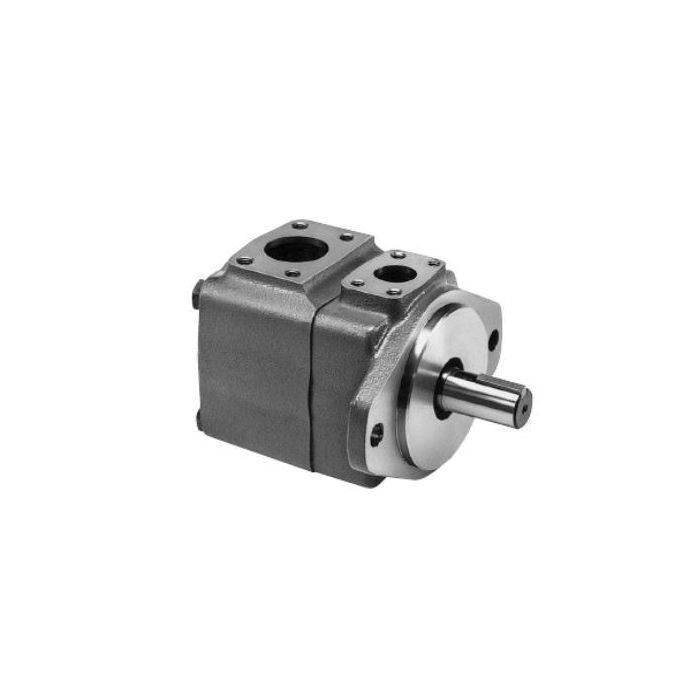

main product photo

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

Ask A Question

Description & Features

Rated for continuous duty at up to 3000 PSI and 2500 RPM, the Eaton Vickers 35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation is built to handle demanding high-pressure, high-speed hydraulic circuits. With a displacement of 4.98 in³/rev and a rated flow of 38.5 GPM, this single vane pump delivers strong volumetric efficiency across a wide range of industrial applications.

Mounting follows a 2-bolt SAE C flange configuration, with SAE 4-bolt flange ports sized at 2" inlet and 1-1/4" outlet. The inlet port is located 90 degrees clockwise from the outlet, and the pump runs in clockwise rotation. Buna-N seals are standard. Common applications include metal cutting machinery, dump trucks, wheel loaders, plastic injection molding equipment, and oil and gas service. The pump is marketed under the Danfoss Power Solutions brand in updated product lines.

SKU: 421527-2

Supplier Part Number (MPN): 421527-2

Alternate Part Numbers: C1KA43

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
4.98
Displacement
4.98
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
90 deg CW from Outlet
Rated Flow
38.50
Rated Flow
38.5
Ring Size
25
Ring Size
25
Rotation
CW
Seal Material
Buna-N
Series
35VQ
Shaft
1-1/4 straight Keyed
Shaft
1-1/4 Straight Keyed
Special Features
None
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
421527-2
Alternate Part Numbers
Alternate Part Number C1KA43, Alternate Part Number MINO-00900X55990
Product Weight
50.00 lbs
