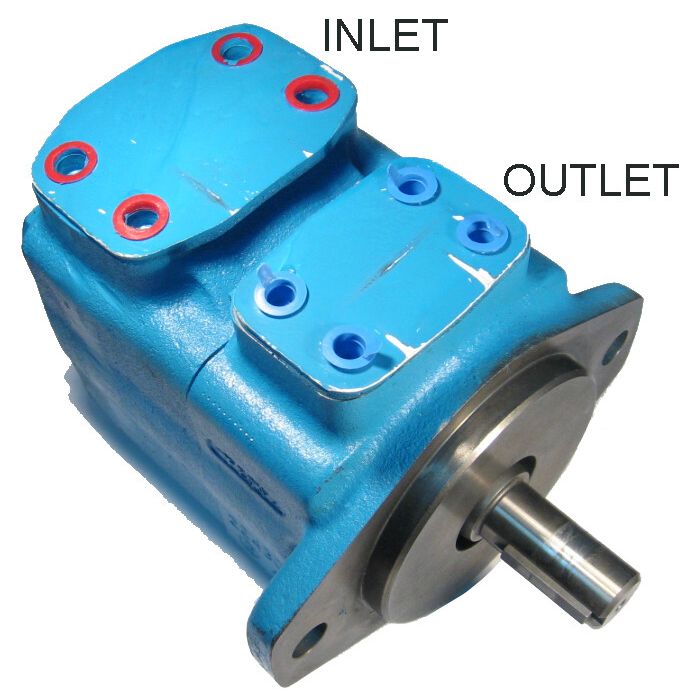

main product photo

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

Ask A Question

Description & Features

Rated for continuous duty in demanding industrial environments, the 35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation is an Eaton Vickers single vane pump built for high-pressure, high-speed hydraulic service. With a maximum pressure rating of 3000 PSI and a rated flow of 38.5 GPM at 2500 RPM, it suits applications in metal cutting, plastic injection molding, dump trucks, wheel loaders, and oil and gas equipment.

The pump features a 2-bolt SAE C mounting flange and SAE 4-bolt flange ports sized at 2" inlet and 1-1/4" outlet. Clockwise rotation and a displacement of 4.98 in³/rev define its operating profile. Buna-N seals are standard. The 35VQ Series is recognized for strong volumetric efficiency and extended service life under sustained load conditions.

SKU: 421527-4

Supplier Part Number (MPN): 421527-4

Alternate Part Numbers: C1KA44

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
4.98
Displacement
4.98
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
90 deg CCW from Outlet
Rated Flow
38.50
Rated Flow
38.5
Ring Size
25
Ring Size
25
Rotation
CW
Seal Material
Buna-N
Series
35VQ
Shaft
1-1/4 straight Keyed
Shaft
1-1/4 Straight Keyed
Special Features
None
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
421527-4
Alternate Part Numbers
Alternate Part Number C1KA44, Alternate Part Number MINO-00900X55991
Product Weight
50.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ35A-11B20 35VQ Series Vane Pump

419330-2

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ35A-11C20 35VQ Series Vane Pump

419330-3

14 Tooth SAE C Splined

6.88

35

53.6

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ35A-11D20 35VQ Series Vane Pump

419330-4

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ35A-11A20-L 35VQ Series Vane Pump

419330-5

14 Tooth SAE C Splined

6.88

35

53.6

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ35A-11B20-L 35VQ Series Vane Pump

419330-6

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ35A-11C20-L 35VQ Series Vane Pump

419330-7

14 Tooth SAE C Splined

6.88

35

53.6

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ35A-11D20-L 35VQ Series Vane Pump

419330-8

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CCW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ21A-11B20 35VQ Series Vane Pump

420995-2

14 Tooth SAE C Splined

4.04

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ21A-11C20 35VQ Series Vane Pump

420995-3

14 Tooth SAE C Splined

4.04

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ21A-11D20 35VQ Series Vane Pump

420995-4

14 Tooth SAE C Splined

4.04

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ21A-11A20-L 35VQ Series Vane Pump

420995-5

14 Tooth SAE C Splined

4.04

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ21A-11C20-L 35VQ Series Vane Pump

420995-7

14 Tooth SAE C Splined

4.04

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ30A-11B20 35VQ Series Vane Pump

421526-2

14 Tooth SAE C Splined

5.96

30

46

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ30A-11C20 35VQ Series Vane Pump

421526-3

14 Tooth SAE C Splined

5.96

30

46

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ30A-11D20 35VQ Series Vane Pump

421526-4

14 Tooth SAE C Splined

5.96

30

46

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ30A-11A20-L 35VQ Series Vane Pump

421526-5

14 Tooth SAE C Splined

5.96

30

46

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ30A-11B20-L 35VQ Series Vane Pump

421526-6

14 Tooth SAE C Splined

5.96

30

46

90 deg CW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ30A-11C20-L 35VQ Series Vane Pump

421526-7

14 Tooth SAE C Splined

5.96

30

46

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ30A-11D20-L 35VQ Series Vane Pump

421526-8

14 Tooth SAE C Splined

5.96

30

46

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ25A-1B20 35VQ Series Vane Pump

421527-2

1-1/4 straight Keyed

4.98

25

38.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ25A-1C20 35VQ Series Vane Pump

421527-3

1-1/4 straight Keyed

4.98

25

38.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ25A-1D20 35VQ Series Vane Pump

421527-4

1-1/4 straight Keyed

4.98

25

38.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ25A-1A20 35VQ Series Vane Pump

421527-5

1-1/4 straight Keyed

4.98

25

38.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ25A-1C20-L 35VQ Series Vane Pump

421527-7

1-1/4 straight Keyed

4.98

25

38.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ35A-1C20-L 35VQ Series Vane Pump

421528-3

1-1/4 straight Keyed

6.88

35

53.6

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ30A-1C20 35VQ Series Vane Pump

421555-3

1-1/4 straight Keyed

5.96

30

46

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ30A-1D20 35VQ Series Vane Pump

421555-4

1-1/4 straight Keyed

5.96

30

46

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ30A-1A20-L 35VQ Series Vane Pump

421555-5

1-1/4 straight Keyed

5.96

30

46

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ30A-1C20-L 35VQ Series Vane Pump

421555-7

1-1/4 straight Keyed

5.96

30

46

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ30A-1D20-L 35VQ Series Vane Pump

421555-8

1-1/4 straight Keyed

5.96

30

46

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ38A-11B20 35VQ Series Vane Pump

427765-2

14 Tooth SAE C Splined

7.42

38

57

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ38A-11C20 35VQ Series Vane Pump

427765-3

14 Tooth SAE C Splined

7.42

38

57

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ38A-11D20 35VQ Series Vane Pump

427765-4

14 Tooth SAE C Splined

7.42

38

57

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ38A-11A20-L 35VQ Series Vane Pump

427765-5

14 Tooth SAE C Splined

7.42

38

57

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ38A-11B20-L 35VQ Series Vane Pump

427765-7

14 Tooth SAE C Splined

7.42

38

57

90 deg CW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ25A-11B20 35VQ Series Vane Pump

427807-2

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ25A-11C20 35VQ Series Vane Pump

427807-3

14 Tooth SAE C Splined

4.98

25

38.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ25A-11D20 35VQ Series Vane Pump

427807-4

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ25A-11A20-L 35VQ Series Vane Pump

427807-5

14 Tooth SAE C Splined

4.98

25

38.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ25A-11B20-L 35VQ Series Vane Pump

427807-6

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ25A-11C20-L 35VQ Series Vane Pump

427807-7

14 Tooth SAE C Splined

4.98

25

38.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ25A-11D20-L 35VQ Series Vane Pump

427807-8

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ21A-1B20 35VQ Series Vane Pump

591391-2

1-1/4 straight Keyed

4.04

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ21A-1C20 35VQ Series Vane Pump

591391-3

1-1/4 straight Keyed

4.04

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ21A-1D20 35VQ Series Vane Pump

591391-4

1-1/4 straight Keyed

4.04

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ21A-1A20-L 35VQ Series Vane Pump

591391-5

1-1/4 straight Keyed

4.04

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ21A-1C20-L 35VQ Series Vane Pump

591391-7

1-1/4 straight Keyed

4.04

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ35A-1B20 35VQ Series Vane Pump

421528-2

1-1/4 straight Keyed

6.88

35

53.6

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ35A-1D20 35VQ Series Vane Pump

421528-4

1-1/4 straight Keyed

6.88

35

53.6

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ35A-1A20 35VQ Series Vane Pump

421528-5

1-1/4 straight Keyed

6.88

35

53.6

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ35A-1C20 35VQ Series Vane Pump

421528-7

1-1/4 straight Keyed

6.88

35

53.6

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ38A-1B20 35VQ Series Vane Pump

421529-2

1-1/4 straight Keyed

7.42

38

57

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ38A-1C20 35VQ Series Vane Pump

421529-3

1-1/4 straight Keyed

7.42

38

57

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ38A-1D20 35VQ Series Vane Pump

421529-4

1-1/4 straight Keyed

7.42

38

57

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ38A-1A20-L 35VQ Series Vane Pump

421529-5

1-1/4 straight Keyed

7.42

38

57

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ38A-1C20-L 35VQ Series Vane Pump

421529-7

1-1/4 straight Keyed

7.42

38

57

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ30A-1B20 35VQ Series Vane Pump

421555-2

1-1/4 straight Keyed

5.96

30

46

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ35A-11A20 35VQ Series Vane Pump

419330-1

14 Tooth SAE C Splined

6.88

35

53.6

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ21A-11A20 35VQ Series Vane Pump

420995-1

14 Tooth SAE C Splined

4.04

21

31.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ30A-11A20 35VQ Series Vane Pump

421526-1

14 Tooth SAE C Splined

5.96

30

46

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ25A-1A20-L 35VQ Series Vane Pump

421527-1

1-1/4 straight Keyed

4.98

25

38.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ35A-1A20-L 35VQ Series Vane Pump

421528-1

1-1/4 straight Keyed

6.88

35

53.6

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ38A-1A20 35VQ Series Vane Pump

421529-1

1-1/4 straight Keyed

7.42

38

57

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ30A-1A20 35VQ Series Vane Pump

421555-1

1-1/4 straight Keyed

5.96

30

46

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ38A-11A20 35VQ Series Vane Pump

427765-1

14 Tooth SAE C Splined

7.42

38

57

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ25A-11A20 35VQ Series Vane Pump

427807-1

14 Tooth SAE C Splined

4.98

25

38.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ21A-1A20 35VQ Series Vane Pump

591391-1

1-1/4 straight Keyed

4.04

21

31.5

Opposite Outlet

CW

3000

2500 RPM

Product Questions & Answers (3)

Question by: Dale K on Nov 20, 2025, 8:51 PM
got a dump truck setup and need a CW pump. is this one clockwise and what kinda pressure can it handle
Answer by: Customer Support on Nov 22, 2025, 6:19 AM
For rotation and limits, this unit is a CW rotation vane pump with a maximum pressure rating of 3000 psi.
Question by: Roy F on Jul 16, 2025, 6:29 AM
Does this pump run clockwise, and is the inlet a 2-inch SAE port? Trying to make sure it'll match up with what we already got plumbed in.
Answer by: Customer Support on Jul 17, 2025, 8:59 PM
Clockwise rotation, yes, and the inlet is a 2-inch SAE 4-bolt flange port. The outlet runs 1-1/4 inch, also on a 4-bolt SAE flange, positioned 90 degrees counterclockwise from the inlet. Mounting is a 2-bolt SAE C flange. If your existing hydraulic connections matches that layout, you should be good to go.
Question by: Steve L on Dec 29, 2025, 7:28 PM
What kind of applications does this pump work best in?
Answer by: Customer Support on Dec 31, 2025, 6:02 AM
This Eaton Vickers vane pump is well-suited for applications like oil and gas, metal cutting, dump trucks, wheel loaders, and plastic injection molding.
