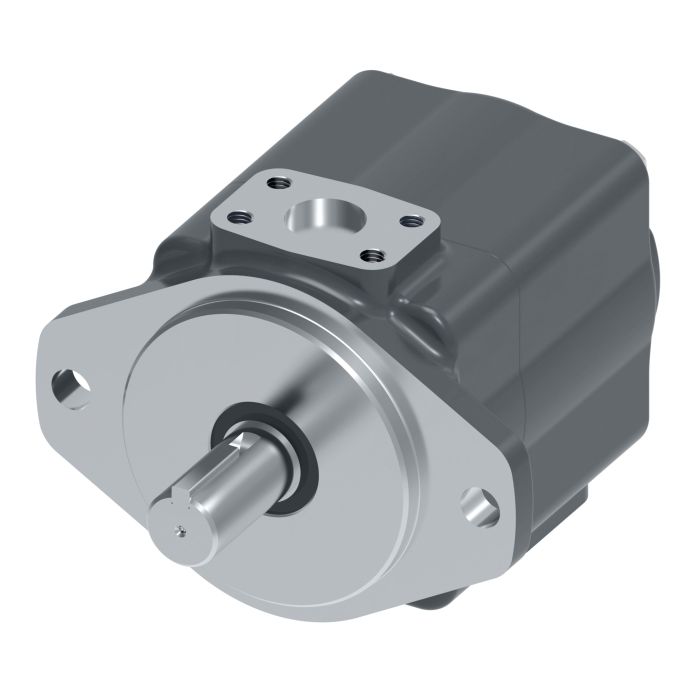

main product photo

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

Ask A Question

Description & Features

This Eaton Vickers 35VQ Series Vane Pump is designed for demanding high-pressure, high-speed applications, delivering longer operating life and outstanding volumetric efficiency. With a 35 ring size and CCW rotation, this single vane pump is suitable for use in oil and gas, metal cutting, dump truck, wheel loader, and plastic injection molding applications.

Features include a 1-1/4 straight keyed shaft and opposite outlet port location. It has a 2-bolt SAE C mounting flange and SAE 4-bolt flange ports with 2" inlet and 1-1/4" outlet. It is rated to a maximum pressure of 3000 PSI and a speed rating of 2400 RPM. The seal material is Buna-N.

SKU: 421528-1

Supplier Part Number (MPN): 421528-1

Alternate Part Numbers: 35VQ35A1A20, C1BP82

Specifications

Brand
Vickers by Danfoss
Cartridge Type
20 Design
Dimensions
10.24 in L x 8.38 in W x 6.15 in H
Displacement io
6.88
Drive Shaft Type
Straight Keyed
Grp Specifications
2-Bolt SAE C Mounting Flanged, SAE 4-Bolt Flanged Port, 2 in Inlet x 1-1/4 in Outlet
Housing Material
Iron
Maximum Operating Pressure
3000 psi
Mounting Type
Flanged
Port Location
Opposite Outlet
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Series
35VQ Series
Vane Type
Fixed Displacement and Balanced

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ35A-11B20 35VQ Series Vane Pump

419330-2

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ35A-11C20 35VQ Series Vane Pump

419330-3

14 Tooth SAE C Splined

6.88

35

53.6

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ35A-11D20 35VQ Series Vane Pump

419330-4

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ35A-11A20-L 35VQ Series Vane Pump

419330-5

14 Tooth SAE C Splined

6.88

35

53.6

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ35A-11B20-L 35VQ Series Vane Pump

419330-6

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ35A-11C20-L 35VQ Series Vane Pump

419330-7

14 Tooth SAE C Splined

6.88

35

53.6

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ35A-11D20-L 35VQ Series Vane Pump

419330-8

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CCW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ21A-11B20 35VQ Series Vane Pump

420995-2

14 Tooth SAE C Splined

4.04

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ21A-11C20 35VQ Series Vane Pump

420995-3

14 Tooth SAE C Splined

4.04

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ21A-11D20 35VQ Series Vane Pump

420995-4

14 Tooth SAE C Splined

4.04

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ21A-11A20-L 35VQ Series Vane Pump

420995-5

14 Tooth SAE C Splined

4.04

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ21A-11C20-L 35VQ Series Vane Pump

420995-7

14 Tooth SAE C Splined

4.04

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ30A-11B20 35VQ Series Vane Pump

421526-2

14 Tooth SAE C Splined

5.96

30

46

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ30A-11C20 35VQ Series Vane Pump

421526-3

14 Tooth SAE C Splined

5.96

30

46

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ30A-11D20 35VQ Series Vane Pump

421526-4

14 Tooth SAE C Splined

5.96

30

46

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ30A-11A20-L 35VQ Series Vane Pump

421526-5

14 Tooth SAE C Splined

5.96

30

46

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ30A-11B20-L 35VQ Series Vane Pump

421526-6

14 Tooth SAE C Splined

5.96

30

46

90 deg CW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ30A-11C20-L 35VQ Series Vane Pump

421526-7

14 Tooth SAE C Splined

5.96

30

46

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ30A-11D20-L 35VQ Series Vane Pump

421526-8

14 Tooth SAE C Splined

5.96

30

46

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ25A-1B20 35VQ Series Vane Pump

421527-2

1-1/4 straight Keyed

4.98

25

38.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ25A-1C20 35VQ Series Vane Pump

421527-3

1-1/4 straight Keyed

4.98

25

38.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ25A-1D20 35VQ Series Vane Pump

421527-4

1-1/4 straight Keyed

4.98

25

38.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ25A-1A20 35VQ Series Vane Pump

421527-5

1-1/4 straight Keyed

4.98

25

38.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ25A-1C20-L 35VQ Series Vane Pump

421527-7

1-1/4 straight Keyed

4.98

25

38.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ35A-1C20-L 35VQ Series Vane Pump

421528-3

1-1/4 straight Keyed

6.88

35

53.6

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ30A-1C20 35VQ Series Vane Pump

421555-3

1-1/4 straight Keyed

5.96

30

46

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ30A-1D20 35VQ Series Vane Pump

421555-4

1-1/4 straight Keyed

5.96

30

46

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ30A-1A20-L 35VQ Series Vane Pump

421555-5

1-1/4 straight Keyed

5.96

30

46

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ30A-1C20-L 35VQ Series Vane Pump

421555-7

1-1/4 straight Keyed

5.96

30

46

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ30A-1D20-L 35VQ Series Vane Pump

421555-8

1-1/4 straight Keyed

5.96

30

46

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ38A-11B20 35VQ Series Vane Pump

427765-2

14 Tooth SAE C Splined

7.42

38

57

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ38A-11C20 35VQ Series Vane Pump

427765-3

14 Tooth SAE C Splined

7.42

38

57

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ38A-11D20 35VQ Series Vane Pump

427765-4

14 Tooth SAE C Splined

7.42

38

57

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ38A-11A20-L 35VQ Series Vane Pump

427765-5

14 Tooth SAE C Splined

7.42

38

57

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ38A-11B20-L 35VQ Series Vane Pump

427765-7

14 Tooth SAE C Splined

7.42

38

57

90 deg CW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ25A-11B20 35VQ Series Vane Pump

427807-2

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ25A-11C20 35VQ Series Vane Pump

427807-3

14 Tooth SAE C Splined

4.98

25

38.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ25A-11D20 35VQ Series Vane Pump

427807-4

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ25A-11A20-L 35VQ Series Vane Pump

427807-5

14 Tooth SAE C Splined

4.98

25

38.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ25A-11B20-L 35VQ Series Vane Pump

427807-6

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ25A-11C20-L 35VQ Series Vane Pump

427807-7

14 Tooth SAE C Splined

4.98

25

38.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ25A-11D20-L 35VQ Series Vane Pump

427807-8

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ21A-1B20 35VQ Series Vane Pump

591391-2

1-1/4 straight Keyed

4.04

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ21A-1C20 35VQ Series Vane Pump

591391-3

1-1/4 straight Keyed

4.04

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ21A-1D20 35VQ Series Vane Pump

591391-4

1-1/4 straight Keyed

4.04

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ21A-1A20-L 35VQ Series Vane Pump

591391-5

1-1/4 straight Keyed

4.04

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ21A-1C20-L 35VQ Series Vane Pump

591391-7

1-1/4 straight Keyed

4.04

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ35A-1B20 35VQ Series Vane Pump

421528-2

1-1/4 straight Keyed

6.88

35

53.6

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ35A-1D20 35VQ Series Vane Pump

421528-4

1-1/4 straight Keyed

6.88

35

53.6

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ35A-1A20 35VQ Series Vane Pump

421528-5

1-1/4 straight Keyed

6.88

35

53.6

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ35A-1C20 35VQ Series Vane Pump

421528-7

1-1/4 straight Keyed

6.88

35

53.6

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ38A-1B20 35VQ Series Vane Pump

421529-2

1-1/4 straight Keyed

7.42

38

57

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ38A-1C20 35VQ Series Vane Pump

421529-3

1-1/4 straight Keyed

7.42

38

57

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ38A-1D20 35VQ Series Vane Pump

421529-4

1-1/4 straight Keyed

7.42

38

57

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ38A-1A20-L 35VQ Series Vane Pump

421529-5

1-1/4 straight Keyed

7.42

38

57

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ38A-1C20-L 35VQ Series Vane Pump

421529-7

1-1/4 straight Keyed

7.42

38

57

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ30A-1B20 35VQ Series Vane Pump

421555-2

1-1/4 straight Keyed

5.96

30

46

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ35A-11A20 35VQ Series Vane Pump

419330-1

14 Tooth SAE C Splined

6.88

35

53.6

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ21A-11A20 35VQ Series Vane Pump

420995-1

14 Tooth SAE C Splined

4.04

21

31.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ30A-11A20 35VQ Series Vane Pump

421526-1

14 Tooth SAE C Splined

5.96

30

46

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ25A-1A20-L 35VQ Series Vane Pump

421527-1

1-1/4 straight Keyed

4.98

25

38.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ38A-1A20 35VQ Series Vane Pump

421529-1

1-1/4 straight Keyed

7.42

38

57

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ30A-1A20 35VQ Series Vane Pump

421555-1

1-1/4 straight Keyed

5.96

30

46

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ38A-11A20 35VQ Series Vane Pump

427765-1

14 Tooth SAE C Splined

7.42

38

57

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ25A-11A20 35VQ Series Vane Pump

427807-1

14 Tooth SAE C Splined

4.98

25

38.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ21A-1A20 35VQ Series Vane Pump

591391-1

1-1/4 straight Keyed

4.04

21

31.5

Opposite Outlet

CW

3000

2500 RPM

Product Questions & Answers (1)

Question by: Steve A on May 2, 2025, 12:55 PM
Will this here pump hold up okay in a dump truck application?
Answer by: Customer Support on May 4, 2025, 6:08 AM
This Eaton Vickers vane pump is definitely up to the task. It's built for demanding, high-pressure jobs, making it suitable for dump trucks, among other heavy-duty applications.

Tell us what you need and we'll get back to you.

Fields marked * are required.
