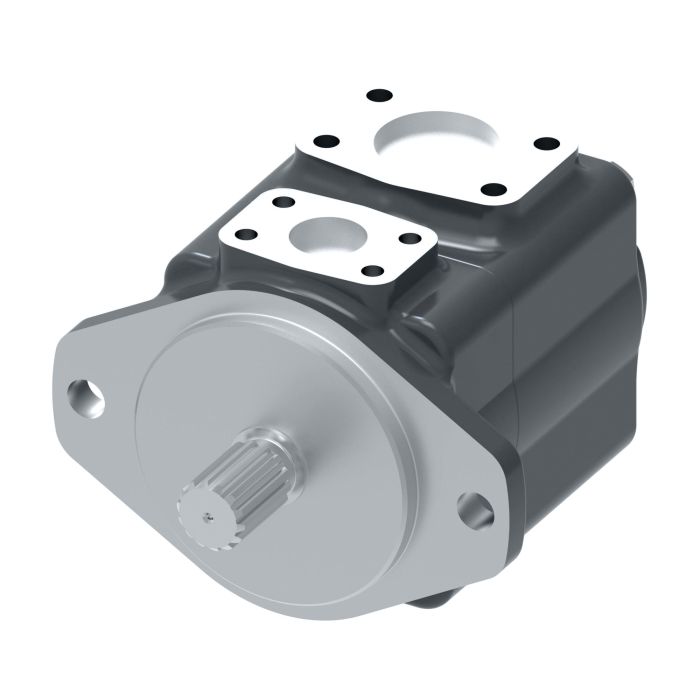

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

Description & Features

Rated for continuous duty at up to 3000 PSI and 2400 RPM, this Eaton Vickers 35VQ Series Vane Pump is built for demanding high-pressure, high-speed hydraulic circuits. The 35 ring size configuration delivers a displacement of 6.88 in³/rev with a rated flow of 53.6 GPM, making it well-suited for metal cutting machinery, plastic injection molding equipment, dump trucks, and wheel loaders.

The pump features a 1-1/4" straight keyed shaft with counterclockwise rotation and inlet/outlet ports positioned in-line. Mounting is via a 2-bolt SAE C flange, with SAE 4-bolt flange ports sized at 2" inlet and 1-1/4" outlet. Buna-N seals are standard. The 35VQ Series Vane Pump is a Danfoss Power Solutions platform product, formerly marketed under the Eaton Vickers brand.

SKU: 421528-3

Supplier Part Number (MPN): 421528-3

Alternate Part Numbers: 35VQ35A1C20, C1EH31

Specifications

Brand
Vickers by Danfoss
Cartridge Type
20 Design
Dimensions
10.24 in L x 8.38 in W x 6.15 in H
Displacement io
6.88
Drive Shaft Type
Straight Keyed
Grp Specifications
2-Bolt SAE C Mounting Flanged, SAE 4-Bolt Flanged Port, 2 in Inlet x 1-1/4 in Outlet
Housing Material
Iron
Maximum Operating Pressure
3000 psi
Mounting Type
Flanged
Port Location
In-Line with Outlet
Rotation Direction
Counterclockwise
Seal Material
Buna-N
Series
35VQ Series
Vane Type
Fixed Displacement and Balanced
