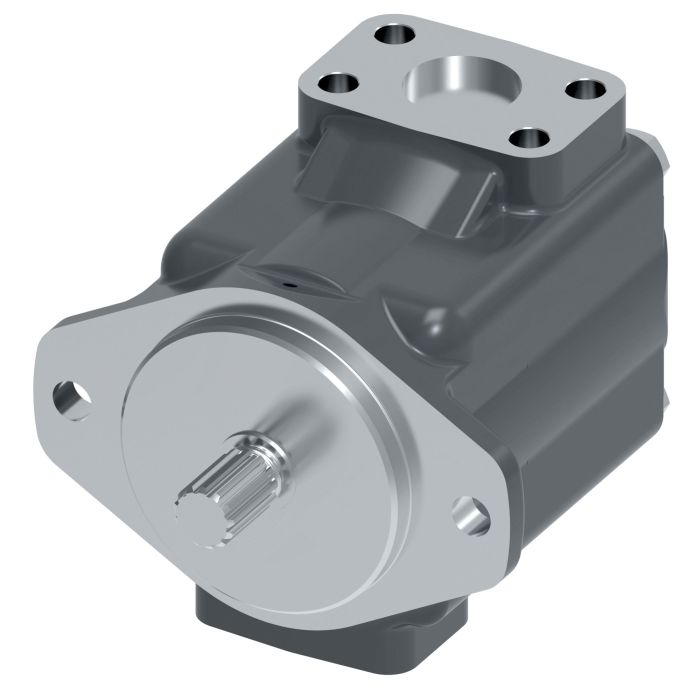

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

Description & Features

Designed for high-pressure, high-speed hydraulic circuits, the 35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation is a single vane pump rated to 3000 PSI with a displacement of 7.42 and a rated flow of 57 GPM at up to 2400 RPM. The clockwise-rotation configuration features a 14-tooth SAE C splined shaft and a 2-bolt SAE C mounting flange for straightforward integration into standard hydraulic systems.

Port connections are SAE 4-bolt flange style, 2" inlet and 1-1/4" outlet, positioned at opposite sides of the pump body. Buna-N seals are standard. This pump is well suited for demanding applications including metal cutting equipment, plastic injection molding machinery, dump trucks, wheel loaders, and oil and gas service. The 35VQ Series is engineered for long service life and strong volumetric efficiency across its rated operating range.

SKU: 427765-1

Supplier Part Number (MPN): 427765-1

Specifications

Application Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding	Displacement 7.42	Displacement 7.42	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Longer operating life\|Oustanding volumetric efficiency\|Built for high-pressure, high-speed applications	Maximum Pressure 3000	Maximum Pressure 3000	Port Location Opposite Outlet	Rated Flow 57	Rated Flow 57	Ring Size 38	Ring Size 38	Rotation CW	Seal Material Buna-N	Series 35VQ	Shaft 14 Tooth SAE C Splined	Shaft 14 Tooth SAE C Splined	Special Features None	Speed Rating 2400 RPM	Speed Rating 2400 RPM	Supplier Part Number 427765-1	Alternate Part Numbers Alternate Part Number MINO-00900H61133	Product Weight 50.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
35VQ35A-11B20 35VQ Series Vane Pump	419330-2	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ35A-11C20 35VQ Series Vane Pump	419330-3	14 Tooth SAE C Splined	6.88	35	53.6	in-Line with Outlet	CW	3000	2400 RPM
35VQ35A-11D20 35VQ Series Vane Pump	419330-4	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ35A-11A20-L 35VQ Series Vane Pump	419330-5	14 Tooth SAE C Splined	6.88	35	53.6	Opposite Outlet	CCW	3000	2400 RPM
35VQ35A-11B20-L 35VQ Series Vane Pump	419330-6	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CW from Outlet	CCW	3000	2400 RPM
35VQ35A-11C20-L 35VQ Series Vane Pump	419330-7	14 Tooth SAE C Splined	6.88	35	53.6	in-Line with Outlet	CCW	3000	2400 RPM
35VQ35A-11D20-L 35VQ Series Vane Pump	419330-8	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CCW from Outlet	CCW	3000	2400 RPM
35VQ21A-11B20 35VQ Series Vane Pump	420995-2	14 Tooth SAE C Splined	4.04	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ21A-11C20 35VQ Series Vane Pump	420995-3	14 Tooth SAE C Splined	4.04	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ21A-11D20 35VQ Series Vane Pump	420995-4	14 Tooth SAE C Splined	4.04	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ21A-11A20-L 35VQ Series Vane Pump	420995-5	14 Tooth SAE C Splined	4.04	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ21A-11C20-L 35VQ Series Vane Pump	420995-7	14 Tooth SAE C Splined	4.04	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-11B20 35VQ Series Vane Pump	421526-2	14 Tooth SAE C Splined	5.96	30	46	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ30A-11C20 35VQ Series Vane Pump	421526-3	14 Tooth SAE C Splined	5.96	30	46	in-Line with Outlet	CW	3000	2500 RPM
35VQ30A-11D20 35VQ Series Vane Pump	421526-4	14 Tooth SAE C Splined	5.96	30	46	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ30A-11A20-L 35VQ Series Vane Pump	421526-5	14 Tooth SAE C Splined	5.96	30	46	Opposite Outlet	CCW	3000	2500 RPM
35VQ30A-11B20-L 35VQ Series Vane Pump	421526-6	14 Tooth SAE C Splined	5.96	30	46	90 deg CW from Outlet	CCW	3000	2500 RPM
35VQ30A-11C20-L 35VQ Series Vane Pump	421526-7	14 Tooth SAE C Splined	5.96	30	46	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-11D20-L 35VQ Series Vane Pump	421526-8	14 Tooth SAE C Splined	5.96	30	46	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ25A-1B20 35VQ Series Vane Pump	421527-2	1-1/4 straight Keyed	4.98	25	38.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ25A-1C20 35VQ Series Vane Pump	421527-3	1-1/4 straight Keyed	4.98	25	38.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ25A-1D20 35VQ Series Vane Pump	421527-4	1-1/4 straight Keyed	4.98	25	38.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ25A-1A20 35VQ Series Vane Pump	421527-5	1-1/4 straight Keyed	4.98	25	38.5	Opposite Outlet	CW	3000	2500 RPM
35VQ25A-1C20-L 35VQ Series Vane Pump	421527-7	1-1/4 straight Keyed	4.98	25	38.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ35A-1C20-L 35VQ Series Vane Pump	421528-3	1-1/4 straight Keyed	6.88	35	53.6	in-Line with Outlet	CCW	3000	2400 RPM
35VQ30A-1C20 35VQ Series Vane Pump	421555-3	1-1/4 straight Keyed	5.96	30	46	in-Line with Outlet	CW	3000	2500 RPM
35VQ30A-1D20 35VQ Series Vane Pump	421555-4	1-1/4 straight Keyed	5.96	30	46	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ30A-1A20-L 35VQ Series Vane Pump	421555-5	1-1/4 straight Keyed	5.96	30	46	Opposite Outlet	CCW	3000	2500 RPM
35VQ30A-1C20-L 35VQ Series Vane Pump	421555-7	1-1/4 straight Keyed	5.96	30	46	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-1D20-L 35VQ Series Vane Pump	421555-8	1-1/4 straight Keyed	5.96	30	46	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ38A-11B20 35VQ Series Vane Pump	427765-2	14 Tooth SAE C Splined	7.42	38	57	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ38A-11C20 35VQ Series Vane Pump	427765-3	14 Tooth SAE C Splined	7.42	38	57	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-11D20 35VQ Series Vane Pump	427765-4	14 Tooth SAE C Splined	7.42	38	57	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ38A-11A20-L 35VQ Series Vane Pump	427765-5	14 Tooth SAE C Splined	7.42	38	57	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-11B20-L 35VQ Series Vane Pump	427765-7	14 Tooth SAE C Splined	7.42	38	57	90 deg CW from Outlet	CCW	3000	2400 RPM
35VQ25A-11B20 35VQ Series Vane Pump	427807-2	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ25A-11C20 35VQ Series Vane Pump	427807-3	14 Tooth SAE C Splined	4.98	25	38.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ25A-11D20 35VQ Series Vane Pump	427807-4	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ25A-11A20-L 35VQ Series Vane Pump	427807-5	14 Tooth SAE C Splined	4.98	25	38.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ25A-11B20-L 35VQ Series Vane Pump	427807-6	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CW from Outlet	CCW	3000	2500 RPM
35VQ25A-11C20-L 35VQ Series Vane Pump	427807-7	14 Tooth SAE C Splined	4.98	25	38.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ25A-11D20-L 35VQ Series Vane Pump	427807-8	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ21A-1B20 35VQ Series Vane Pump	591391-2	1-1/4 straight Keyed	4.04	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ21A-1C20 35VQ Series Vane Pump	591391-3	1-1/4 straight Keyed	4.04	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ21A-1D20 35VQ Series Vane Pump	591391-4	1-1/4 straight Keyed	4.04	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ21A-1A20-L 35VQ Series Vane Pump	591391-5	1-1/4 straight Keyed	4.04	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ21A-1C20-L 35VQ Series Vane Pump	591391-7	1-1/4 straight Keyed	4.04	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ35A-1B20 35VQ Series Vane Pump	421528-2	1-1/4 straight Keyed	6.88	35	53.6	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ35A-1D20 35VQ Series Vane Pump	421528-4	1-1/4 straight Keyed	6.88	35	53.6	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ35A-1A20 35VQ Series Vane Pump	421528-5	1-1/4 straight Keyed	6.88	35	53.6	Opposite Outlet	CW	3000	2400 RPM
35VQ35A-1C20 35VQ Series Vane Pump	421528-7	1-1/4 straight Keyed	6.88	35	53.6	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-1B20 35VQ Series Vane Pump	421529-2	1-1/4 straight Keyed	7.42	38	57	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ38A-1C20 35VQ Series Vane Pump	421529-3	1-1/4 straight Keyed	7.42	38	57	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-1D20 35VQ Series Vane Pump	421529-4	1-1/4 straight Keyed	7.42	38	57	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ38A-1A20-L 35VQ Series Vane Pump	421529-5	1-1/4 straight Keyed	7.42	38	57	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-1C20-L 35VQ Series Vane Pump	421529-7	1-1/4 straight Keyed	7.42	38	57	in-Line with Outlet	CCW	3000	2400 RPM
35VQ30A-1B20 35VQ Series Vane Pump	421555-2	1-1/4 straight Keyed	5.96	30	46	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ35A-11A20 35VQ Series Vane Pump	419330-1	14 Tooth SAE C Splined	6.88	35	53.6	Opposite Outlet	CW	3000	2400 RPM
35VQ21A-11A20 35VQ Series Vane Pump	420995-1	14 Tooth SAE C Splined	4.04	21	31.5	Opposite Outlet	CW	3000	2500 RPM
35VQ30A-11A20 35VQ Series Vane Pump	421526-1	14 Tooth SAE C Splined	5.96	30	46	Opposite Outlet	CW	3000	2500 RPM
35VQ25A-1A20-L 35VQ Series Vane Pump	421527-1	1-1/4 straight Keyed	4.98	25	38.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ35A-1A20-L 35VQ Series Vane Pump	421528-1	1-1/4 straight Keyed	6.88	35	53.6	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-1A20 35VQ Series Vane Pump	421529-1	1-1/4 straight Keyed	7.42	38	57	Opposite Outlet	CW	3000	2400 RPM
35VQ30A-1A20 35VQ Series Vane Pump	421555-1	1-1/4 straight Keyed	5.96	30	46	Opposite Outlet	CW	3000	2500 RPM
35VQ38A-11A20 35VQ Series Vane Pump	427765-1	14 Tooth SAE C Splined	7.42	38	57	Opposite Outlet	CW	3000	2400 RPM
35VQ25A-11A20 35VQ Series Vane Pump	427807-1	14 Tooth SAE C Splined	4.98	25	38.5	Opposite Outlet	CW	3000	2500 RPM
35VQ21A-1A20 35VQ Series Vane Pump	591391-1	1-1/4 straight Keyed	4.04	21	31.5	Opposite Outlet	CW	3000	2500 RPM
