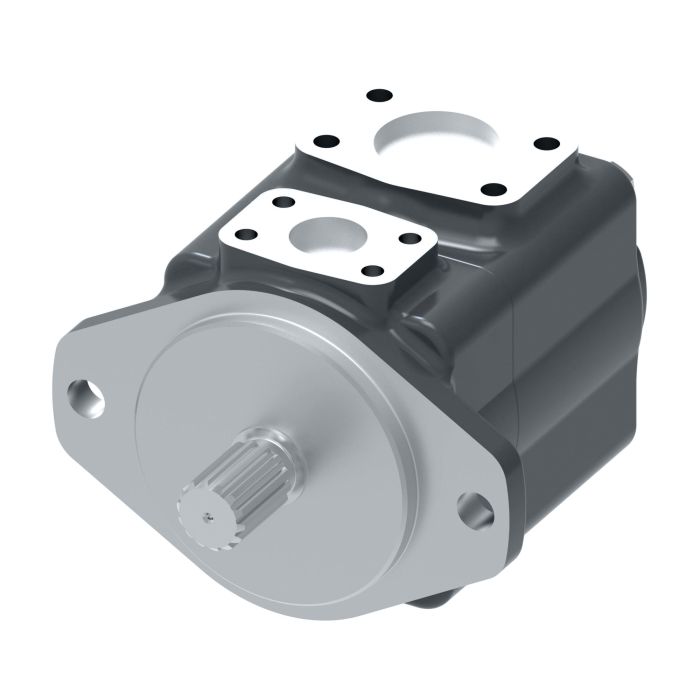

main product photo

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

Ask A Question

Description & Features

Engineered for demanding environments, the Eaton Vickers 35VQ Series Vane Pump excels in high-pressure and high-speed applications. With its 38 ring size and 14 tooth SAE C splined shaft, this pump provides outstanding volumetric efficiency, ensuring reliable performance in industries like oil and gas, metal cutting, and plastic injection molding. Its clockwise rotation and in-line outlet design enhance operational flexibility, while the Buna-N seal material offers robust durability under challenging conditions.

Designed with a 2-bolt SAE C mounting flange, this vane pump features SAE 4-bolt flange ports, accommodating a 2" inlet and 1-1/4" outlet. It operates efficiently at a maximum pressure of 3000 PSI and a speed rating of 2400 RPM, making it ideal for dump trucks and wheel loaders. Trust the exceptional quality of Danfoss Power Solutions for a vane pump that promises longer operating life and optimal productivity.

SKU: 427765-3

Supplier Part Number (MPN): 427765-3

Alternate Part Numbers: 35VQ38A11C20, C1EH34

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
7.42
Displacement
7.42
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
in-Line with Outlet
Rated Flow
57
Rated Flow
57
Ring Size
38
Ring Size
38
Rotation
CW
Seal Material
Buna-N
Series
35VQ
Shaft
14 Tooth SAE C Splined
Shaft
14 Tooth SAE C Splined
Special Features
None
Speed Rating
2400 RPM
Speed Rating
2400 RPM
Supplier Part Number
427765-3
Alternate Part Numbers
Alternate Part Number 35VQ38A11C20, Alternate Part Number C1EH34, Alternate Part Number MINO-00900X00821
Product Weight
50.00 lbs

Related Documents

Similar Products

Model Number Part Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Action
35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ35A-11B20 35VQ Series Vane Pump

419330-2

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ35A-11C20 35VQ Series Vane Pump

419330-3

14 Tooth SAE C Splined

6.88

35

53.6

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ35A-11D20 35VQ Series Vane Pump

419330-4

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ35A-11A20-L 35VQ Series Vane Pump

419330-5

14 Tooth SAE C Splined

6.88

35

53.6

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ35A-11B20-L 35VQ Series Vane Pump

419330-6

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ35A-11C20-L 35VQ Series Vane Pump

419330-7

14 Tooth SAE C Splined

6.88

35

53.6

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ35A-11D20-L 35VQ Series Vane Pump

419330-8

14 Tooth SAE C Splined

6.88

35

53.6

90 deg CCW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ21A-11B20 35VQ Series Vane Pump

420995-2

14 Tooth SAE C Splined

4.04

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ21A-11C20 35VQ Series Vane Pump

420995-3

14 Tooth SAE C Splined

4.04

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ21A-11D20 35VQ Series Vane Pump

420995-4

14 Tooth SAE C Splined

4.04

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ21A-11A20-L 35VQ Series Vane Pump

420995-5

14 Tooth SAE C Splined

4.04

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ21A-11C20-L 35VQ Series Vane Pump

420995-7

14 Tooth SAE C Splined

4.04

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ30A-11B20 35VQ Series Vane Pump

421526-2

14 Tooth SAE C Splined

5.96

30

46

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ30A-11C20 35VQ Series Vane Pump

421526-3

14 Tooth SAE C Splined

5.96

30

46

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ30A-11D20 35VQ Series Vane Pump

421526-4

14 Tooth SAE C Splined

5.96

30

46

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ30A-11A20-L 35VQ Series Vane Pump

421526-5

14 Tooth SAE C Splined

5.96

30

46

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ30A-11B20-L 35VQ Series Vane Pump

421526-6

14 Tooth SAE C Splined

5.96

30

46

90 deg CW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ30A-11C20-L 35VQ Series Vane Pump

421526-7

14 Tooth SAE C Splined

5.96

30

46

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ30A-11D20-L 35VQ Series Vane Pump

421526-8

14 Tooth SAE C Splined

5.96

30

46

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ25A-1B20 35VQ Series Vane Pump

421527-2

1-1/4 straight Keyed

4.98

25

38.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ25A-1C20 35VQ Series Vane Pump

421527-3

1-1/4 straight Keyed

4.98

25

38.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ25A-1D20 35VQ Series Vane Pump

421527-4

1-1/4 straight Keyed

4.98

25

38.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ25A-1A20 35VQ Series Vane Pump

421527-5

1-1/4 straight Keyed

4.98

25

38.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ25A-1C20-L 35VQ Series Vane Pump

421527-7

1-1/4 straight Keyed

4.98

25

38.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ35A-1C20-L 35VQ Series Vane Pump

421528-3

1-1/4 straight Keyed

6.88

35

53.6

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ30A-1C20 35VQ Series Vane Pump

421555-3

1-1/4 straight Keyed

5.96

30

46

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ30A-1D20 35VQ Series Vane Pump

421555-4

1-1/4 straight Keyed

5.96

30

46

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ30A-1A20-L 35VQ Series Vane Pump

421555-5

1-1/4 straight Keyed

5.96

30

46

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ30A-1C20-L 35VQ Series Vane Pump

421555-7

1-1/4 straight Keyed

5.96

30

46

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ30A-1D20-L 35VQ Series Vane Pump

421555-8

1-1/4 straight Keyed

5.96

30

46

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ38A-11B20 35VQ Series Vane Pump

427765-2

14 Tooth SAE C Splined

7.42

38

57

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ38A-11C20 35VQ Series Vane Pump

427765-3

14 Tooth SAE C Splined

7.42

38

57

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ38A-11D20 35VQ Series Vane Pump

427765-4

14 Tooth SAE C Splined

7.42

38

57

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ38A-11A20-L 35VQ Series Vane Pump

427765-5

14 Tooth SAE C Splined

7.42

38

57

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ38A-11B20-L 35VQ Series Vane Pump

427765-7

14 Tooth SAE C Splined

7.42

38

57

90 deg CW from Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ25A-11B20 35VQ Series Vane Pump

427807-2

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ25A-11C20 35VQ Series Vane Pump

427807-3

14 Tooth SAE C Splined

4.98

25

38.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ25A-11D20 35VQ Series Vane Pump

427807-4

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ25A-11A20-L 35VQ Series Vane Pump

427807-5

14 Tooth SAE C Splined

4.98

25

38.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

35VQ25A-11B20-L 35VQ Series Vane Pump

427807-6

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ25A-11C20-L 35VQ Series Vane Pump

427807-7

14 Tooth SAE C Splined

4.98

25

38.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

35VQ25A-11D20-L 35VQ Series Vane Pump

427807-8

14 Tooth SAE C Splined

4.98

25

38.5

90 deg CCW from Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ21A-1B20 35VQ Series Vane Pump

591391-2

1-1/4 straight Keyed

4.04

21

31.5

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ21A-1C20 35VQ Series Vane Pump

591391-3

1-1/4 straight Keyed

4.04

21

31.5

in-Line with Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ21A-1D20 35VQ Series Vane Pump

591391-4

1-1/4 straight Keyed

4.04

21

31.5

90 deg CCW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ21A-1A20-L 35VQ Series Vane Pump

591391-5

1-1/4 straight Keyed

4.04

21

31.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ21A-1C20-L 35VQ Series Vane Pump

591391-7

1-1/4 straight Keyed

4.04

21

31.5

in-Line with Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ35A-1B20 35VQ Series Vane Pump

421528-2

1-1/4 straight Keyed

6.88

35

53.6

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ35A-1D20 35VQ Series Vane Pump

421528-4

1-1/4 straight Keyed

6.88

35

53.6

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ35A-1A20 35VQ Series Vane Pump

421528-5

1-1/4 straight Keyed

6.88

35

53.6

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ35A-1C20 35VQ Series Vane Pump

421528-7

1-1/4 straight Keyed

6.88

35

53.6

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ38A-1B20 35VQ Series Vane Pump

421529-2

1-1/4 straight Keyed

7.42

38

57

90 deg CW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CW Rotation

35VQ38A-1C20 35VQ Series Vane Pump

421529-3

1-1/4 straight Keyed

7.42

38

57

in-Line with Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CW Rotation

35VQ38A-1D20 35VQ Series Vane Pump

421529-4

1-1/4 straight Keyed

7.42

38

57

90 deg CCW from Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ38A-1A20-L 35VQ Series Vane Pump

421529-5

1-1/4 straight Keyed

7.42

38

57

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet in-Line with Outlet, CCW Rotation

35VQ38A-1C20-L 35VQ Series Vane Pump

421529-7

1-1/4 straight Keyed

7.42

38

57

in-Line with Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet 90 deg CW from Outlet, CW Rotation

35VQ30A-1B20 35VQ Series Vane Pump

421555-2

1-1/4 straight Keyed

5.96

30

46

90 deg CW from Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ35A-11A20 35VQ Series Vane Pump

419330-1

14 Tooth SAE C Splined

6.88

35

53.6

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 21 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ21A-11A20 35VQ Series Vane Pump

420995-1

14 Tooth SAE C Splined

4.04

21

31.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ30A-11A20 35VQ Series Vane Pump

421526-1

14 Tooth SAE C Splined

5.96

30

46

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 25 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ25A-1A20-L 35VQ Series Vane Pump

421527-1

1-1/4 straight Keyed

4.98

25

38.5

Opposite Outlet

CCW

3000

2500 RPM

35VQ Series Vane Pump, 35 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CCW Rotation

35VQ35A-1A20-L 35VQ Series Vane Pump

421528-1

1-1/4 straight Keyed

6.88

35

53.6

Opposite Outlet

CCW

3000

2400 RPM

35VQ Series Vane Pump, 38 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ38A-1A20 35VQ Series Vane Pump

421529-1

1-1/4 straight Keyed

7.42

38

57

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 30 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ30A-1A20 35VQ Series Vane Pump

421555-1

1-1/4 straight Keyed

5.96

30

46

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ38A-11A20 35VQ Series Vane Pump

427765-1

14 Tooth SAE C Splined

7.42

38

57

Opposite Outlet

CW

3000

2400 RPM

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

35VQ25A-11A20 35VQ Series Vane Pump

427807-1

14 Tooth SAE C Splined

4.98

25

38.5

Opposite Outlet

CW

3000

2500 RPM

35VQ Series Vane Pump, 21 Ring Size, 1-1/4 straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

35VQ21A-1A20 35VQ Series Vane Pump

591391-1

1-1/4 straight Keyed

4.04

21

31.5

Opposite Outlet

CW

3000

2500 RPM

Product Questions & Answers (1)

Question by: Vince M on Feb 7, 2026, 9:56 PM
Will this pump fit in place of my old Vickers 35VQ? Looks about the same.
Answer by: Customer Support on Feb 9, 2026, 1:19 PM
Designed for drop-in replacement, the 35VQ series uses a standard 2-bolt SAE C mounting flange. Just confirm your port sizes; this one has 2" inlet and 1-1/4" outlet SAE 4-bolt flange ports.
