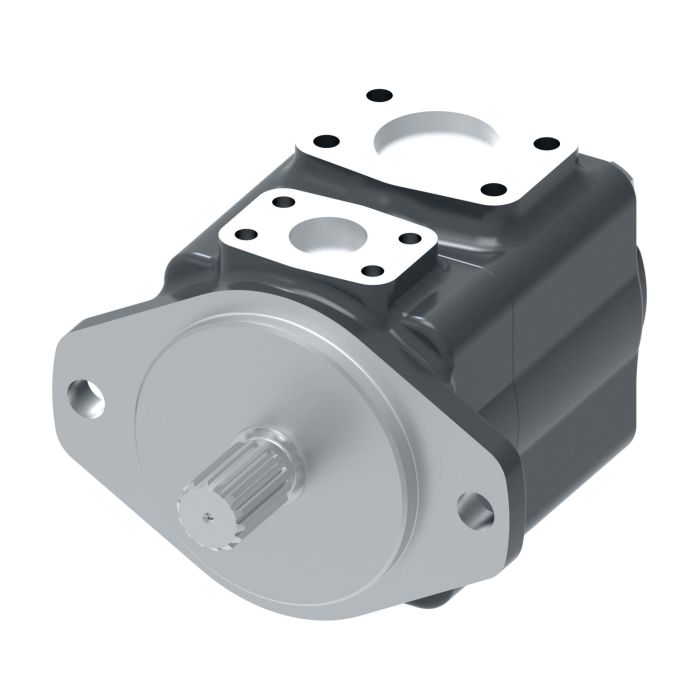

main product photo

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet in-Line with Outlet, CW Rotation

Ask A Question

Description & Features

The Eaton Vickers 35VQ Series Vane Pump is built for high-pressure and high-speed applications, delivering outstanding volumetric efficiency and a longer operating life. This single vane pump is suitable for use in metal cutting, oil and gas, dump truck, wheel loader, and plastic injection molding applications.

This 35VQ Series Vane Pump features a 25 ring size, 14 Tooth SAE C splined shaft, and CW rotation. It has a maximum pressure of 3000 PSI and a rated flow of 38.5 GPM at 2500 RPM. The pump has a 2-Bolt SAE C mounting flange, with SAE 4-Bolt flange ports measuring 2" for the inlet and 1-1/4" for the outlet, which is in-line with the outlet.

SKU: 427807-3

Supplier Part Number (MPN): 427807-3

Alternate Part Numbers: C1EH35

Specifications

Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
4.98
Displacement
4.98
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
in-Line with Outlet
Rated Flow
38.50
Rated Flow
38.5
Ring Size
25
Ring Size
25
Rotation
CW
Seal Material
None
Series
35VQ
Shaft
14 Tooth SAE C Splined
Shaft
14 Tooth SAE C Splined
Special Features
None
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
427807-3
Alternate Part Numbers
Alternate Part Number C1EH35, Alternate Part Number MINO-00900X10137
Product Weight
50.00 lbs
