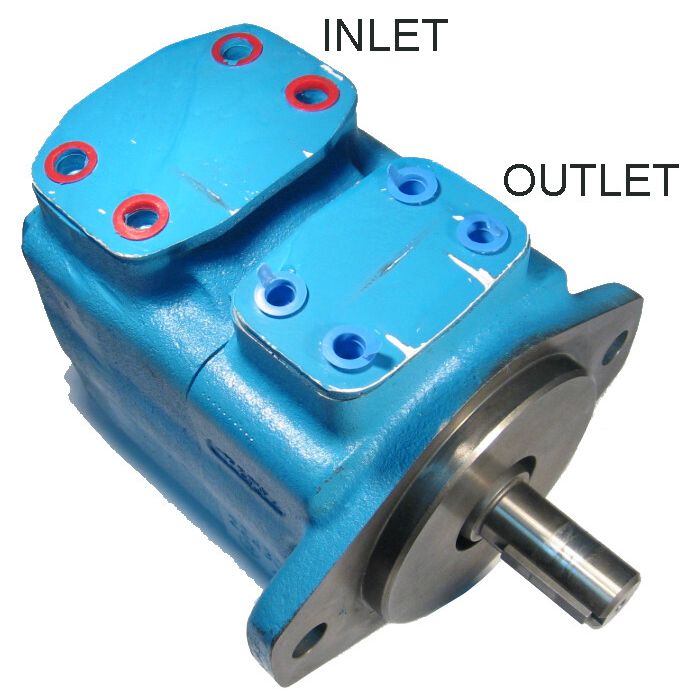

35VQ Series Vane Pump, 25 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet 90 deg CW from Outlet, CCW Rotation

Description & Features

Rated for continuous duty at up to 3000 PSI and 2500 RPM, this Eaton Vickers 35VQ Series Single Vane Pump is well-suited for demanding mobile and industrial hydraulic circuits requiring consistent, high-volume flow. The 25 ring size delivers a rated flow of 38.5 GPM at a displacement of 4.98 cubic inches per revolution, making it a capable choice for mid-to-high flow applications.

The pump features a 14-tooth SAE C splined shaft with a 2-bolt SAE C mounting flange and SAE 4-bolt flange ports, 2" inlet and 1-1/4" outlet. The inlet port is positioned 90 degrees clockwise from the outlet, and the unit is configured for counterclockwise shaft rotation. Model number 35VQ25A-11B20-L.

SKU: 427807-6

Supplier Part Number (MPN): 427807-6

Specifications

Displacement 4.98	Displacement 4.98	Brand DANFOSS POWER SOLUTIONS II LLC (VICKERS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Maximum Pressure 3000	Maximum Pressure 3000	Port Location 90 deg CW from Outlet	Rated Flow 38.50	Rated Flow 38.5	Ring Size 25	Ring Size 25	Rotation CCW	Shaft 14 Tooth SAE C Splined	Shaft 14 Tooth SAE C Splined	Speed Rating 2500 RPM	Speed Rating 2500 RPM	Supplier Part Number 427807-6	Alternate Part Numbers Alternate Part Number MINO-00900X56449	Product Weight 50.00 lbs

Similar Products

Model Number	Part Number	Shaft	Displacement	Ring Size	Rated Flow	Port Location	Rotation	Maximum Pressure	Speed Rating
35VQ35A-11B20 35VQ Series Vane Pump	419330-2	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ35A-11C20 35VQ Series Vane Pump	419330-3	14 Tooth SAE C Splined	6.88	35	53.6	in-Line with Outlet	CW	3000	2400 RPM
35VQ35A-11D20 35VQ Series Vane Pump	419330-4	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ35A-11A20-L 35VQ Series Vane Pump	419330-5	14 Tooth SAE C Splined	6.88	35	53.6	Opposite Outlet	CCW	3000	2400 RPM
35VQ35A-11B20-L 35VQ Series Vane Pump	419330-6	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CW from Outlet	CCW	3000	2400 RPM
35VQ35A-11C20-L 35VQ Series Vane Pump	419330-7	14 Tooth SAE C Splined	6.88	35	53.6	in-Line with Outlet	CCW	3000	2400 RPM
35VQ35A-11D20-L 35VQ Series Vane Pump	419330-8	14 Tooth SAE C Splined	6.88	35	53.6	90 deg CCW from Outlet	CCW	3000	2400 RPM
35VQ21A-11B20 35VQ Series Vane Pump	420995-2	14 Tooth SAE C Splined	4.04	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ21A-11C20 35VQ Series Vane Pump	420995-3	14 Tooth SAE C Splined	4.04	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ21A-11D20 35VQ Series Vane Pump	420995-4	14 Tooth SAE C Splined	4.04	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ21A-11A20-L 35VQ Series Vane Pump	420995-5	14 Tooth SAE C Splined	4.04	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ21A-11C20-L 35VQ Series Vane Pump	420995-7	14 Tooth SAE C Splined	4.04	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-11B20 35VQ Series Vane Pump	421526-2	14 Tooth SAE C Splined	5.96	30	46	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ30A-11C20 35VQ Series Vane Pump	421526-3	14 Tooth SAE C Splined	5.96	30	46	in-Line with Outlet	CW	3000	2500 RPM
35VQ30A-11D20 35VQ Series Vane Pump	421526-4	14 Tooth SAE C Splined	5.96	30	46	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ30A-11A20-L 35VQ Series Vane Pump	421526-5	14 Tooth SAE C Splined	5.96	30	46	Opposite Outlet	CCW	3000	2500 RPM
35VQ30A-11B20-L 35VQ Series Vane Pump	421526-6	14 Tooth SAE C Splined	5.96	30	46	90 deg CW from Outlet	CCW	3000	2500 RPM
35VQ30A-11C20-L 35VQ Series Vane Pump	421526-7	14 Tooth SAE C Splined	5.96	30	46	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-11D20-L 35VQ Series Vane Pump	421526-8	14 Tooth SAE C Splined	5.96	30	46	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ25A-1B20 35VQ Series Vane Pump	421527-2	1-1/4 straight Keyed	4.98	25	38.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ25A-1C20 35VQ Series Vane Pump	421527-3	1-1/4 straight Keyed	4.98	25	38.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ25A-1D20 35VQ Series Vane Pump	421527-4	1-1/4 straight Keyed	4.98	25	38.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ25A-1A20 35VQ Series Vane Pump	421527-5	1-1/4 straight Keyed	4.98	25	38.5	Opposite Outlet	CW	3000	2500 RPM
35VQ25A-1C20-L 35VQ Series Vane Pump	421527-7	1-1/4 straight Keyed	4.98	25	38.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ35A-1C20-L 35VQ Series Vane Pump	421528-3	1-1/4 straight Keyed	6.88	35	53.6	in-Line with Outlet	CCW	3000	2400 RPM
35VQ30A-1C20 35VQ Series Vane Pump	421555-3	1-1/4 straight Keyed	5.96	30	46	in-Line with Outlet	CW	3000	2500 RPM
35VQ30A-1D20 35VQ Series Vane Pump	421555-4	1-1/4 straight Keyed	5.96	30	46	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ30A-1A20-L 35VQ Series Vane Pump	421555-5	1-1/4 straight Keyed	5.96	30	46	Opposite Outlet	CCW	3000	2500 RPM
35VQ30A-1C20-L 35VQ Series Vane Pump	421555-7	1-1/4 straight Keyed	5.96	30	46	in-Line with Outlet	CCW	3000	2500 RPM
35VQ30A-1D20-L 35VQ Series Vane Pump	421555-8	1-1/4 straight Keyed	5.96	30	46	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ38A-11B20 35VQ Series Vane Pump	427765-2	14 Tooth SAE C Splined	7.42	38	57	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ38A-11C20 35VQ Series Vane Pump	427765-3	14 Tooth SAE C Splined	7.42	38	57	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-11D20 35VQ Series Vane Pump	427765-4	14 Tooth SAE C Splined	7.42	38	57	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ38A-11A20-L 35VQ Series Vane Pump	427765-5	14 Tooth SAE C Splined	7.42	38	57	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-11B20-L 35VQ Series Vane Pump	427765-7	14 Tooth SAE C Splined	7.42	38	57	90 deg CW from Outlet	CCW	3000	2400 RPM
35VQ25A-11B20 35VQ Series Vane Pump	427807-2	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ25A-11C20 35VQ Series Vane Pump	427807-3	14 Tooth SAE C Splined	4.98	25	38.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ25A-11D20 35VQ Series Vane Pump	427807-4	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ25A-11A20-L 35VQ Series Vane Pump	427807-5	14 Tooth SAE C Splined	4.98	25	38.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ25A-11B20-L 35VQ Series Vane Pump	427807-6	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CW from Outlet	CCW	3000	2500 RPM
35VQ25A-11C20-L 35VQ Series Vane Pump	427807-7	14 Tooth SAE C Splined	4.98	25	38.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ25A-11D20-L 35VQ Series Vane Pump	427807-8	14 Tooth SAE C Splined	4.98	25	38.5	90 deg CCW from Outlet	CCW	3000	2500 RPM
35VQ21A-1B20 35VQ Series Vane Pump	591391-2	1-1/4 straight Keyed	4.04	21	31.5	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ21A-1C20 35VQ Series Vane Pump	591391-3	1-1/4 straight Keyed	4.04	21	31.5	in-Line with Outlet	CW	3000	2500 RPM
35VQ21A-1D20 35VQ Series Vane Pump	591391-4	1-1/4 straight Keyed	4.04	21	31.5	90 deg CCW from Outlet	CW	3000	2500 RPM
35VQ21A-1A20-L 35VQ Series Vane Pump	591391-5	1-1/4 straight Keyed	4.04	21	31.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ21A-1C20-L 35VQ Series Vane Pump	591391-7	1-1/4 straight Keyed	4.04	21	31.5	in-Line with Outlet	CCW	3000	2500 RPM
35VQ35A-1B20 35VQ Series Vane Pump	421528-2	1-1/4 straight Keyed	6.88	35	53.6	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ35A-1D20 35VQ Series Vane Pump	421528-4	1-1/4 straight Keyed	6.88	35	53.6	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ35A-1A20 35VQ Series Vane Pump	421528-5	1-1/4 straight Keyed	6.88	35	53.6	Opposite Outlet	CW	3000	2400 RPM
35VQ35A-1C20 35VQ Series Vane Pump	421528-7	1-1/4 straight Keyed	6.88	35	53.6	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-1B20 35VQ Series Vane Pump	421529-2	1-1/4 straight Keyed	7.42	38	57	90 deg CW from Outlet	CW	3000	2400 RPM
35VQ38A-1C20 35VQ Series Vane Pump	421529-3	1-1/4 straight Keyed	7.42	38	57	in-Line with Outlet	CW	3000	2400 RPM
35VQ38A-1D20 35VQ Series Vane Pump	421529-4	1-1/4 straight Keyed	7.42	38	57	90 deg CCW from Outlet	CW	3000	2400 RPM
35VQ38A-1A20-L 35VQ Series Vane Pump	421529-5	1-1/4 straight Keyed	7.42	38	57	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-1C20-L 35VQ Series Vane Pump	421529-7	1-1/4 straight Keyed	7.42	38	57	in-Line with Outlet	CCW	3000	2400 RPM
35VQ30A-1B20 35VQ Series Vane Pump	421555-2	1-1/4 straight Keyed	5.96	30	46	90 deg CW from Outlet	CW	3000	2500 RPM
35VQ35A-11A20 35VQ Series Vane Pump	419330-1	14 Tooth SAE C Splined	6.88	35	53.6	Opposite Outlet	CW	3000	2400 RPM
35VQ21A-11A20 35VQ Series Vane Pump	420995-1	14 Tooth SAE C Splined	4.04	21	31.5	Opposite Outlet	CW	3000	2500 RPM
35VQ30A-11A20 35VQ Series Vane Pump	421526-1	14 Tooth SAE C Splined	5.96	30	46	Opposite Outlet	CW	3000	2500 RPM
35VQ25A-1A20-L 35VQ Series Vane Pump	421527-1	1-1/4 straight Keyed	4.98	25	38.5	Opposite Outlet	CCW	3000	2500 RPM
35VQ35A-1A20-L 35VQ Series Vane Pump	421528-1	1-1/4 straight Keyed	6.88	35	53.6	Opposite Outlet	CCW	3000	2400 RPM
35VQ38A-1A20 35VQ Series Vane Pump	421529-1	1-1/4 straight Keyed	7.42	38	57	Opposite Outlet	CW	3000	2400 RPM
35VQ30A-1A20 35VQ Series Vane Pump	421555-1	1-1/4 straight Keyed	5.96	30	46	Opposite Outlet	CW	3000	2500 RPM
35VQ38A-11A20 35VQ Series Vane Pump	427765-1	14 Tooth SAE C Splined	7.42	38	57	Opposite Outlet	CW	3000	2400 RPM
35VQ25A-11A20 35VQ Series Vane Pump	427807-1	14 Tooth SAE C Splined	4.98	25	38.5	Opposite Outlet	CW	3000	2500 RPM
35VQ21A-1A20 35VQ Series Vane Pump	591391-1	1-1/4 straight Keyed	4.04	21	31.5	Opposite Outlet	CW	3000	2500 RPM

Product Questions & Answers (3)

Question by: Lyle E on Jan 18, 2026, 2:42 PM

runs at 2500 RPM, but what's the max pressure this thing'll handle before it starts giving trouble?

Answer by: Customer Support on Jan 20, 2026, 6:52 AM

Rated up to 3000 PSI, so it's got solid headroom for most industrial hydraulic work. The 35VQ25A is a single vane pump with a 25 ring size and pulls 38.5 GPM at rated flow, which puts it in good standing for demanding circuits. Keep your system within that pressure ceiling and it should hold up fine under regular load.

Question by: Dwight B on Sep 25, 2025, 11:26 AM

Will this pump work in place of a Vickers 35VQ25A-11B20?

Answer by: Customer Support on Sep 27, 2025, 6:53 AM

This 35VQ Series Vane Pump has a 25 ring size, a 14 Tooth SAE C Splined Shaft, and the outlet is 90 degrees CW from the outlet, with CCW rotation, matching the 35VQ25A-11B20 configuration.

Question by: Freddie F on Feb 26, 2026, 9:17 PM

got a machine set up for a CCW pump, does this one turn counterclockwise or am i gonna be fighting it

Answer by: Customer Support on Feb 28, 2026, 6:40 AM

Rotation on this model is CCW, so it matches a counterclockwise setup.
