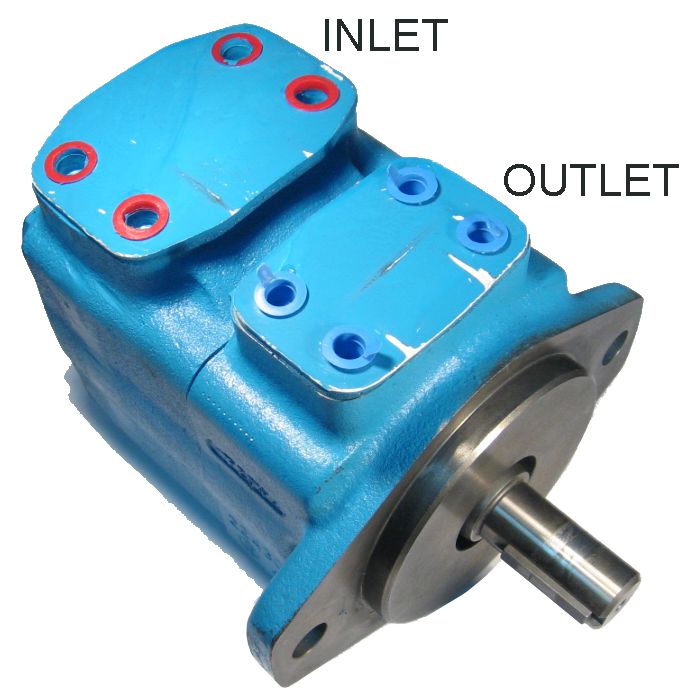

35VQ Series Vane Pumps, Up To 57 GPM @ 1800 RPM, Up to 3000 PSI, Up to 2500 RPM
Description & Features
| Specifications | 2-Bolt SAE C Mounting Flange. SAE 4-Bolt Flange Ports: 2'' Inlet, 1-1/4'' Outlet. |
Products
| Model Number | Part Number | Shaft | Displacement | Ring Size | Rated Flow | Port Location | Rotation | Maximum Pressure | Speed Rating | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|
35VQ35A-11B20 35VQ Series Vane Pump |
419330-2 |
14 Tooth SAE C Splined |
6.88 |
35 |
53.6 |
90 deg CW from Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ35A-11C20 35VQ Series Vane Pump |
419330-3 |
14 Tooth SAE C Splined |
6.88 |
35 |
53.6 |
in-Line with Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ35A-11D20 35VQ Series Vane Pump |
419330-4 |
14 Tooth SAE C Splined |
6.88 |
35 |
53.6 |
90 deg CCW from Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ35A-11A20-L 35VQ Series Vane Pump |
419330-5 |
14 Tooth SAE C Splined |
6.88 |
35 |
53.6 |
Opposite Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ35A-11B20-L 35VQ Series Vane Pump |
419330-6 |
14 Tooth SAE C Splined |
6.88 |
35 |
53.6 |
90 deg CW from Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ35A-11C20-L 35VQ Series Vane Pump |
419330-7 |
14 Tooth SAE C Splined |
6.88 |
35 |
53.6 |
in-Line with Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ35A-11D20-L 35VQ Series Vane Pump |
419330-8 |
14 Tooth SAE C Splined |
6.88 |
35 |
53.6 |
90 deg CCW from Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ21A-11B20 35VQ Series Vane Pump |
420995-2 |
14 Tooth SAE C Splined |
4.04 |
21 |
31.5 |
90 deg CW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ21A-11C20 35VQ Series Vane Pump |
420995-3 |
14 Tooth SAE C Splined |
4.04 |
21 |
31.5 |
in-Line with Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ21A-11D20 35VQ Series Vane Pump |
420995-4 |
14 Tooth SAE C Splined |
4.04 |
21 |
31.5 |
90 deg CCW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ21A-11A20-L 35VQ Series Vane Pump |
420995-5 |
14 Tooth SAE C Splined |
4.04 |
21 |
31.5 |
Opposite Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ21A-11C20-L 35VQ Series Vane Pump |
420995-7 |
14 Tooth SAE C Splined |
4.04 |
21 |
31.5 |
in-Line with Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ30A-11B20 35VQ Series Vane Pump |
421526-2 |
14 Tooth SAE C Splined |
5.96 |
30 |
46 |
90 deg CW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ30A-11C20 35VQ Series Vane Pump |
421526-3 |
14 Tooth SAE C Splined |
5.96 |
30 |
46 |
in-Line with Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ30A-11D20 35VQ Series Vane Pump |
421526-4 |
14 Tooth SAE C Splined |
5.96 |
30 |
46 |
90 deg CCW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ30A-11A20-L 35VQ Series Vane Pump |
421526-5 |
14 Tooth SAE C Splined |
5.96 |
30 |
46 |
Opposite Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ30A-11B20-L 35VQ Series Vane Pump |
421526-6 |
14 Tooth SAE C Splined |
5.96 |
30 |
46 |
90 deg CW from Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ30A-11C20-L 35VQ Series Vane Pump |
421526-7 |
14 Tooth SAE C Splined |
5.96 |
30 |
46 |
in-Line with Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ30A-11D20-L 35VQ Series Vane Pump |
421526-8 |
14 Tooth SAE C Splined |
5.96 |
30 |
46 |
90 deg CCW from Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ25A-1B20 35VQ Series Vane Pump |
421527-2 |
1-1/4 straight Keyed |
4.98 |
25 |
38.5 |
90 deg CW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ25A-1C20 35VQ Series Vane Pump |
421527-3 |
1-1/4 straight Keyed |
4.98 |
25 |
38.5 |
in-Line with Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ25A-1D20 35VQ Series Vane Pump |
421527-4 |
1-1/4 straight Keyed |
4.98 |
25 |
38.5 |
90 deg CCW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ25A-1A20 35VQ Series Vane Pump |
421527-5 |
1-1/4 straight Keyed |
4.98 |
25 |
38.5 |
Opposite Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ25A-1C20-L 35VQ Series Vane Pump |
421527-7 |
1-1/4 straight Keyed |
4.98 |
25 |
38.5 |
in-Line with Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ35A-1C20-L 35VQ Series Vane Pump |
421528-3 |
1-1/4 straight Keyed |
6.88 |
35 |
53.6 |
in-Line with Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ30A-1C20 35VQ Series Vane Pump |
421555-3 |
1-1/4 straight Keyed |
5.96 |
30 |
46 |
in-Line with Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ30A-1D20 35VQ Series Vane Pump |
421555-4 |
1-1/4 straight Keyed |
5.96 |
30 |
46 |
90 deg CCW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ30A-1A20-L 35VQ Series Vane Pump |
421555-5 |
1-1/4 straight Keyed |
5.96 |
30 |
46 |
Opposite Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ30A-1C20-L 35VQ Series Vane Pump |
421555-7 |
1-1/4 straight Keyed |
5.96 |
30 |
46 |
in-Line with Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ30A-1D20-L 35VQ Series Vane Pump |
421555-8 |
1-1/4 straight Keyed |
5.96 |
30 |
46 |
90 deg CCW from Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ38A-11B20 35VQ Series Vane Pump |
427765-2 |
14 Tooth SAE C Splined |
7.42 |
38 |
57 |
90 deg CW from Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ38A-11C20 35VQ Series Vane Pump |
427765-3 |
14 Tooth SAE C Splined |
7.42 |
38 |
57 |
in-Line with Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ38A-11D20 35VQ Series Vane Pump |
427765-4 |
14 Tooth SAE C Splined |
7.42 |
38 |
57 |
90 deg CCW from Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ38A-11A20-L 35VQ Series Vane Pump |
427765-5 |
14 Tooth SAE C Splined |
7.42 |
38 |
57 |
Opposite Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ38A-11B20-L 35VQ Series Vane Pump |
427765-7 |
14 Tooth SAE C Splined |
7.42 |
38 |
57 |
90 deg CW from Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ25A-11B20 35VQ Series Vane Pump |
427807-2 |
14 Tooth SAE C Splined |
4.98 |
25 |
38.5 |
90 deg CW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ25A-11C20 35VQ Series Vane Pump |
427807-3 |
14 Tooth SAE C Splined |
4.98 |
25 |
38.5 |
in-Line with Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ25A-11D20 35VQ Series Vane Pump |
427807-4 |
14 Tooth SAE C Splined |
4.98 |
25 |
38.5 |
90 deg CCW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ25A-11A20-L 35VQ Series Vane Pump |
427807-5 |
14 Tooth SAE C Splined |
4.98 |
25 |
38.5 |
Opposite Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ25A-11B20-L 35VQ Series Vane Pump |
427807-6 |
14 Tooth SAE C Splined |
4.98 |
25 |
38.5 |
90 deg CW from Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ25A-11C20-L 35VQ Series Vane Pump |
427807-7 |
14 Tooth SAE C Splined |
4.98 |
25 |
38.5 |
in-Line with Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ25A-11D20-L 35VQ Series Vane Pump |
427807-8 |
14 Tooth SAE C Splined |
4.98 |
25 |
38.5 |
90 deg CCW from Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ21A-1B20 35VQ Series Vane Pump |
591391-2 |
1-1/4 straight Keyed |
4.04 |
21 |
31.5 |
90 deg CW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ21A-1C20 35VQ Series Vane Pump |
591391-3 |
1-1/4 straight Keyed |
4.04 |
21 |
31.5 |
in-Line with Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ21A-1D20 35VQ Series Vane Pump |
591391-4 |
1-1/4 straight Keyed |
4.04 |
21 |
31.5 |
90 deg CCW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ21A-1A20-L 35VQ Series Vane Pump |
591391-5 |
1-1/4 straight Keyed |
4.04 |
21 |
31.5 |
Opposite Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ21A-1C20-L 35VQ Series Vane Pump |
591391-7 |
1-1/4 straight Keyed |
4.04 |
21 |
31.5 |
in-Line with Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ35A-1B20 35VQ Series Vane Pump |
421528-2 |
1-1/4 straight Keyed |
6.88 |
35 |
53.6 |
90 deg CW from Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ35A-1D20 35VQ Series Vane Pump |
421528-4 |
1-1/4 straight Keyed |
6.88 |
35 |
53.6 |
90 deg CCW from Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ35A-1A20 35VQ Series Vane Pump |
421528-5 |
1-1/4 straight Keyed |
6.88 |
35 |
53.6 |
Opposite Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ35A-1C20 35VQ Series Vane Pump |
421528-7 |
1-1/4 straight Keyed |
6.88 |
35 |
53.6 |
in-Line with Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ38A-1B20 35VQ Series Vane Pump |
421529-2 |
1-1/4 straight Keyed |
7.42 |
38 |
57 |
90 deg CW from Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ38A-1C20 35VQ Series Vane Pump |
421529-3 |
1-1/4 straight Keyed |
7.42 |
38 |
57 |
in-Line with Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ38A-1D20 35VQ Series Vane Pump |
421529-4 |
1-1/4 straight Keyed |
7.42 |
38 |
57 |
90 deg CCW from Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ38A-1A20-L 35VQ Series Vane Pump |
421529-5 |
1-1/4 straight Keyed |
7.42 |
38 |
57 |
Opposite Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ38A-1C20-L 35VQ Series Vane Pump |
421529-7 |
1-1/4 straight Keyed |
7.42 |
38 |
57 |
in-Line with Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ30A-1B20 35VQ Series Vane Pump |
421555-2 |
1-1/4 straight Keyed |
5.96 |
30 |
46 |
90 deg CW from Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ35A-11A20 35VQ Series Vane Pump |
419330-1 |
14 Tooth SAE C Splined |
6.88 |
35 |
53.6 |
Opposite Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ21A-11A20 35VQ Series Vane Pump |
420995-1 |
14 Tooth SAE C Splined |
4.04 |
21 |
31.5 |
Opposite Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ30A-11A20 35VQ Series Vane Pump |
421526-1 |
14 Tooth SAE C Splined |
5.96 |
30 |
46 |
Opposite Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ25A-1A20-L 35VQ Series Vane Pump |
421527-1 |
1-1/4 straight Keyed |
4.98 |
25 |
38.5 |
Opposite Outlet |
CCW |
3000 |
2500 RPM |
|
|
35VQ35A-1A20-L 35VQ Series Vane Pump |
421528-1 |
1-1/4 straight Keyed |
6.88 |
35 |
53.6 |
Opposite Outlet |
CCW |
3000 |
2400 RPM |
|
|
35VQ38A-1A20 35VQ Series Vane Pump |
421529-1 |
1-1/4 straight Keyed |
7.42 |
38 |
57 |
Opposite Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ30A-1A20 35VQ Series Vane Pump |
421555-1 |
1-1/4 straight Keyed |
5.96 |
30 |
46 |
Opposite Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ38A-11A20 35VQ Series Vane Pump |
427765-1 |
14 Tooth SAE C Splined |
7.42 |
38 |
57 |
Opposite Outlet |
CW |
3000 |
2400 RPM |
|
|
35VQ25A-11A20 35VQ Series Vane Pump |
427807-1 |
14 Tooth SAE C Splined |
4.98 |
25 |
38.5 |
Opposite Outlet |
CW |
3000 |
2500 RPM |
|
|
35VQ21A-1A20 35VQ Series Vane Pump |
591391-1 |
1-1/4 straight Keyed |
4.04 |
21 |
31.5 |
Opposite Outlet |
CW |
3000 |
2500 RPM |
|
Product Questions & Answers (1)
Question by: Joyce M on Jul 12, 2025, 1:50 PM
Reckon this'll bolt right up to a standard SAE C mount, or are there different sizes?
Answer by: Customer Support on Jul 14, 2025, 6:52 AM
These 35VQ series pumps use a standard 2-Bolt SAE C Mounting Flange, so it should fit any equipment designed for that flange.
