Description & Features

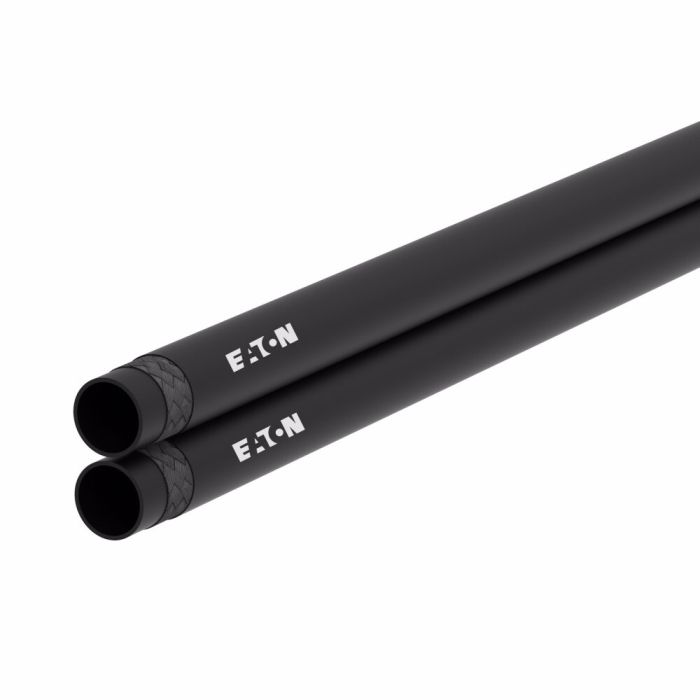

Constructed with a nylon inner tube and aramid fiber reinforcement, this Aeroquip thermoplastic hydraulic hose is rated to SAE 100R8 and suited for high-pressure fluid transfer in demanding industrial environments. The polyurethane cover features a perforated, conductive design that resists abrasion while allowing static dissipation, an important characteristic in applications where charge buildup is a concern.

At dash size -4, the hose has a product width of 0.53 inches and a minimum bend radius of 2 inches, making it well-suited for routing in tight spaces. A working temperature floor of -40°F supports reliable performance in cold-climate or refrigerated environments. Compatible fittings include the 903 series (-03 to -08), 90A series (-03 to -08), and 98E02, giving flexibility in end connection selection. Fluid compatibility details are available via the manufacturer's documentation linked to this product.

SKU: 3800-04

Supplier Part Number (MPN): 3800-04

Specifications

Brand Synflex® by Danfoss	Abrasion Resistance Premium	Conductivity Conductive	Cover Material Polyurethane	Cover Style Perforated	Dash Size 04	For Use With 903 (-03 to -08), 90A (-03 to -08) and 98E02 Series Hose Fittings	Hose Color Black	Hose Type Conductive	Inside Diameter 1/4 in	Nominal Size 1/4 in	Reinforcement High-Tensile Braided Aramid Fiber	Resistance Properties Abrasion	Series 3800 Series	Tube Material Nylon
