AEROQUIP

Description & Features

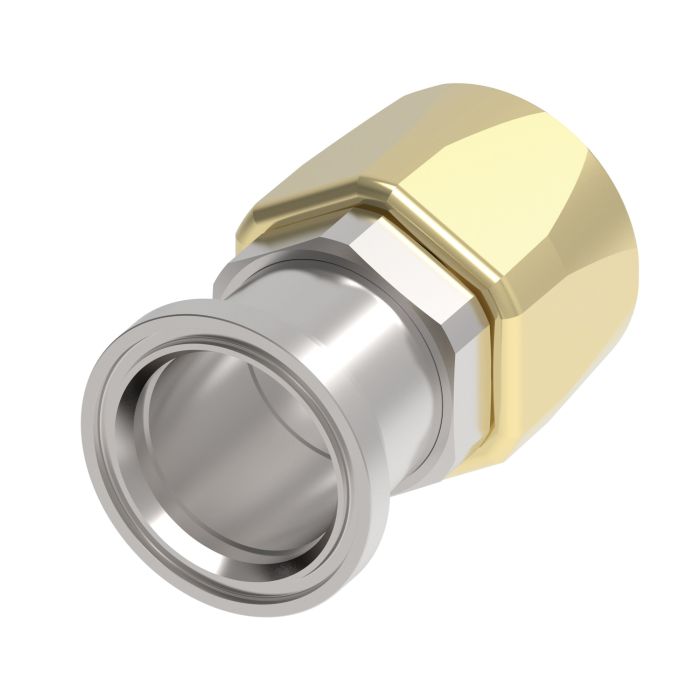

Constructed from brass and carbon steel, this -40 dash size flanged hose fitting is part of the Aeroquip 4775 Series reusable fitting line, designed to SAE Code 61 standards. The flanged end connects to the line or hose side, making it suited for larger-bore hydraulic hose assemblies where reusable fittings offer a practical advantage over crimp-only solutions.

Aeroquip reusable fittings are built to handle a wide range of industrial hydraulic applications. The design supports faster assembly times compared to permanent alternatives, and the dual-material construction, brass and carbon steel, provides reliable performance across varying system conditions. As a fitting assembly, this unit arrives ready for installation without requiring additional components to complete the connection.

SKU: 39-4775-40

Supplier Part Number (MPN): 39-4775-40

Alternate Part Numbers: 4775-40S, C1FM35

Specifications

a Dimensions 5.36 in	Compatible Hose ID 2-1/2 in	Connection Type Flanged, Hose	Connection Type 1 Flanged	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 3.509 in	Dimensions 5.36 in L x 3.3 in W x 3.75 in H	End Size 1 04	Finish Dura-Kote™	Fitting Type Reusable Fitting	Hex Size 2-3/4 in	Hose Dash Size 40	Inside Diameter 2.21 in	Material Steel	Material Construction Carbon Steel	Series 39-4775 Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Frank F on Mar 15, 2026, 7:52 AM

Just to make sure, this is the fitting that flares out at one end, right?

Answer by: Customer Support on Mar 16, 2026, 6:32 PM

That's correct. This Aeroquip fitting features a flanged end, along with a line/hose/tube connection on the other side.
