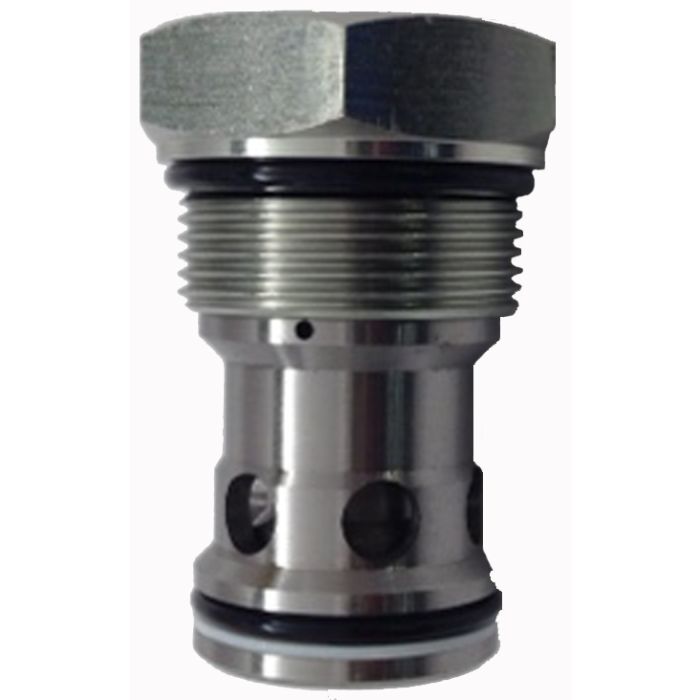

3CA300 Series Cartridge Check Valves, Up To 5000 PSI & 80 GPM
Description & Features
| Application | Used in hydraulic applications to allow free flow of fluid in one direction only. |
| Cartridge | Model 3CA300-*, sold separately. |
| Flow Rating | 80 GPM. |
| Housing | Cavity size A13245, sold separately, see |
| Maximum Operating Pressure | 5000 PSI |
| Recommended Filtration | Cleanliness level 18/13 or better. |
| Temperature Range | –22° to 194°F |
Products
| Model Number | Part Number | Cracking Pressure (psi) | Housing | Seal Material | Price | Action |
|---|---|---|---|---|---|---|
3CA300-0.3S 3CA300 Series Cartridge Valve |
401AA00180A |
4.4 |
None |
Nitrile |
|
