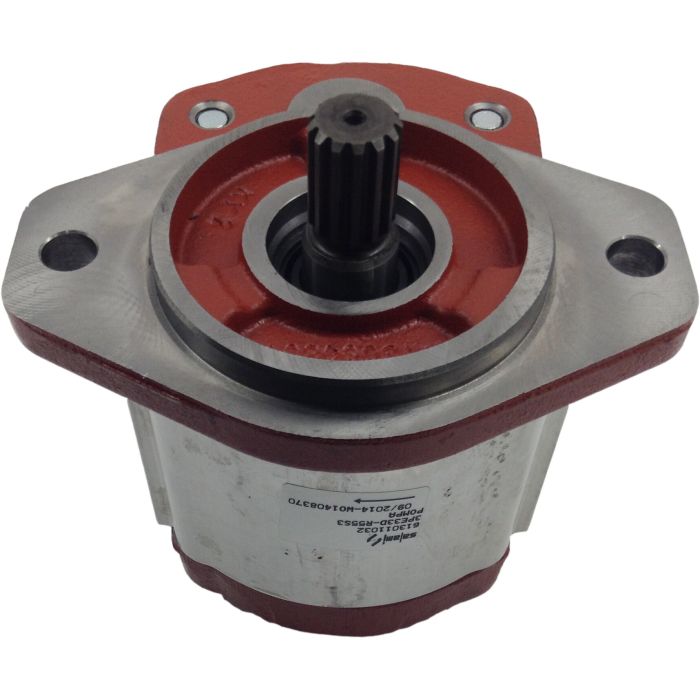

3PE Series Aluminum Gear Pump, 1.26 cu in/rev, 2-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE-16 Side Inlet, SAE-12 Side Outlet, CW Rotation

Ask A Question

Description & Features

The Salami 3PE Series Aluminum Gear Pump is engineered for high efficiency in industrial applications. Designed with a 1.26 cubic inch per revolution displacement, it ensures precise fluid handling, making it ideal for demanding hydraulic systems. The 2-Bolt SAE B mounting flange and 13T splined shaft provide secure and adaptable installation options. This pump features a SAE-16 side inlet and SAE-12 side outlet, supporting clockwise rotation for seamless integration into existing setups.

Manufactured with advanced axial compensation through floating bushings, the pump guarantees high volumetric efficiency across varied pressure ranges, up to a peak of 4300 PSI. With DU bearings, it offers robust high-pressure capabilities. The pump operates optimally within a temperature range of -4°F to 185°F with standard Buna-N seals, and up to 230°F with FPM seals. Recommended fluid viscosities range from 85 SUS to 297 SUS for normal use, ensuring reliable performance.

SKU: 613011112

Supplier Part Number (MPN): 613011112

Alternate Part Numbers: C1MV73

Specifications

Brand
Salami
Dimensions
6.67 in L x 4.84 in W x 6.02 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4300 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
2-Bolt SAE B
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
3PE Series
Shaft
13 Tooth Splined x 1.61 in Long SAE B

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Action
3PE Series Aluminum Gear Pump, 2.86 cu in/rev, 2-Bolt SAE B Mounting Flange, 1 St. Keyed x 1.81 long SAE BB Shaft, SAE-20 Side Inlet, SAE-16 Side Outlet, CW Rotation

613012852 3PE Series Aluminum Gear Pump

2.86

22

2-Bolt SAE B

1 St. Keyed x 1.81 long SAE BB

SAE-20 Side Inlet, SAE-16 Side Outlet

CW

2475 RPM

3625

3PE Series Aluminum Gear Pump, 2.86 cu in/rev, 2-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE-20 Side Inlet, SAE-16 Side Outlet, CW Rotation

613079672 3PE Series Aluminum Gear Pump

2.86

22

2-Bolt SAE B

13T Splined x 1.61 long SAE B

SAE-20 Side Inlet, SAE-16 Side Outlet

CW

2475 RPM

3625

Product Questions & Answers (1)

Question by: Vince K on Jan 3, 2026, 11:03 AM
rotation on this one is clockwise out of the box, but can it be swapped to run CCW if needed?
Answer by: Customer Support on Jan 5, 2026, 8:31 AM
Clockwise is the default, and yes, the rotation can be changed. You'd do it by reversing the position of the drive shaft and driven shaft, then rotating the front flange. It's a field-adjustable setup, so you're not locked into one direction when the pump ships.
