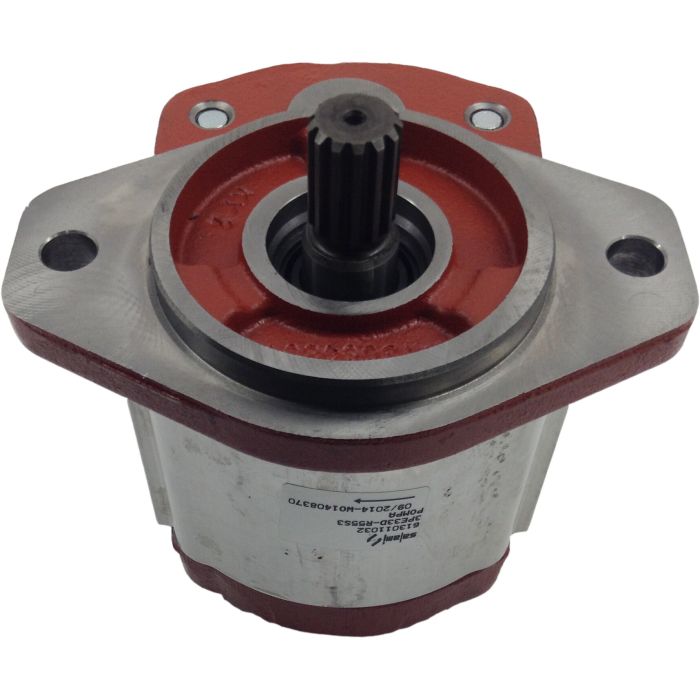

3PE Series Aluminum Gear Pump, 2.86 cu in/rev, 2-Bolt SAE B Mounting Flange, 1 St. Keyed x 1.81 long SAE BB Shaft, SAE-20 Side Inlet, SAE-16 Side Outlet, CW Rotation

Description & Features

Designed for mobile and industrial hydraulic circuits, the Salami 3PE Series Aluminum Gear Pump (model 3PE46D-R88S3) delivers a displacement of 2.86 cu in/rev with a rated flow of 22 GPM at 2475 RPM. The pump is rated for continuous working pressure up to 3625 PSI, with peak capability reaching 4300 PSI.

Mounting follows the 2-Bolt SAE B standard, and the drive end features a 1" straight keyed SAE BB shaft, 1.81" in length. Port configuration includes an SAE-20 side inlet and SAE-16 side outlet. Rotation is clockwise as supplied; it can be reversed by repositioning the drive and driven shafts and rotating the front flange.

Axial compensation is achieved through floating bushings, supporting consistent volumetric efficiency across the working pressure range. DU bearings contribute to high-pressure capability. Standard Buna-N seals support a temperature range of -4°F to 185°F; optional Viton seals extend the upper limit to 230°F. The pump is configurable as part of a multiple-unit assembly and is available with a range of shaft, flange, and port options to suit various standards.

SKU: 613012852

Supplier Part Number (MPN): 613012852

Alternate Part Numbers: 3PE46D-R88S3, C1MV97

Specifications

Displacement 2.86	Displacement 2.86	Brand Salami Hydraulics Na Inc	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE B	Mount 2-Bolt SAE B	Ports SAE-20 Side Inlet, SAE-16 Side Outlet	Ports SAE-20 Side Inlet, SAE-16 Side Outlet	Pressure Rating 3625	Rated Flow 22	Rated Flow 22	Rotation CW	Shaft 1 St. Keyed x 1.81 long SAE BB	Shaft 1 St. Keyed x 1.81 long SAE BB	Speed Rating 2475 RPM	Speed Rating 2475 RPM	Supplier Part Number 613012852	Alternate Part Numbers Alternate Part Number 3PE46D-R88S3, Alternate Part Number C1MV97	Product Weight 23.58 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
613012852 3PE Series Aluminum Gear Pump	2.86	22	2-Bolt SAE B	1 St. Keyed x 1.81 long SAE BB	SAE-20 Side Inlet, SAE-16 Side Outlet	CW	2475 RPM	3625
613011112 3PE Series Aluminum Gear Pump	1.26	9.8	2-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE-16 Side Inlet, SAE-12 Side Outlet	CW	2700 RPM	3625
613079672 3PE Series Aluminum Gear Pump	2.86	22	2-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE-20 Side Inlet, SAE-16 Side Outlet	CW	2475 RPM	3625

Product Questions & Answers (4)

Question by: Daryl S on Feb 22, 2026, 8:12 AM

trying to match up a pump i’ve got, what mounting flange and shaft does this one come with?

Answer by: Customer Support on Feb 23, 2026, 10:11 AM

It uses a 2-bolt SAE B mounting flange and an SAE BB shaft that is 1 inch straight keyed with a 1.81 inch length.

Question by: Cody P on Aug 7, 2025, 2:38 PM

I need a pump that can handle some pressure. What's the pressure rating on this Salami pump?

Answer by: Customer Support on Aug 9, 2025, 11:20 AM

This gear pump can handle continuous working pressures that vary based on displacement, but it can handle peak pressures up to 4300 PSI.

Question by: Norm H on Jul 20, 2025, 11:14 AM

got a pump that has to spin clockwise, is this one already set up that way?

Answer by: Customer Support on Jul 22, 2025, 9:11 AM

From the factory these pumps are stocked with clockwise rotation, and this model is listed as CW rotation.

Question by: Tammy F on Mar 1, 2026, 5:30 PM

runs clockwise out of the box, right? trying to avoid tearing it back down after install if i got the rotation wrong

Answer by: Customer Support on Mar 2, 2026, 7:06 PM

Clockwise is correct as shipped. If you ever need to switch to counterclockwise, it's doable by reversing the drive and driven shaft positions and rotating the front flange. No new parts required, just a disassembly and reassembly. But straight out of the box, CW is what you get.
