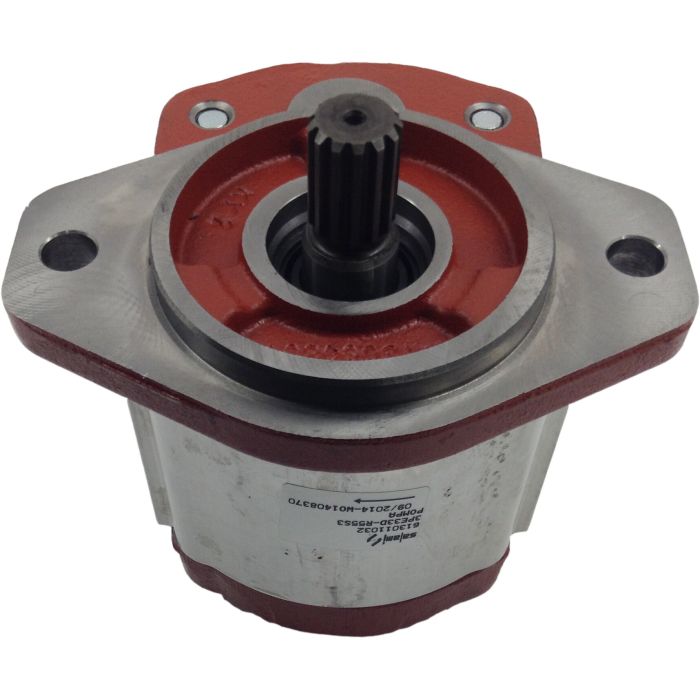

3PE Series Aluminum Gear Pump, 2.86 cu in/rev, 2-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE-20 Side Inlet, SAE-16 Side Outlet, CW Rotation

Equipped with a 13T splined shaft 1.61 inches long it ensures seamless integration with industry-standard connections. This gear pump includes a SAE-20 side inlet and SAE-16 side outlet accommodating fluid flow with ease. Clockwise rotation is standard but flexibility is provided by the ability to reverse the drive shaft and driven shaft positions.

Designed with a pressure rating of up to 3625 PSI and a peak pressure tolerance of 4300 PSI it is suitable for demanding applications. DU bearings and floating bushings offer axial compensation maintaining high efficiency across the working pressure range. The pump supports a continuous speed rating of up to 2475 RPM ensuring consistent operation under varied conditions.

For reliable performance the recommended fluid viscosity ranges from 85 SUS to 297 SUS adhering to ISO 4406 filtration standards. Suitable for various industrial applications it withstands temperatures from -4deg;F to 230deg;F depending on the seal type.

Supplier Part Number: 613079672
