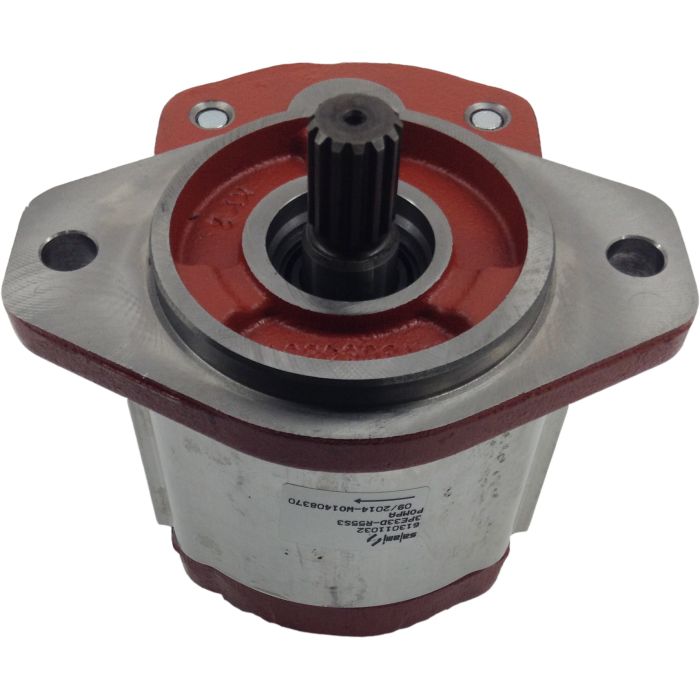

3PE Series Aluminum Gear Pumps, Up To 34 GPM @ 1800 RPM, Up to 3625 PSI, Up to 2700 RPM

Description & Features

Application	Pumps are stocked with Clockwise rotation. Rotation can be changed by reversing the position of the drive shaft and driven shaft, and rotating the front flange.
Features	All pumps are available as multiple units either of the same or different series. With all sizes, there are options of shafts, flanges and ports as for European, German and American standards. Salami gear pumps offer high volumetric efficiency by innovative design and accurate control of machining tolerances. Axial compensation achieved by the use of floating bushings that allow high volumetric efficiency throughout the working pressure range. DU bearings ensure high pressure capability.
Pressure Limit	Inlet pressure: 7.38 in. Hg to 21.7 PSI. Pump Outlet: Continuous working pressure varies with displacement (See table below). Peak pressure pressures up to 4300 PSI.
Recommended Filtration	ISO 4406: < 2900 PSI: 20/19/16; > 2900 PSI: 19/18/15.
Recommended Fluids	Minimum Operating fluid viscosity: 66 SUS (with 80% reduction of working pressure and at minimum speed) to 3635 SUS (maximum starting viscosity). Normal operating range: 85 SUS to 297 SUS.
Speed Ratings	Continuous speed at working pressure varies with displacement (See table below).
Temperature Rating	With Buna-N seals (standard): -4°F to 185°F. With FPM seals (Viton): -4°F to 230°F.

Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
613012852 3PE Series Aluminum Gear Pump	2.86	22	2-Bolt SAE B	1 St. Keyed x 1.81 long SAE BB	SAE-20 Side Inlet, SAE-16 Side Outlet	CW	2475 RPM	3625
613011112 3PE Series Aluminum Gear Pump	1.26	9.8	2-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE-16 Side Inlet, SAE-12 Side Outlet	CW	2700 RPM	3625
613079672 3PE Series Aluminum Gear Pump	2.86	22	2-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE-20 Side Inlet, SAE-16 Side Outlet	CW	2475 RPM	3625

Product Questions & Answers (1)

Question by: Duane K on Dec 14, 2025, 5:43 PM

Will this gear pump work with regular hydraulic fluid, or do I need somethin' special?

Answer by: Customer Support on Dec 16, 2025, 8:31 AM

These aluminum gear pumps work best with hydraulic fluids that fall within a viscosity range of 85 SUS to 297 SUS for normal operation. You'll want to ensure your fluid meets this requirement for optimal performance.
