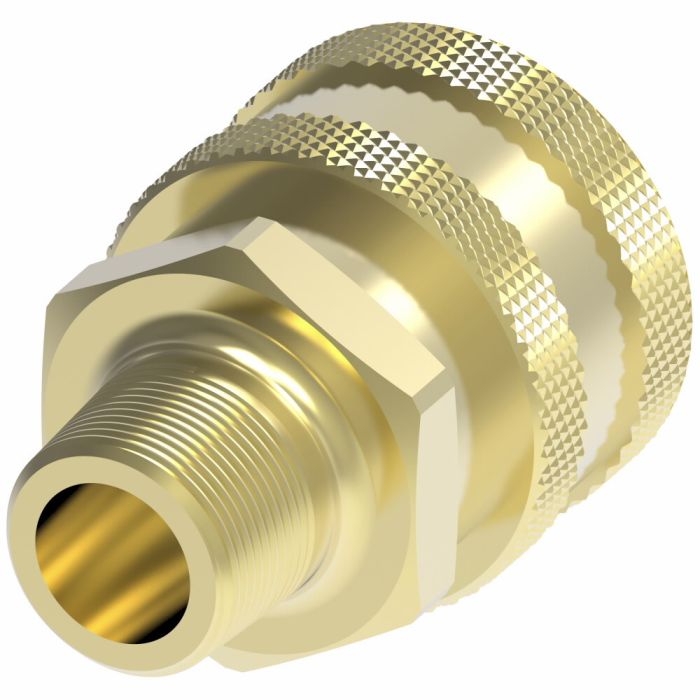

This Danfoss / Eaton Cplng ST Series quick disconnect coupling socket is designed for fluid transfer applications, as well as use with chemicals, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning equipment.
Featuring quick connect and disconnect functionality, the female half coupling requires no special tools for use. It features a 3/8" port size, a ball lock internal connection type, and Buna-N seal material, and is constructed of durable brass. This coupling exceeds ISO 16028 operating pressures, with a flow rate of 15 gallons per minute and a minimum working temperature of -40 degrees.
SKU: 3S20
Supplier Part Number (MPN): 3S20
|
Alternate Part Numbers
MINO-00015X06070
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
15 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
Brass
|
Product Width
1.16
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
3S20
|
Valve Type
Straight Thru
|
Product Weight
0.24 lbs
|
