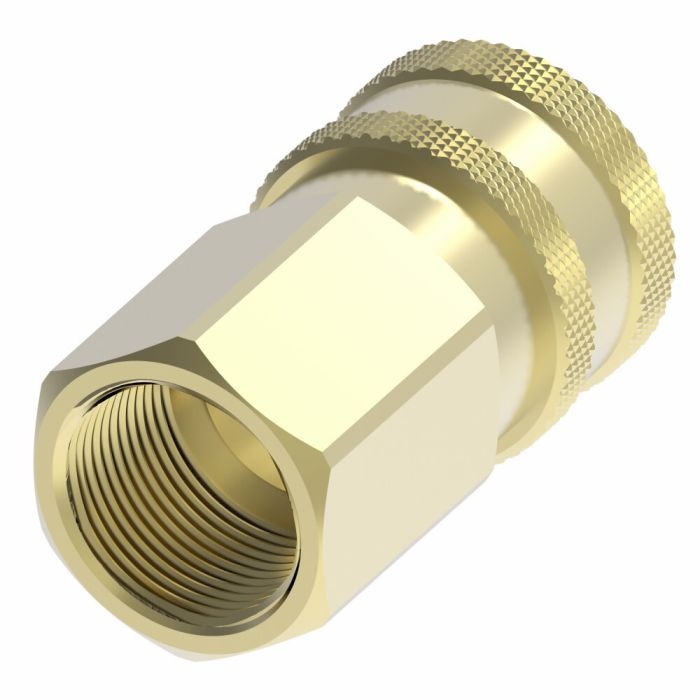

This brass ST Series female quick disconnect coupling is suitable for a variety of applications including fluid transfer, chemical, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning.
Featuring a push-to-connect design, this female half coupling ensures quick and easy connections without the need for special tools. The product material is brass and it utilizes a ball lock internal connection type with Buna-N seals. It is designed for a 3/8 port size and offers a flow rate of 15 gallons per minute. The coupling is rated for a minimum working temperature of -4 degrees.
SKU: 3S21143
Supplier Part Number (MPN): 3S21143
|
Alternate Part Numbers
MINO-00015X06076
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
15 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
Brass
|
Product Width
1.16
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
3S21143
|
Valve Type
Straight Thru
|
Product Weight
0.27 lbs
|
