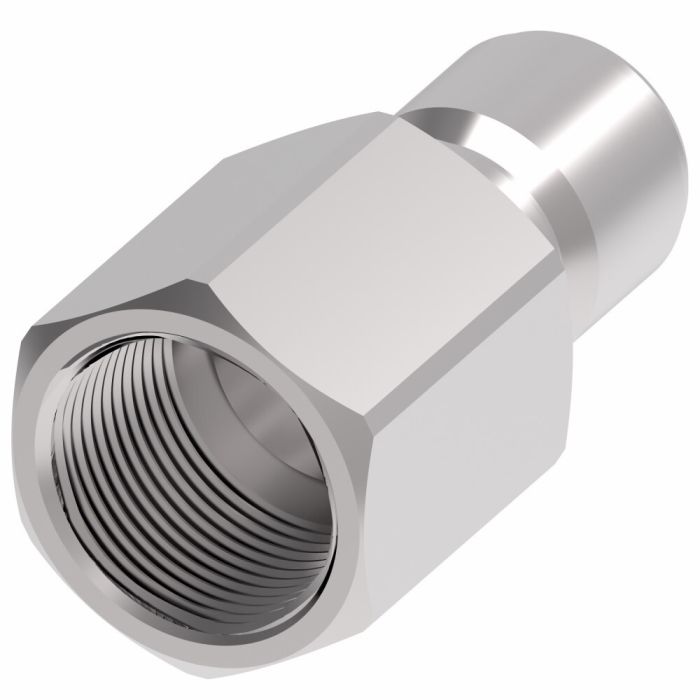

This Eaton Hansen ST Series quick disconnect coupling plug is designed for fluid transfer applications, as well as chemical, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning systems.
Made from carbon steel with Buna-N seals, the CPLNG ST SERIES features a push-to-connect end type for quick connect and disconnect without the need for special tools. It features a 3/8" port size, a 0.375" end size 2, a male end gender 1, and a female end gender 2. This coupling plug utilizes a ball lock internal connection type and a straight thru valve type. It exceeds ISO 16028 operating pressures and has a flow rate of 15 gallons per minute, with a minimum working temperature of -40 degrees.
SKU: 3T21
Supplier Part Number (MPN): 3T21
|
Alternate Part Numbers
MINO-00015X06106
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
15 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
Carbon Steel
|
Product Width
0.94
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
3T21
|
Valve Type
Straight Thru
|
Product Weight
0.12 lbs
|
