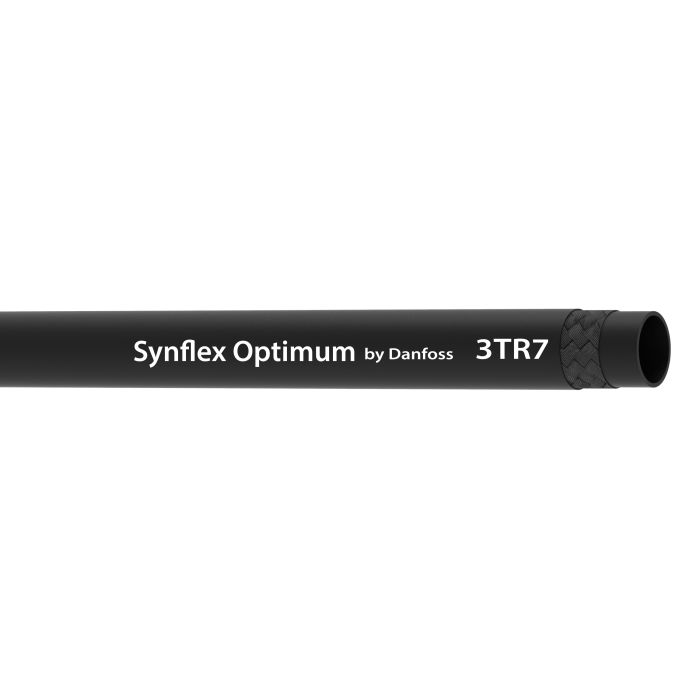

DANFOSS / EATON SYNFLEX 100R7 250 FT/BOX CONTD

Description & Features

The DANFOSS / EATON SYNFLEX 100R7 250 FT/BOX CONTD is a thermoplastic hydraulic hose suitable for general hydraulic, material handling, chemical transfer, and marine steering applications. This -8 dash size hose features a polyurethane cover that offers standard abrasion resistance and prevents absorption of most oils and fluids.

Constructed with a 1-ply braid and synthetic fiber reinforcement, this conductive hose is 2X lighter than equivalent wire braided rubber hoses. The Synflex hose has a minimum bend radius of 2.75" and is designed for a minimum working temperature of -40 degrees. The cover is perforated for added flexibility.

SKU: 3TR7-08-250BC

Supplier Part Number (MPN): 3TR7-08-250BC

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number MINO-00015X06163	Application General hydraulics, material handling, chemical transfer, marine steering.	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material Polyurethane	Cover Style Perforated	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Highly abrasion resistant cover\|Prevents absorption of most oils and fluids\|2X lighter than equivalent wire braided rubber hoses	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 2.75	Minimum Bend Radius 2.75	Minimum Working Temperature -40	Net Pack Quantity Units FT	Product Width 0.82	Reinforcement Material Synthetic fiber	Sub Brand Synflex	Supplier Part Number 3TR7-08-250BC	Tube Material Nylon	Product Weight 0.29 lbs

Product Questions & Answers (1)

Question by: Glen C on Jun 15, 2025, 6:30 PM

What's the smallest radius this hose can bend to without causing damage?

Answer by: Customer Support on Jun 17, 2025, 5:19 PM

The minimum bend radius for this Synflex hose is 2.75 inches.
