40 Series Gear Motors, Up To 3000 PSI & 3000 RPM

Description & Features

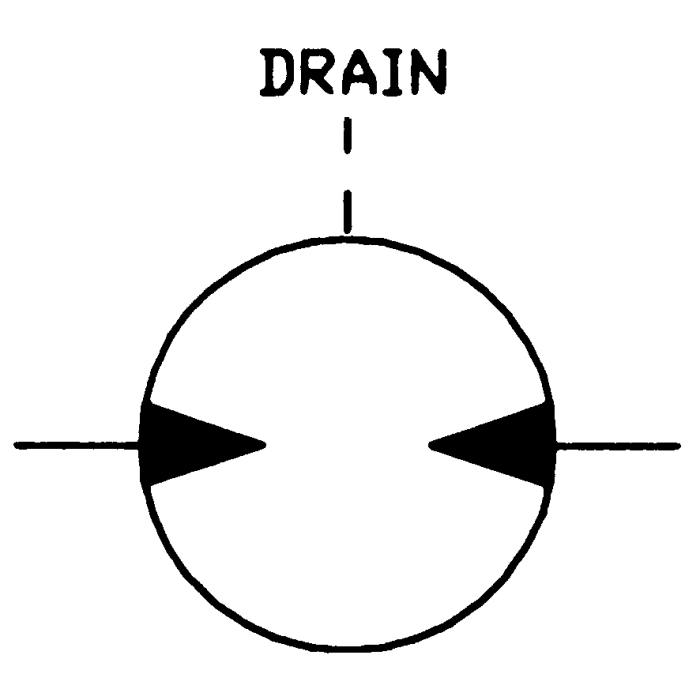

Application	Bi-Rotational models have internal check valves that drain case pressure back to the low pressure side.
Features	Improved gear tooth design and pressure-balanced loading plates provide for a high volumetric and overall efficiency, while operating at a low noise level. Bi-directional design using internal check valves. Die-cast aluminum alloy body and end covers. Sintered metal gears. Hardened steel shaft. Pressure lubricated, Teflon® impregnated sleeve bearings, Buna-N seals.
Note	Ratings based on using anti wear hydraulic fluid.
Pressure Limit	Inlet: 3000 PSI Rated Working Pressure, 3500 PSI Maximum Shock Pressure. Outlet: Pressures over 250 PSI require a case drain line be installed.
Rated Speed	Up to 3000 RPM.

Model Number	Displacement	Mount	Shaft	Ports	Features	Speed Rating	Pressure Rating
40MH05DACSC 40 Series Gear Motor	0.5	2-Bolt SAE A	5/8 St.Keyed x 1.25 Long	SAE-12 Side Ports	Bi-Rotational	3000 RPM	3000
40MH10DACSC 40 Series Gear Motor	1	2-Bolt SAE A	5/8 St.Keyed x 1.25 Long	SAE-12 Side Ports	Bi-Rotational	3000 RPM	3000
360036 40 Series Gear Motor	1.8	2-Bolt SAE A	5/8 St.Keyed x 1.25 Long	SAE-12 Side Ports	Bi-Rotational	3000 RPM	3000
40MH07DACSC 40 Series Gear Motor	0.75	2-Bolt SAE A	5/8 St.Keyed x 1.25 Long	SAE-12 Side Ports	Bi-Rotational	3000 RPM	3000
40MH12DACSC 40 Series Gear Motor	1.25	2-Bolt SAE A	5/8 St.Keyed x 1.25 Long	SAE-12 Side Ports	Bi-Rotational	3000 RPM	3000
