main product photo

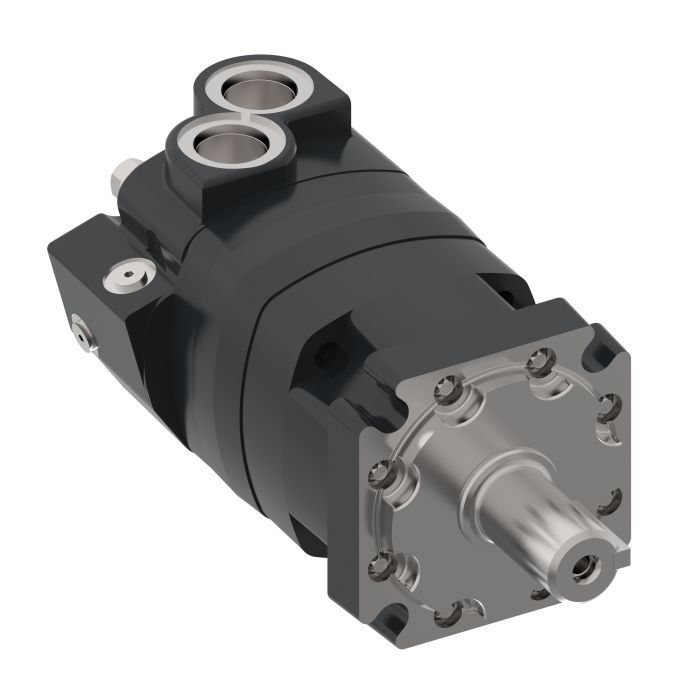

4000 Series Geroler Motor, 12.50 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-5/8 in. Tapered Shaft, 1-1/16-12 St.Thd. O-Ring Ports,

Ask A Question

Description & Features

This Eaton Char-Lynn 4000 Series Geroler motor is designed for a variety of applications, including mowing, snow removal, spraying, trenching, and wood product processing.

This 4000 Series Geroler Motor features a 4-bolt SAE B mounting flange and a 1-5/8 in. tapered shaft. It utilizes 1-1/16-12 St.Thd. O-Ring ports with staggered porting. The motor has a displacement of 12.50 cu in/rev and a torque rating of 600 newton metres.

Features include standard, wheel, or bearingless configurations and a highly efficient Geroler design for energy savings. It stands out as the lowest pressure drop motor in the industry.

SKU: 109-1110

Supplier Part Number (MPN): 109-1110-006

Alternate Part Numbers: C1JL75

Specifications

Application
Other: Mowing, Snow Removal, Sprayer, Trencher, Wood Products
Design Code
6
Displacement
12.50
Displacement
12.5
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings
Identification
None
Mount
4 Bolt SAE B
Mount
4 Bolt SAE B
Port Type
1.0625-12 UN-2B SAE O-Ring Ports - Staggered Ports
Ports
1-1/16-12 St.Thd. O-Ring
Ports
1-1/16-12 St.Thd. O-Ring
Shaft
1-5/8 in. Tapered
Shaft
1-5/8 in. Tapered
Supplier Part Number
109-1110-006
Torque Rating
600 newton metre
Torque Rating
600 newton metre
Valve Options
None
Alternate Part Numbers
Alternate Part Number 109-1110-006, Alternate Part Number C1JL75, Alternate Part Number MINO-00162X04016
Product Weight
41.01 lbs

Related Documents

Similar Products

Model Number Displacement Mount Shaft Ports Features Price Action
4000 Series Geroler Motor, 7.90 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports,

109-1101 4000 Series Geroler Motor

7.9

4 Bolt SAE B

1-1/4 in. Straight Keyed

1-1/16-12 St.Thd. O-Ring

Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

4000 Series Geroler Motor, 9.90 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports,

109-1102 4000 Series Geroler Motor

9.9

4 Bolt SAE B

1-1/4 in. Straight Keyed

1-1/16-12 St.Thd. O-Ring

Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

4000 Series Geroler Motor, 12.50 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports,

109-1103 4000 Series Geroler Motor

12.5

4 Bolt SAE B

1-1/4 in. Straight Keyed

1-1/16-12 St.Thd. O-Ring

Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

4000 Series Geroler Motor, 19.00 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports,

109-1105 4000 Series Geroler Motor

19

4 Bolt SAE B

1-1/4 in. Straight Keyed

1-1/16-12 St.Thd. O-Ring

Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

4000 Series Geroler Motor, 24.00 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports,

109-1106 4000 Series Geroler Motor

24

4 Bolt SAE B

1-1/4 in. Straight Keyed

1-1/16-12 St.Thd. O-Ring

Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

4000 Series Geroler Motor, 12.50 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-5/8 in. Tapered Shaft, 1-1/16-12 St.Thd. O-Ring Ports,

109-1110 4000 Series Geroler Motor

12.5

4 Bolt SAE B

1-5/8 in. Tapered

1-1/16-12 St.Thd. O-Ring

Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

4000 Series Geroler Motor, 30.00 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports,

109-1212 4000 Series Geroler Motor

30

4 Bolt SAE B

1-1/4 in. Straight Keyed

1-1/16-12 St.Thd. O-Ring

Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

4000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, 14T 12/24 DP Spline Shaft, 7/8-14 St. Thd. O-Ring Ports, Compact Series

169-0201 4000 Series Geroler Motor

29.8

2 Bolt SAE A

14T 12/24 DP Spline

7/8-14 St. Thd. O-Ring

Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

Product Questions & Answers (2)

Question by: Ray H on Sep 23, 2025, 8:36 PM
got a mower drive that takes a 4 bolt SAE B mount and a 1-5/8 tapered shaft. is that what this motor is set up for
Answer by: Customer Support on Sep 25, 2025, 1:25 PM
Fit wise, it comes with a 4 bolt SAE B mounting flange and a 1-5/8 inch tapered shaft, plus 1-1/16-12 SAE O-ring ports with staggered porting. The displacement is 12.5 cu in per rev, which is the other big number folks match up on replacements.
Question by: Terry S on May 12, 2025, 11:41 AM
Will this motor work okay on a wood splitter, or is it more for something else?
Answer by: Customer Support on May 13, 2025, 5:34 PM
This 4000 Series Geroler motor finds application in various equipment types including wood products, mowing, snow removal, sprayer, and trencher.
