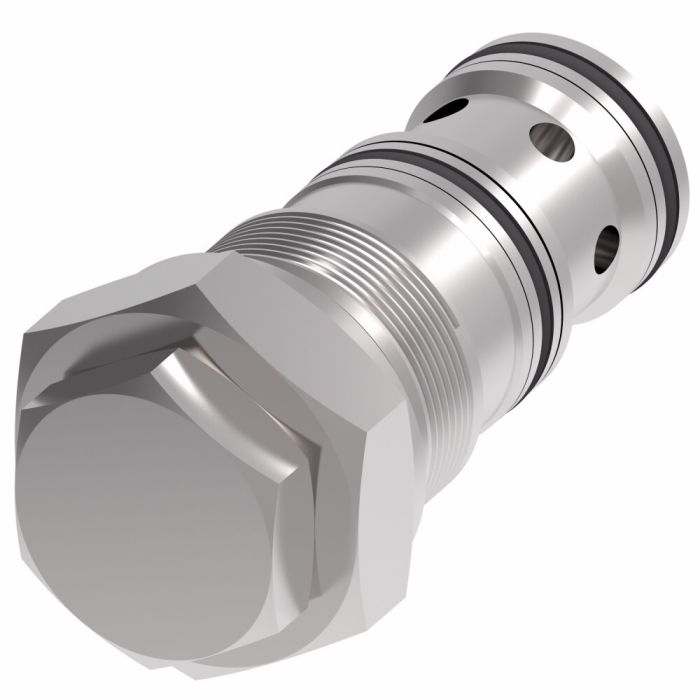

Danfoss / Eaton Integrated Hydraulics 4CKD901S

Description & Features

This Vickers by Danfoss / Eaton 4CKD90 Series check valve is a poppet style valve suitable for use in harvesters, refuse haulers, and other mobile and industrial applications. The Danfoss / Eaton Integrated Hydraulics 4CKD901S features high operational efficiency and low spring settings.

This check valve offers a 90 liter per minute flow rate with a 350 bar (5000 psi) pressure rating and a 227 L/min (60 USgpm) flow rate.

SKU: 401AA00005A

Supplier Part Number (MPN): 401AA00005ASP

Alternate Part Numbers: 4CKD901S

Specifications

Actuator Type Pilot Operated	Body Material Steel	Cavity A12336	Connection Type BSP	Dimensions 81.534 mm L x 31.979 mm W x 31.979 mm H	Disc Material Buna-N	Mounting Type Screw-In	Nominal Size 1/2 in	Number of Ports/Ways 3-Way	Operator Type Pilot Operated	Packing Material Buna-N	Pilot Ratio 25:1	Seal Material Nitrile	Seat Material Buna-N	Series 4CKD90 Series	Softgoods Material Buna-N	Style Poppet

Product Questions & Answers (2)

Question by: Dean C on Oct 19, 2025, 9:04 PM

flow rate on this valve is listed two ways it seems, 90 liters per minute and also 60 gpm. which one is right or are those just different units sayin the same thing?

Answer by: Customer Support on Oct 21, 2025, 8:32 AM

Both figures are correct and refer to the same valve. The 90 liter per minute rating and the 227 L/min at 60 USgpm rating represent two different flow conditions documented for this valve. The 90 L/min figure is one operational flow rate, while the 227 L/min is the maximum flow capacity expressed in both metric and US gallon units. So you're getting a valve rated up to 5000 psi that can handle that higher flow when your system calls for it.

Question by: Bobby P on Oct 9, 2025, 4:26 PM

Will this check valve work on my refuse truck's hydraulic system?

Answer by: Customer Support on Oct 11, 2025, 6:26 AM

This poppet style check valve is suitable for refuse haulers, along with other mobile and industrial applications.
