INT 402AA00005A

Description & Features

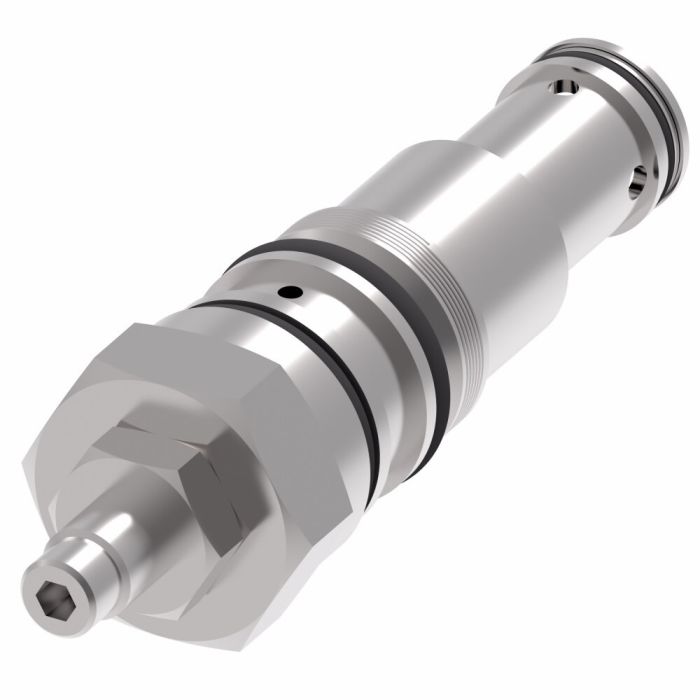

Vickers by Danfoss / Eaton 1DS100 Series Pressure Control Valves offer reliable and economical performance in a compact size. These spool style valves are designed for maximum flexibility and minimum space requirements. They are suitable for harvesters, refuse haulers, and various mobile and industrial applications.

This valve offers a flow rate of 150 liters per minute, with a pressure rating up to 350 bar (5000 psi) and 300 L/min (80 USgpm).

SKU: 402AA00006A

Supplier Part Number (MPN): 402AA00006ASP

Specifications

Actuator Type Direct Acting, Hydraulic	Adjustment Leak-Proof Screw	Cavity A880	Configuration Relieving	Connection Type BSP	Dimensions 4.33 in L x 1.12 in W x 1.12 in H	Installation Type Screw-In Cartridge	Nominal Size 1/2 in	Number of Ports/Ways 3-Ports	Seal Material FKM	Series 1DS100 Series	Softgoods Material FKM	Style Spool

Product Questions & Answers (2)

Question by: Cheryl E on Dec 22, 2025, 2:37 PM

Been running these Vickers pressure control valves on our harvesting equipment for years and finally need a replacement, this the 1DS100 series spool style valve rated for 350 bar?

Answer by: Customer Support on Dec 24, 2025, 7:11 AM

Yeah, that's the one. The INT 402AA00005A is part of the Vickers by Danfoss 1DS100 Series and it's a spool style pressure control valve rated to 350 bar (5000 psi). It's built for exactly the kind of mobile equipment work you're describing, harvesters included.

Question by: Phil E on Oct 26, 2025, 1:53 PM

Can this handle continuous use in a hydraulic system on a refuse truck?

Answer by: Customer Support on Oct 27, 2025, 5:48 PM

These Vickers pressure control valves are suitable for refuse haulers, among other mobile and industrial applications, and are designed for reliable performance.
