INT 402AA00025A

Description & Features

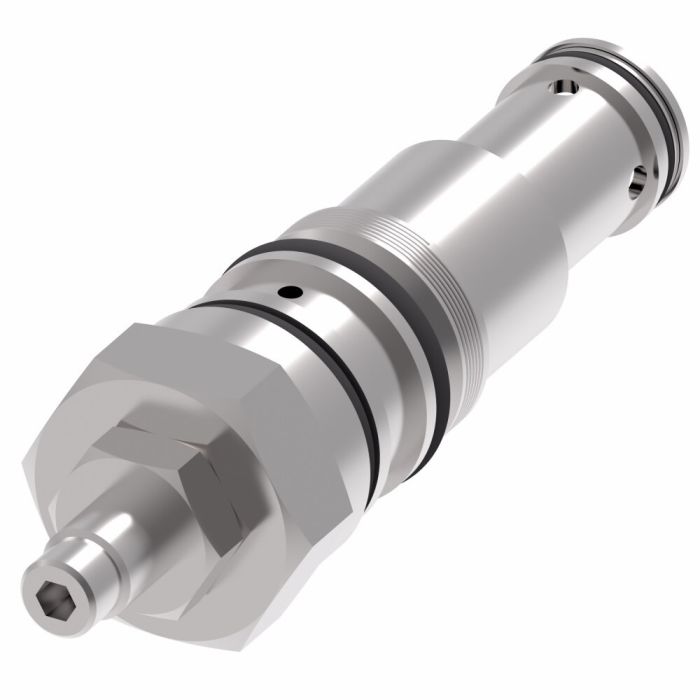

Vickers by Danfoss / Eaton 1PS200 Series Pressure Control Valves such as this one are reliable, economical and compact. With a flow rate of 250 liters per minute and a pressure rating of 350 bar (5000 psi), the INT 402AA00025A provides maximum flexibility while occupying minimum space.

These spool style valves are suitable for mobile and industrial applications, including use in harvesters and refuse haulers.

SKU: 402AA00025A

Supplier Part Number (MPN): 402AA00025ASP

Alternate Part Numbers: 1PS200P20S

Specifications

Actuator Type Pilot Operated	Adjustment Leak-Proof Screw	Cavity A16102	Dimensions 4.74 in L x 1.5 in W x 1.5 in H	Installation Type Screw-In Cartridge	Number of Ports/Ways 3-Ports	Seal Material Buna-N	Series 1PS200 Series	Softgoods Material Buna-N	Style Spool

Product Questions & Answers (1)

Question by: Travis W on Apr 23, 2025, 2:07 PM

Flow rate on this thing is listed at 250 L/min but the features mention 300 L/min too. Which one should I be going by when I'm sizing this out for my system?

Answer by: Customer Support on Apr 25, 2025, 9:21 AM

Good catch on that. The rated flow capacity for this valve is 250 liters per minute, and that's the figure to use when sizing your system. The 300 L/min reference in the features section reflects a broader series-level spec for the 1PS200 line, not the specific output of this particular unit. Stick with 250 L/min for your calculations and you'll be working with the right number.
