INT HYD 1PSC30F10S

Description & Features

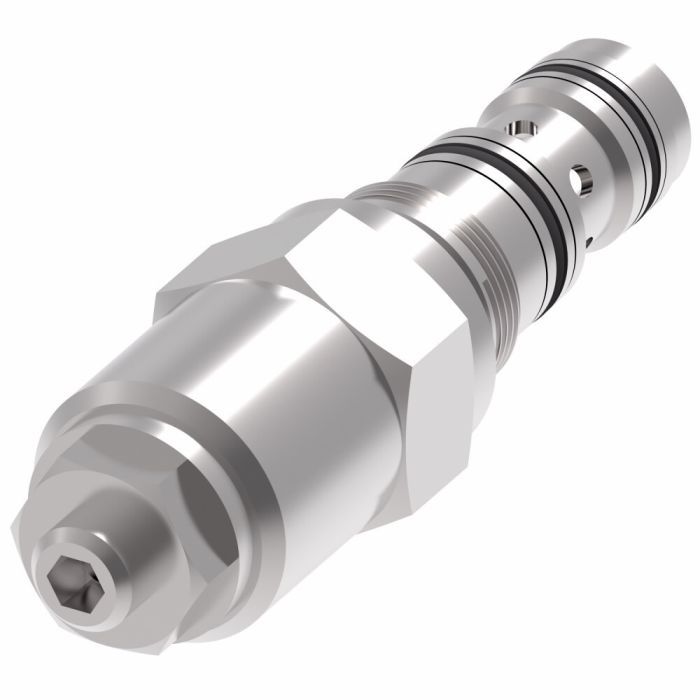

Designed for demanding mobile and industrial environments, the Vickers by Danfoss 1PSC30F10S is a spool-style pressure control valve rated to 350 bar (5,000 psi) with a flow rate of 30 litres per minute. It is part of the 1PSC30 series, which supports system flows up to 300 L/min (80 USgpm), giving specifiers flexibility across a range of circuit configurations.

Compact in footprint and built for efficient installation, this valve suits applications including harvesters, refuse haulers, and a broad range of mobile and industrial hydraulic systems. The spool construction supports reliable, consistent pressure control while minimising the space required in the hydraulic circuit.

SKU: 402AA00039A

Supplier Part Number (MPN): 402AA00039ASP

Alternate Part Numbers: 1PSC30F10S

Specifications

Actuator Type Direct Acting	Adjustment Screw	Cavity A6610	Dimensions 3.52 in L x 1 in W x 1 in H	Installation Type Screw-In Cartridge	Media Hydraulic Oil	Number of Ports/Ways 3-Ports	Seal Material Buna-N	Series 1PSC30 Series	Softgoods Material Buna-N	Style Spool

Product Questions & Answers (2)

Question by: Curt H on Oct 30, 2025, 6:20 AM

flow rate on this one says 30 L/min but I seen the series goes up to 300 -- how does that work exactly?

Answer by: Customer Support on Nov 1, 2025, 7:15 AM

The 30 L/min rating is specific to this valve unit itself, meaning that's what it handles directly. The 300 L/min figure refers to the broader 1PSC30 series capacity, which gives system designers room to configure multiple valves or larger circuits that collectively handle higher total flow. So if your circuit needs to move more than 30 L/min, you'd be looking at how this valve fits into a larger system design rather than expecting it to carry the full load on its own.

Question by: Diane P on Jun 30, 2025, 7:05 PM

Is this pressure control valve meant for heavy duty work, like on a harvester or garbage truck?

Answer by: Customer Support on Jul 2, 2025, 8:34 AM

This Vickers by Danfoss valve is designed for demanding mobile and industrial environments. Applications like harvesters and refuse haulers are definitely within its intended use, as well as other mobile and industrial hydraulic systems.
