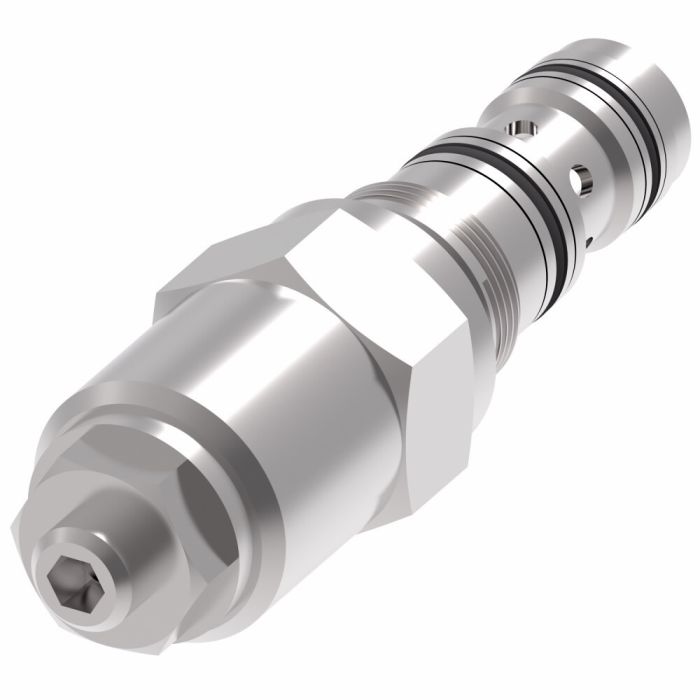

INT 1PSC30F35S

Ask A Question

Description & Features

The INT 1PSC30F35S pressure control valve from Vickers by Danfoss / Eaton offers reliable, economical, and compact performance for mobile and industrial applications, as well as use in harvesters and refuse haulers. This spool style valve provides maximum flexibility while occupying minimum space.

This pressure control valve offers a 30 litre per minute flow rate and a pressure rating of 350 bar (5000 psi).

SKU: 402AA00042A

Supplier Part Number (MPN): 402AA00042A

Specifications

Actuator Type
Screw
Dimensions
3.52 in L x 1 in W x 1 in H
Number of Ports/Ways
3
Seal Material
Buna-N
Series
1PSC30 Series
Softgoods Material
Buna-N
Special Features
1CEB30/1PSC30 Comes with Back End from XP19546-01 Leakage/Water Ingress Reduction
Style
Spool

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Dean R on Jul 14, 2025, 4:32 PM
Flow rate on this one's listed at 30 L/min, but the specs also mention 300 L/min somewhere. Which number actually applies to this valve?
Answer by: Customer Support on Jul 16, 2025, 10:53 AM
The 30 litre per minute figure is the flow rate for this specific valve. The 300 L/min and 350 bar ratings you're seeing are series-level specs that apply across the broader 1PSC30 line, not necessarily to every individual model within it. For this unit, 30 L/min is what you're working with.
