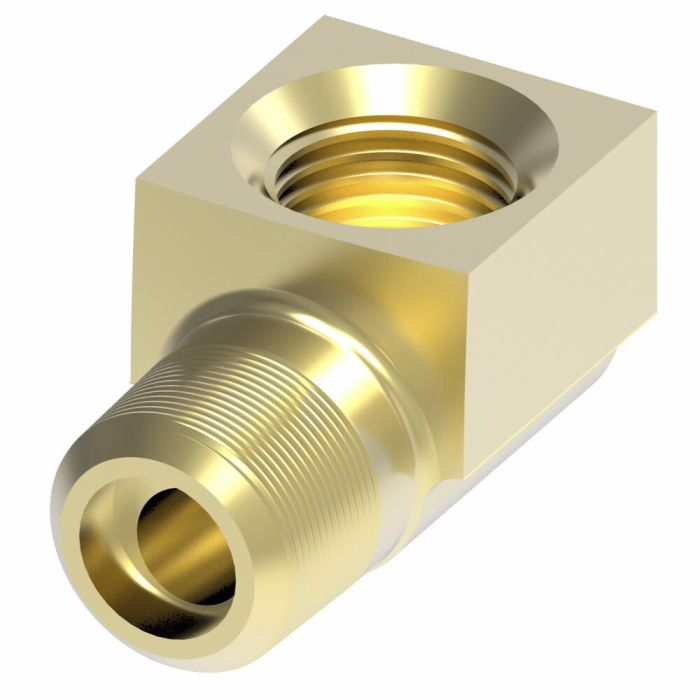

Designed for hydraulic brake, power steering, fuel line, and transmission cooler applications, this 1-inch NPTF male to 1-inch inverted flare female 90° elbow adapter provides a reliable directional connection in space-constrained installations. Constructed from brass, the 1INV.FL. X 1 MP 90 Brass is suited for use in low-pressure hydraulic and instrumentation systems, as well as natural gas lines on special order.
Manufactured under Aeroquip's product line and certified to SAE 040202, this fitting features Dura-Kote plating for corrosion resistance and is rated for operating pressures above standard SAE thresholds. The 90° elbow configuration accommodates tight routing geometries, and the broad range of compatible styles within this fitting family offers flexibility across varied system configurations. Minimum working temperature is rated at -65°F.
SKU: 402X16
Supplier Part Number (MPN): 402X16
|
Alternate Part Numbers
MINO-00015X06290
|
Application
Hydraulic brake, power
steering, fuel lines and transmission cooler lines, LP and natural gas (special order). instrumentation and hydraulic systems. |
Certifications
SAE 040202
|
Drop Dimension
1.71
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
1
|
End Type 1
NPTF
|
End Type 2
Inverted
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Inverted Female 90° Elbow Adapter
|
Language
English
|
Minimum Working Temperature
-65
|
Net Pack Quantity Units
EA
|
NMFC
60
|
Product Material
Brass
|
Product Width
1.50
|
Sub Brand
None
|
Supplier Part Number
402X16
|
Product Weight
0.84 lbs
|
