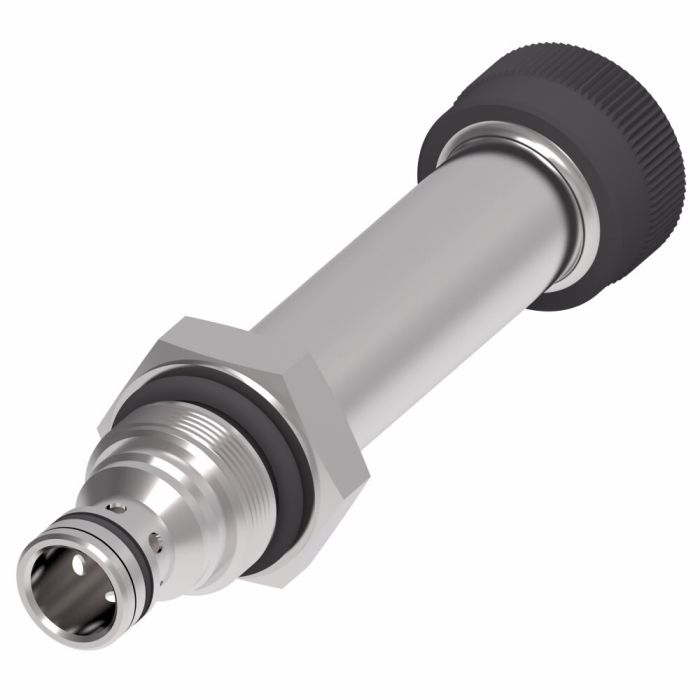

Danfoss / Eaton S207V PILOT Valve

Ask A Question

Description & Features

Configured as a 2-way, 2-position normally open pilot valve, this unit is rated for flows up to 100 litres per minute and pressures up to 350 bar (5,000 psi). Hardened and ground steel construction supports reliable performance across demanding duty cycles in both mobile and industrial hydraulic circuits.

The Danfoss / Eaton S207V Pilot Valve is part of the Vickers S207 Series solenoid valve range, designed for use in harvesters, refuse haulers, and a broad range of mobile and industrial equipment. Its compact form factor makes it well suited to installations where space is limited without compromising flow capacity or pressure handling.

SKU: 403AA00023A

Supplier Part Number (MPN): 403AA00023ASP

Specifications

Brand
Danfoss
Actuator Type
Solenoid
Body Material
Steel
Configuration
Normally Open
Connection Type
BSP
Dimensions
2.32 in L x 1.85 in W x 1.52 in H
Installation Type
Screw-In Cartridge
Nominal Size
3/8 in
Number of Handles
1
Number of Ports/Ways
2
Number of Positions
2
Number of Stages
1
Seal Material
FKM
Series
S207 Series

Product Questions & Answers (1)

Question by: Rex B on Mar 7, 2026, 9:49 AM
Running a refuse hauler and need a normally open pilot valve that can keep up with high-demand cycles. This the right unit for that kind of work?
Answer by: Customer Support on Mar 9, 2026, 6:54 AM
Refuse hauler applications are actually one of the listed uses for this valve, so you're in the right place. It handles flows up to 100 litres per minute and is rated to 350 bar, which is 5,000 psi. The hardened and ground steel construction is built to hold up through the kind of repeated duty cycles those machines put components through. Compact enough to fit into tight cab or chassis mounting locations without giving up any of that flow or pressure capacity.
