INT HYD 2CFD150-100S

Description & Features

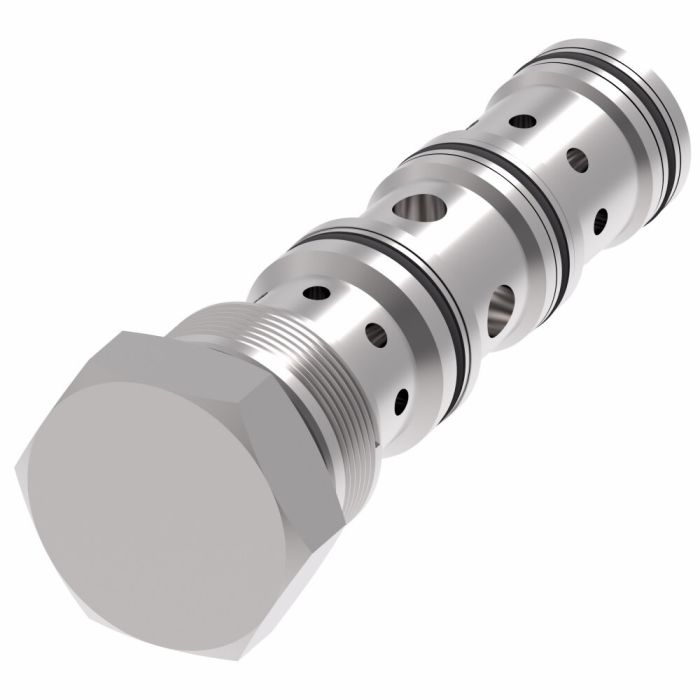

Designed for demanding mobile and industrial environments, the Vickers by Danfoss 2CFD150-100S is a spool-style flow control valve rated to 350 bar (5,000 psi) with a flow capacity of 150 litres per minute. Its compact, economical construction suits a broad range of applications including harvesters, refuse haulers, and general industrial hydraulic circuits.

Part of the 2CFD150 Series from Vickers, this valve delivers a reliable balance of pressure and flow control in a package suited to both mobile machinery and stationary industrial equipment. The spool design supports consistent performance across variable load conditions common in these applications.

SKU: 405AA00010A

Supplier Part Number (MPN): 405AA00010ASP

Alternate Part Numbers: 2CFD150-100S

Specifications

Brand Danfoss	Actuator Type No Operator	Dimensions 114.808 mm L x 38.1 mm W x 38.1 mm H	Leakage Standard	Mounting Type Cartridge	Number of Ports/Ways 4	Operator Type No Operator	Seal Material Buna-N	Seal Type Buna-N	Series 2CFD150 Series	Softgoods Material Buna-N	Style Spool

Product Questions & Answers (2)

Question by: Johnny R on Mar 21, 2026, 9:28 PM

Will this here flow control valve work on my refuse truck?

Answer by: Customer Support on Mar 23, 2026, 6:42 AM

This Vickers by Danfoss valve is suited for refuse haulers, along with other mobile and industrial applications that require reliable pressure and flow control.

Question by: Frank B on Jun 2, 2025, 7:24 AM

flow rated at 150 LPM on this one -- that hold up running refuse haulers or is that more of a light-duty number?

Answer by: Customer Support on Jun 3, 2025, 11:20 AM

150 litres per minute is a solid working flow rate for refuse hauler circuits. The valve is built for exactly that kind of application, along with harvesters and general industrial hydraulic systems, so it's not a light-duty piece by any stretch. It's also pressure-rated to 350 bar (5,000 psi), which gives you plenty of headroom for the load swings you typically see in that type of mobile equipment.
