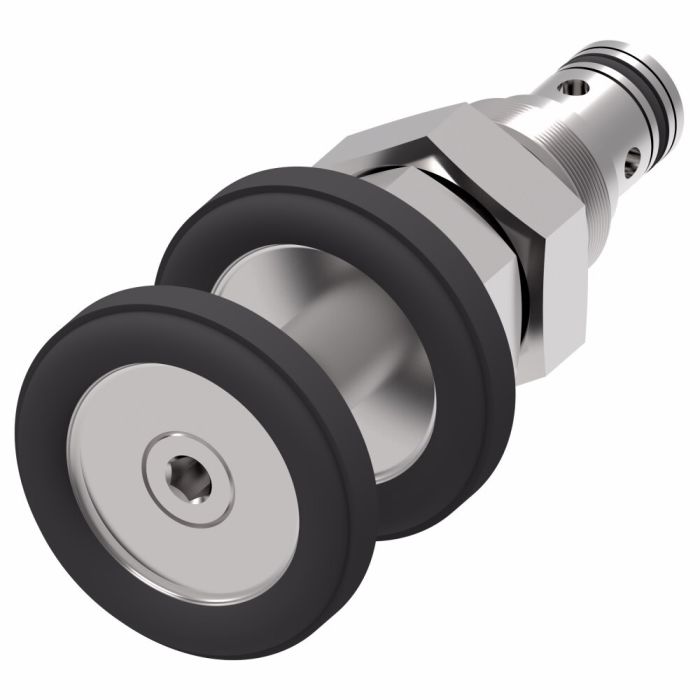

2CN20PS-A1M FINE ADJ Needle Cart

Description & Features

Designed for precise flow management in mobile and industrial hydraulic systems, the 2CN20PS-A1M FINE ADJ Needle Cart is part of the Vickers by Danfoss Power Solutions 2CN20 Series. This flow restrictor cartridge delivers a rated flow of 20 litres per minute, supported by a system pressure capability of 350 bar (5,000 psi) and a maximum flow capacity of 350 L/min (92 USgpm) across the series range.

The fine-adjustment needle design allows controlled, repeatable flow restriction, well suited to applications such as harvesters, refuse haulers, and a broad range of mobile and industrial equipment. Compact construction keeps installation space requirements low without compromising reliability or performance across demanding duty cycles.

SKU: 405AA00382A

Supplier Part Number (MPN): 405AA00382A

Specifications

Alternate Part Numbers Alternate Part Number MINO-00900X11135	Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 350 L/min (92 USgpm)\|Perfect balance of pressure and flow\|Reliable, economical and compact	Flow Rate1 20 litre per minute	ICC SICV Flow Control Valves	Language English	Product Width 1	Style Flow Restrictor	Sub Brand Vickers	Supplier Part Number 405AA00382A	Product Weight 0.26 lbs

Product Questions & Answers (2)

Question by: Eddie R on Jan 26, 2026, 3:43 PM

Flow rating on this one says 20 litres per minute, but the series goes up to 350 L/min, what's that about exactly?

Answer by: Customer Support on Jan 27, 2026, 8:59 PM

The 20 LPM figure is the rated flow for this specific cartridge in normal operating conditions. The 350 L/min number reflects the maximum flow capacity across the broader 2CN20 series, not what this particular unit is sized for. So if your circuit needs precise restriction around that 20 LPM range, this is the right fit. If you're moving significantly more fluid than that through a single point of control, you'd be looking at a different cartridge within the series.

Question by: Troy G on May 10, 2025, 7:09 PM

Will this here needle valve work okay on a harvester?

Answer by: Customer Support on May 12, 2025, 6:04 AM

Its fine-adjustment needle design allows controlled, repeatable flow restriction, which is well suited to applications like harvesters, refuse haulers, and a broad range of mobile and industrial equipment.
