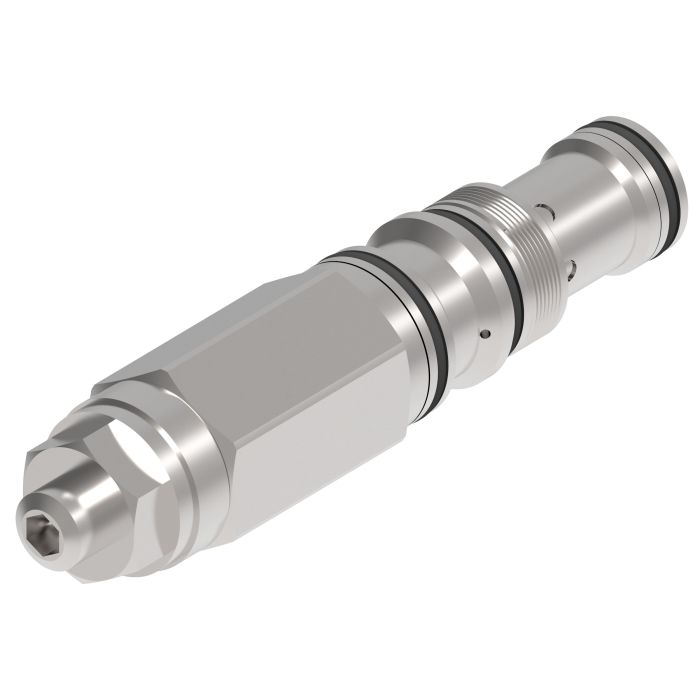

Danfoss / Eaton Integrated Hydraulics 1SE30F35S2

Description & Features

This Vickers by Danfoss / Eaton 1SE30 Series motion control valve is suitable for mobile and industrial applications, including use in harvesters and refuse haulers.

The Danfoss / Eaton Integrated Hydraulics 1SE30F35S2 features excellent stability for moving loads and is ISO8643 compliant. This pilot-assisted relief valve with check can handle pressures up to 350 bar (5000 psi) and flow rates up to 550 L/min (143 USgpm).

SKU: 406AA00048A

Supplier Part Number (MPN): 406AA00048A

Alternate Part Numbers: 1SE30F35S2

Specifications

Actuator Type Pilot Operated	Adjustment Screw	Body Material Steel	Dimensions 4.57 in L x 0.99 in W x 0.99 in H	Installation Type Screw-In Cartridge	Media Hydraulic Oil	Number of Ports/Ways 3	Seal Material Buna-N	Series 1SE30 Series	Style Pilot Assisted Relief with Check

Product Questions & Answers (1)

Question by: Keith W on Apr 20, 2025, 3:37 PM

Got a harvester that's been giving us grief with load drift on the header lift circuit. Would this 1SE30F35S2 be the right kind of valve to address that?

Answer by: Customer Support on Apr 22, 2025, 6:57 AM

Load drift on a header lift is exactly the kind of problem a motion control valve like this one is built to handle. The 1SE30F35S2 is a pilot-assisted relief valve with an integrated check, and that combination is what gives it the load-holding stability it's known for. It's listed specifically for harvester applications, so the use case lines up well. Rated to 350 bar (5000 psi) and up to 550 L/min, it's got plenty of headroom for most header lift circuits without being squeezed on performance.
