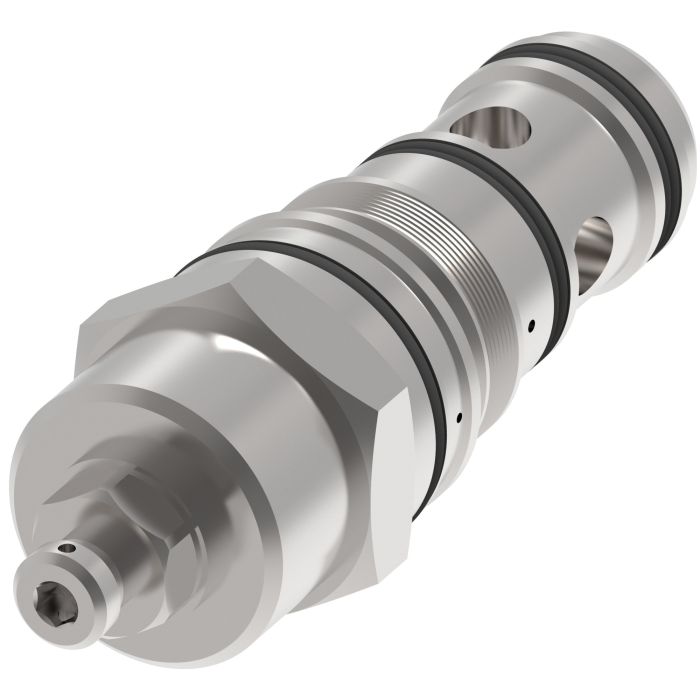

VICKERS-1CPBD120-F-2P-SP115

Ask A Question

Description & Features

Designed for demanding mobile and industrial applications, the Vickers 1CPBD120-F-2P-SP115 is a pilot-assisted relief with check motion control valve rated to 350 bar (5,000 psi) with a flow rate of 180 litres per minute. It is well-suited for use in harvesters, refuse haulers, and a broad range of mobile equipment where controlled load handling is required.

Compliance with ISO 8643 confirms this valve meets recognized standards for motion control in hydraulic systems. Its pilot-assisted design provides excellent stability when managing moving loads, making it a reliable choice where load-holding precision is critical. The 1CPBD120 series is rated to support flows up to 550 L/min (143 USgpm) across the broader product range, with this specific configuration sized at 180 L/min.

SKU: 406AA00269A

Supplier Part Number (MPN): 406AA00269ASP

Specifications

Brand
Vickers by Danfoss
Domestic/Import
Import
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
3-Port
Seal Material
Polyurethane
Segment Code
C
Series
1CPBD120 Series
Style
Pilot Assisted Relief with Check

Product Questions & Answers (2)

Question by: Wes F on Mar 27, 2026, 8:32 PM
If I'm running this valve at its max flow rate of 180 liters per minute, should I expect any performance drop-off over time?
Answer by: Customer Support on Mar 29, 2026, 6:53 AM
Designed for demanding mobile and industrial tasks, the Vickers 1CPBD120-F-2P-SP115 pilot-assisted relief valve is made to hold up well under its rated flow of 180 lpm, so you shouldn't see a performance drop-off if your system is set up correctly and maintained.
Question by: Neil W on Mar 18, 2026, 10:09 AM
Got a harvester that's been giving us fits with load drift on the boom circuit. Would the 1CPBD120-F-2P-SP115 be a reasonable fix for that kind of issue?
Answer by: Customer Support on Mar 19, 2026, 2:35 PM
Load drift on boom circuits is exactly the kind of problem this valve is built to address. The pilot-assisted relief with check design holds loads in place and controls movement without the instability you get from simpler relief valves. It's ISO 8643 compliant, which is the recognized standard for motion control in hydraulic systems, so it's rated for that duty in harvester applications specifically. At 180 litres per minute flow rate and a 350 bar pressure rating, it has plenty of capacity for typical boom circuit demands.
