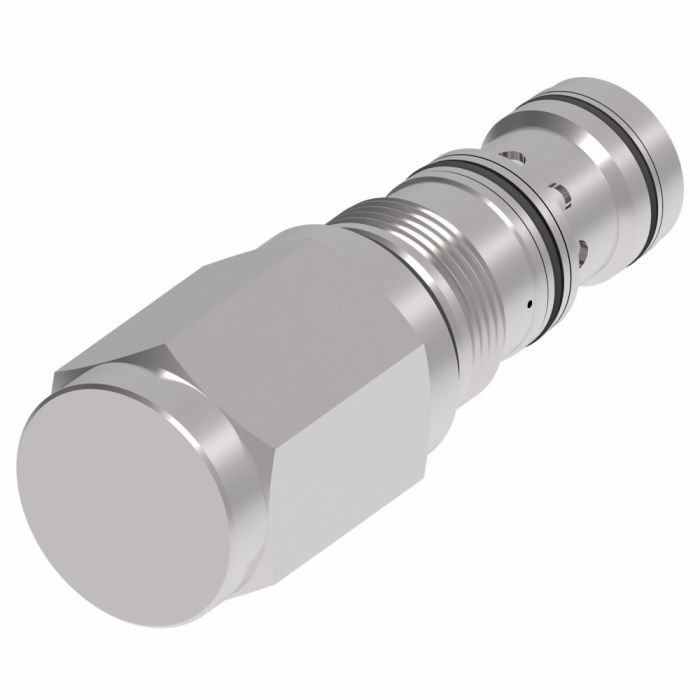

Danfoss / Eaton Integrated Hydraulics 1CE90N27S3

Description & Features

Designed for demanding mobile and industrial environments, the Danfoss / Eaton Integrated Hydraulics 1CE90N27S3 is a pilot-assisted relief valve with check, part of the Vickers 1CE90 Series of SICV Motion Control Valves. It is rated for flow up to 90 litres per minute and supports system pressures up to 350 bar (5,000 psi), with a maximum flow capacity of 550 L/min (143 USgpm) across the series.

Compliant with ISO 8643, this valve is well-suited for use in harvesters, refuse haulers, and a range of mobile and industrial applications where stable load control is a priority. The pilot-assisted relief and check configuration supports reliable performance when managing moving loads under variable conditions.

SKU: 406AA00796A

Supplier Part Number (MPN): 406AA00796A

Specifications

Alternate Part Numbers Alternate Part Number MINO-00569X03323	Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 550 L/min (143 USgpm)\|Excellent stability for moving loads\|ISO8643 Compliant	Flow Rate1 90 litre per minute	ICC SICV Motion Control Valves	Language English	Net Pack Quantity Units EA	Port Size None	Product Width 1.26	Special Features None	Style Pilot assisted relief with check	Sub Brand Vickers	Supplier Part Number 406AA00796A	Product Weight 0.63 lbs

Product Questions & Answers (2)

Question by: Vince A on Aug 25, 2025, 9:25 AM

valve's rated up to 90 L/min but I see 550 L/min mentioned too -- which number actually applies to my setup?

Answer by: Customer Support on Aug 27, 2025, 6:38 AM

Those two numbers cover different things. The 90 litres per minute rating is specific to this valve, the 1CE90N27S3, and reflects its individual flow capacity. The 550 L/min figure is a series-wide maximum across the full 1CE90 lineup, not a rating for this particular unit. So when you're sizing this for your system, 90 L/min is the number to work with.

Question by: Shane H on Jun 1, 2025, 4:54 PM

So this thing handles up to 90 liters a minute, but what's the max pressure it can take? Just wanna make sure I'm not gonna blow it.

Answer by: Customer Support on Jun 3, 2025, 11:02 AM

This pilot-assisted relief valve with check is rated up to 350 bar, which is about 5,000 psi. Just keep your system pressure at or below that level, and you should be good to go.
