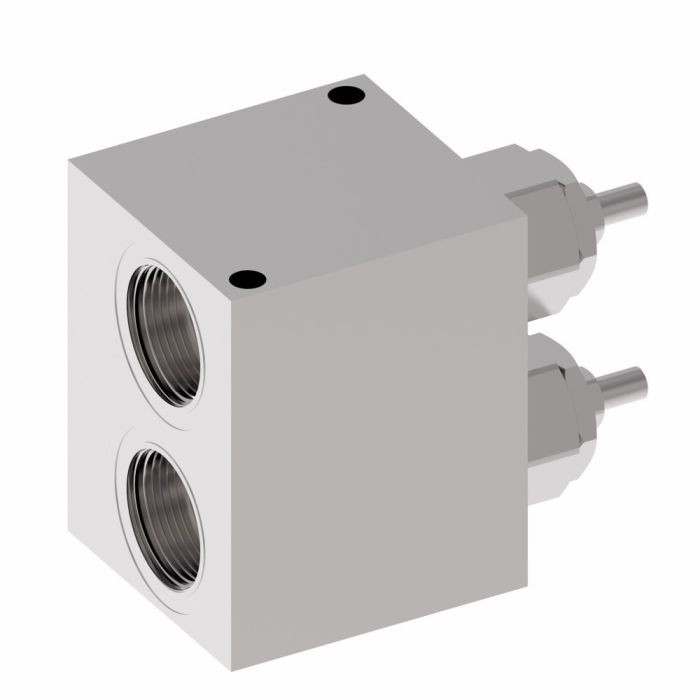

main product photo

DANFOSS / EATON 1CEE350F20T35S8

Ask A Question

Description & Features

Designed for demanding mobile and industrial environments, the Danfoss / Eaton 1CEE350F20T35S8 is a pilot-assisted relief valve with check, belonging to the Vickers 1CE300 Series of motion control valves. Rated to 350 bar (5,000 psi) with a flow capacity of 550 L/min (143 USgpm), it is well-suited to high-pressure hydraulic circuits found in harvesters, refuse haulers, and a broad range of mobile equipment.

The valve delivers excellent stability when managing moving loads, making it a reliable choice for motion control applications where load-induced pressure fluctuations must be managed consistently. A 1-1/4 inch port size and ISO 8643 compliance support straightforward integration into standard hydraulic circuits. The unit is classified under Danfoss Power Solutions' SICV Motion Control Valve range and carries the Vickers sub-brand designation.

SKU: 406AA01286A

Supplier Part Number (MPN): 406AA01286A

Specifications

Actuator Type
Pilot Operated
Adjustment
Screw
Body Material
Steel
Connection Type
BSP
Dimensions
5 in L x 3.82 in W x 6.08 in H
Installation Type
Screw-In Cartridge
Media
Hydraulic Oil
Number of Ports/Ways
3
Seal Material
Buna-N
Series
1CE350 Series
Style
Pilot Assisted Relief with Check

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Billy H on Feb 9, 2026, 1:20 PM
got a harvester sittin idle cause the old relief valve went out, will this 1CEE350F20T35S8 handle the pressure ratings we been running at 5000 psi?
Answer by: Customer Support on Feb 10, 2026, 1:23 PM
At 5,000 psi (350 bar), that rating lines up exactly with what this valve is built for. Harvesters are actually one of the listed applications for this unit, so you're in the right territory. The 1-1/4 inch port size and ISO 8643 compliance also help make the swap reasonably straightforward when fitting it into a standard hydraulic circuit.
Question by: Phil B on Sep 19, 2025, 9:41 PM
What size ports does this valve use? Gotta make sure it matches up.
Answer by: Customer Support on Sep 21, 2025, 6:19 PM
It uses a 1-1/4 inch port size, compliant with ISO 8643 standards, so it should integrate easily into standard hydraulic setups.
