VICKERS-1CEB30-F-35S-5-SP250BAR

Ask A Question

Description & Features

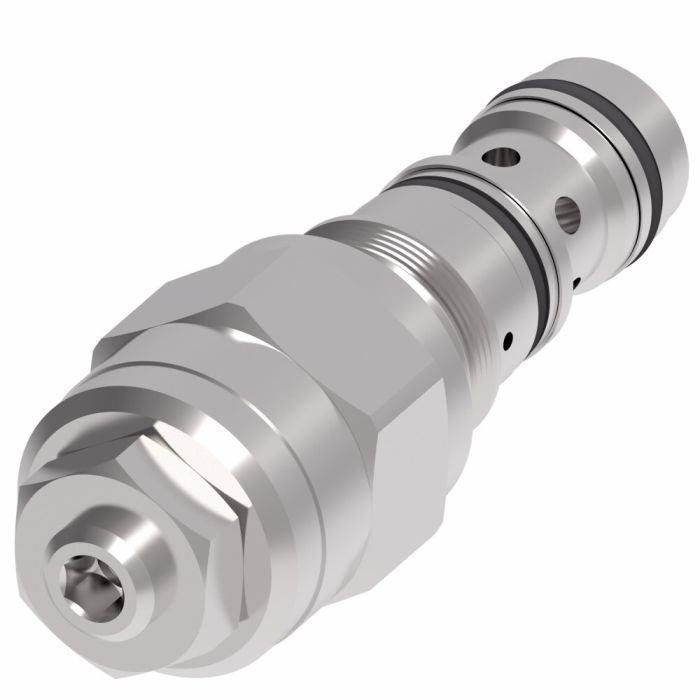

This Vickers 1CEB30 series motion control valve is designed for demanding applications in mobile and industrial hydraulic systems, including use in harvesters and refuse haulers. The pilot-assisted relief valve features a check valve and offers excellent stability for moving loads.

This VICKERS-1CEB30-F-35S-5-SP250BAR valve is rated to 350 bar (5000 psi) and 550 L/min (143 USgpm) and is ISO8643 compliant. Flow rate is 30 liters per minute and product width is 1.25 inches.

SKU: 406AA03119A

Supplier Part Number (MPN): 406AA03119A

Specifications

Brand
Danfoss
Actuator Type
Pilot Operated
Adjustment Type
Screw
Body Material
Aluminum
Cavity
A6610
Dimensions
3.52 in L x 1.25 in W x 1.25 in H
Housing
Without Housing
Installation Type
Screw-In Cartridge
Language
English
Number of Ports/Ways
3-Port
Pilot Ratio
5:1
Port Type
Cartridge
Seal Material
Nitrile
Series
1CEB30 Series
Style
Pilot Assisted Relief with Check

Product Questions & Answers (2)

Question by: Kurt G on Oct 5, 2025, 8:46 PM
Reckon this valve can handle a steady workload on a refuse truck hydraulic system?
Answer by: Customer Support on Oct 7, 2025, 2:37 PM
This Vickers motion control valve is designed to hold up in demanding mobile and industrial applications, including refuse haulers.
Question by: Travis P on Mar 25, 2026, 9:46 PM
valve's rated to 350 bar but what's the actual flow it'll handle before things start getting squirrely on a refuse hauler application?
Answer by: Customer Support on Mar 27, 2026, 8:20 AM
Rated capacity on this one is 550 liters per minute, which works out to 143 US gallons per minute. The nominal flow rate for the valve itself is 30 liters per minute. For refuse hauler duty, that combination of pilot-assisted relief and built-in check valve is what keeps load movement stable under pressure swings, so you've got solid footing for that kind of application right out of the box.
